Icesta 60 Ton Industrial Containerized Ice Flake Making Machine compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.Brother Ice System summarizes the defects of past products, and continuously improves them. The specifications of Icesta 60 Ton Industrial Containerized Ice Flake Making Machine can be customized according to your needs.
1.Fastest melting time of Flake Ice compared to any other ice.
2.Shortest mixing time as Flake Ice melts Rapidly
3. Longer lifespan of the Batch plant equipment and cost saving due to short mixing time
4.The cooling energy is 100%e or Even Higher as the flake ice is Subcooled (-7 degrees)
5. Due to the dryness, the cooling input of flake ice can be accurately calculated and itseffects on the mixture’s temp is quickly apparent
6.Flakes remain crisp and do not stick together nor do they form Blocks
7.Flakes are free Flowing
8. Easy to be Stored leveled inside a refrigerated lce Rake System
9.Easy to Transport via screw conveyors or Blowing System
l0.No defrost losses as subcooled flake ice is sheared from freezing surface by the iceremoval tools
ICESTA Auto lce Storage Room
1 .Mobile type, starting from 20 metric tons up to 100 metric tons
2.Robust steel used for the ice rake assembly and Ice Rake Hoist System
3.Reliable Sensors and Limit Switches to control the movement of Auto Ice Storage Room Automatically
4.Efficient Air cooler to keep the room temp down to -l0 degrees
5.100- 150 mm thickness Pancls keep the cold inside the room
ICESTA lce Discharge Auger and Delivery Auger
1.Robust design suitable for severe working conditions
2.Single and Dual Screw Design, with a designed delivery rate of 25-40T per Hour
3.Renowned Gearbox with Motor ensures the high quality of ICESTA Brand.
4.Single or Dual lce outlet for one or two ice outlet, which can deliverice at sametime to twin batch plants.
5.Stainless material or Galvanized Steel optional.
ICESTA Smart lce Dose System
1.Robust design suitable for severe working conditions
2.Ice Hopper volume up to 500KG
3.Renowned Gearbox with Motor ensures the high quality of ICESTA Brand:; 4.Accurate lce Scale system
5.Stainless material or Galvanized Steel optional
ICESTA ICE/COLD WATER PLANT
2. Multi-stage cooling from +45℃ down to less than 1℃ by 2 semihermetic screw/reciprocating compressors with economizer performance.
3.Plate heater exchanger as evaporators (corrosion-free) for high-efficiency heat transfer.
4.Stainless Ice tank (corrosion-free) for the ice bank system.
5.Evaporative condensers (corrosion-fee) for High efficiency heat rejection.
6.With our special designed multi-stage cooling system for fresh water cooling of concrete batching plants extraordinary high COP’ s can be achieved;
| Ice Watet Piant | IWP110T | IWP130T | IWP150T | IWP180T | IWP200T | IWP250T | IWP270T | IWP320T | IWP400T | IWP432T | |
| Max Concrete Production | M³/Day | 700 | 800 | 930 | 1100 | 1340 | 1530 | 1680 | 2000 | 2450 | 2690 |
| Ice Water Production | M³/Day | 110 | 130 | 150 | 180 | 200 | 250 | 270 | 320 | 400 | 432 |
| Total Water Flow | M³/H | 4.6 | 5.4 | 6.25 | 7.5 | 8.3 | 10.4 | 12.25 | 13.4 | 16.7 | 18 |
| Recommended Storage Capacity of Water Tank | M³ | 50 | 60 | 90 | 100 | 100 | 120 | 130 | 150 | 200 | 220 |
| Installed Ref. Power | KW | 240 | 280 | 320 | 380 | 460 | 525 | 575 | 715 | 834 | 920 |
| Electric Pawer Consumption | KW | 63 | 70 | 82 | 95 | 100 | 130 | 145 | 178 | 215 | 235 |
| Cold Watet Piant | CWP110T | CWP130T | CWP150T | CWP180T | CWP200T | CWP250T | CWP270T | CWP320T | CWP400T | CWP432T | |
| Max Concrete Production | M³/Day | 700 | 800 | 930 | 1100 | 1340 | 1530 | 1680 | 2000 | 2450 | 2690 |
| Ice Water Production | M³/Day | 110 | 130 | 150 | 180 | 200 | 250 | 270 | 320 | 400 | 432 |
| Total Water Flow | M³/H | 4.6 | 5.4 | 6.25 | 7.5 | 8.3 | 10.4 | 12.25 | 13.4 | 16.7 | 18 |
| Recommended Storage Capacity of Water Tank | M³ | 50 | 60 | 90 | 100 | 100 | 120 | 130 | 150 | 200 | 220 |
| Installed Ref. Power | KW | 198 | 234 | 270 | 324 | 360 | 450 | 485 | 576 | 720 | 780 |
| Electric Pawer Consumption | KW | 51 | 58 | 68 | 75 | 85 | 110 | 130 | 170 | 190 | 200 |
Application Industry
More and more Coling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.
Auxiliary Equipment
Fully automatic system "storage" and "ice delivery" integration project
Engineering Case
Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions.
Picture Display
Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful
Product Hot Sale

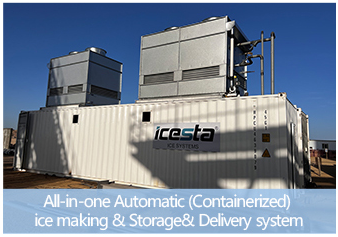

All-in-one Automatic (Containerized) ice making & Storage& Delivery system
ICESTA
20 years dedication in ice making technology to create excellence.

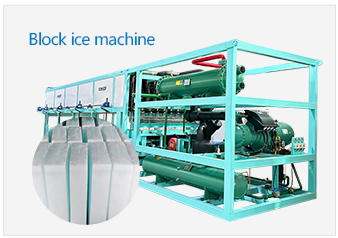

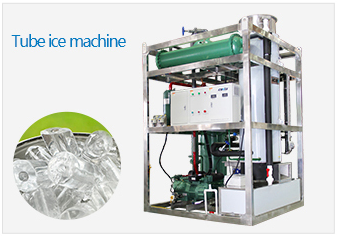

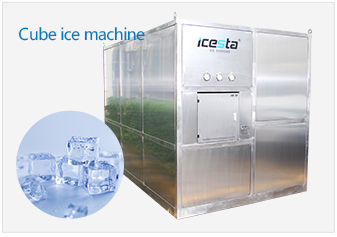

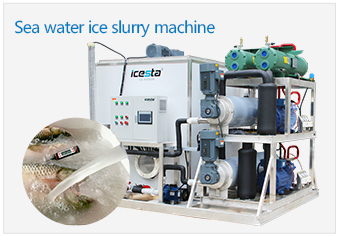

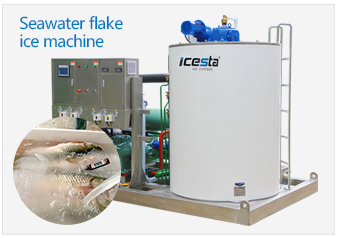

Shenzhen Brother Ice System Co., Ltd. ( ICESTA Brand), a well-known ice machine manufacturer and industry leader and pioneer in China.The product covers flake ice /Block ice machine, Tube ice /slurry ice/plate ice/cube ice machines, water
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc
Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
17-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.
Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc
Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate
Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.
