It is designed in full compliance with the dual standards of Europe CE and North American ASME.

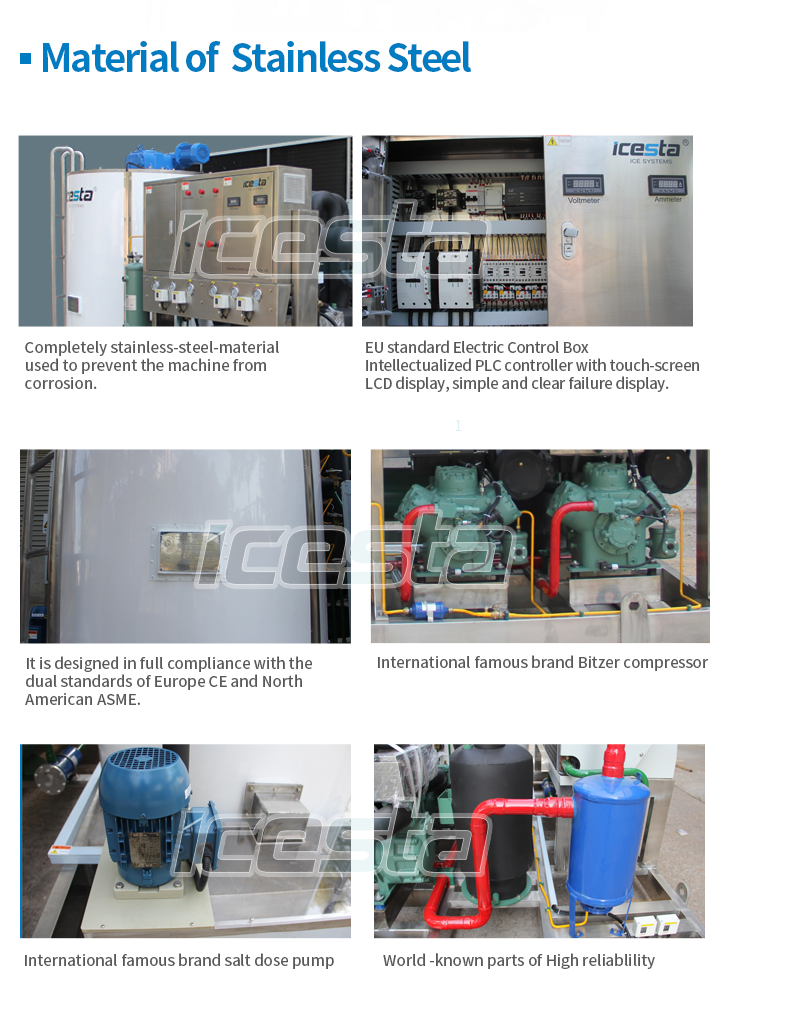

Inner surface:Stainless steel (High reliability for anti-corrosion even feeding seawater for ice making)
The stainless steel ice scraper formed without weld. Even by long-time scraping, the scrapper keep still obdurability, and the ice dropped is sizable with nearly no powder.
The ICESTA seawater type flake ice machines special design and completely stainless-steel-material used to prevent the machine from corrosion.
World -known parts of High reliablility.
Condenser are made of copper-nickel Alloy material,anti-corrosive inner lining. International famous brand compressor.
EU standard electric control box & intellectualized PLC controller with touch-screen
With LCD display, simple and clear failure display.
Flake ice smoothly cutting down after only 1 minute running.
Clean,hard and beautiful Flake ice ,-5℃ - -8℃ temp.
Sufficient ice output.

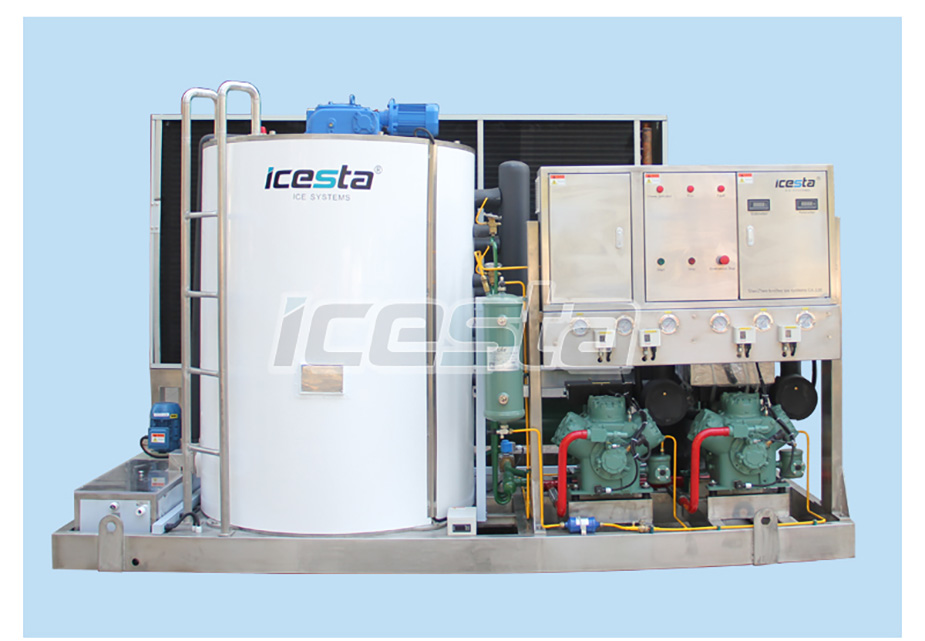

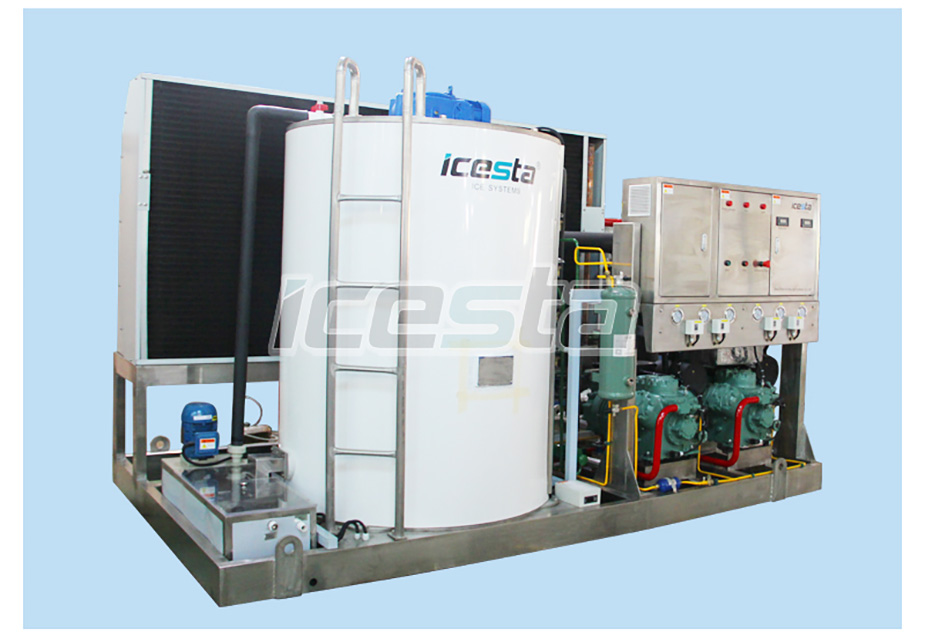

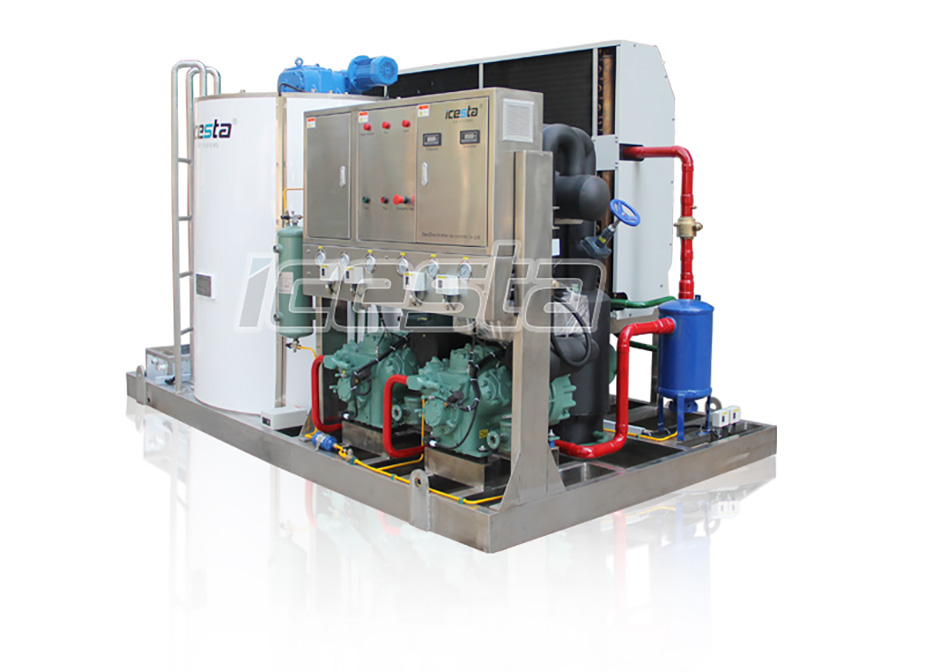

SEAWATER FLAKE ICE MACHINE(land-based)
316L/304 Stainless steel ice flaker Drum(evaporator), Condenser is of Copper-nickel Alloy, High Anti-corrosive Standard.
Product introduction
The ICESTA customized seawater flake ice machine for land use, its special design and completely stainless-steel-material used to prevent the machine from corrosion and get easy ice cutting.
The low-temperature seawater and salinity, makes the ice at an excellent ice degree, to give better fresh keeping for the fish.
Application industry
More and more Coling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.

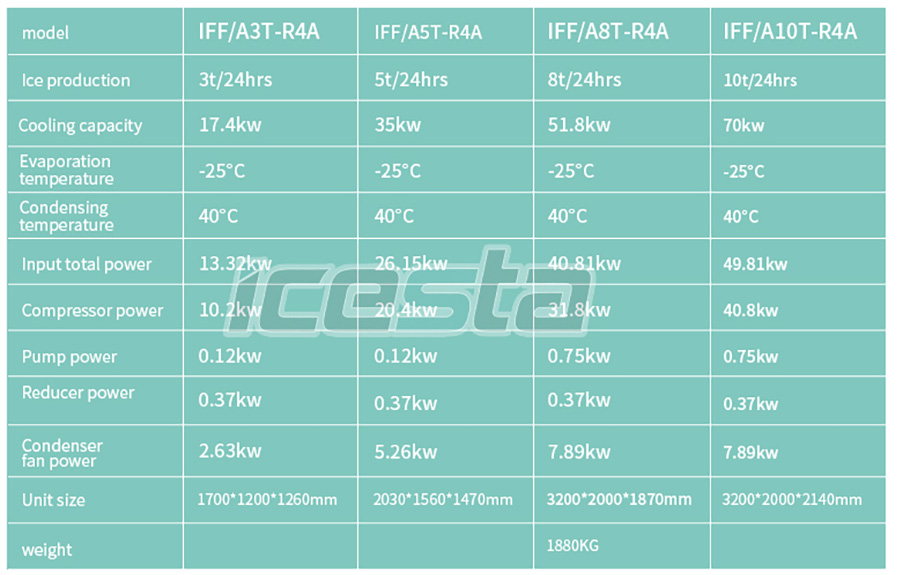

Technical Parameters
*The technical data based on 25°C ambient temp.20°C water inlet temp
* Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional
* The ice thickness：1.6-2.3mm.
* Refrigerant: R404A(R22 R17 R507 is optional).
Show details
Advantages/special design for ice flaker on board use
Material of evaporator:
External surface: Glass fiber steel (never getting rust).
Inner surface : 316L Stainless steel.
(High reliability for anti-corrosion even feeding seawater for ice making).
Supporting base: 304 Stainless steel.
Top/bottom cover of ice flake evaporator : 304 Stainless steel.
Special ice scraping system for seawater ice flaker drum. (To deal with the soft ice )
All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

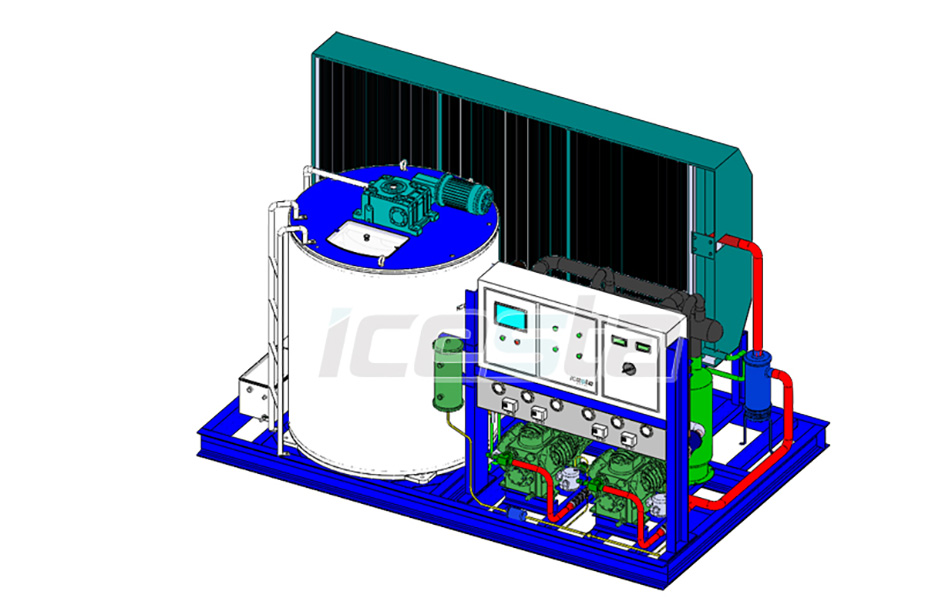

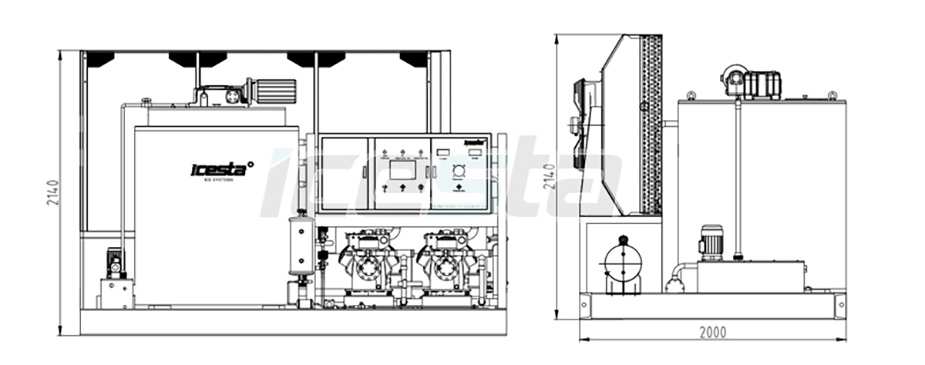

Drawing disply
The ICESTA team has used more than 20years of experience in refrigeration and ice makingto continuously innovate productsto achieve higher efficiency,more stable operation,smootherice removal and ice production.
Advantage
1.Rigorous pick-up of raw material. Not every kind of Stainless Steel is the same in terms quality on the market. When we choose stainless steel, we use the material of high quality with Qualified Material Certificate only.
2.Compared to Carbon Steel, stainless steel evaporator and top/bottom covers requires a high criterion in the processes of welding, machining and Annealing. Coarse machining may make the machine prone to deformation and short life time. ICESTA fine and meticulous craftsmanship and innovative design makes our stainless steel evaporator endure.
All failure record & instant solution available
Stop-time setting at will.
different languages versionTOP welding testing technics with X-RAY——Never leak
Elaborate details design gives all-sided convenience
Remote small touch-screen control(Human-machine interactive touch screen control system)
Sufficient ice output

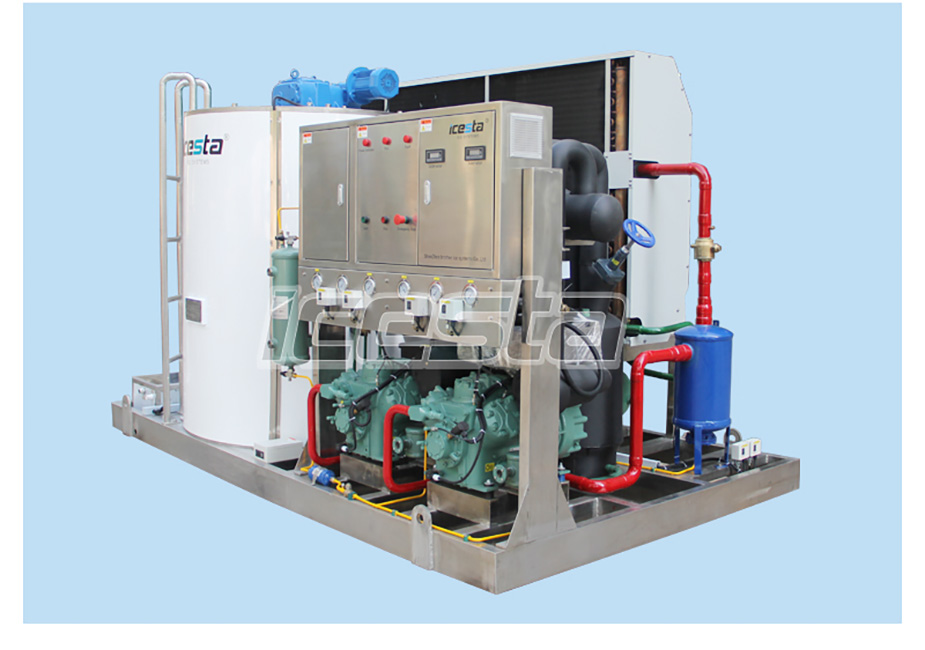

Picture Display
Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful
Engineering Case
Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions
Product Hot Sale
Sea water flake ice machine
All-in-one Automatic (Containerized) ice making & Storage& Delivery system
FAQ
1.Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.b. Relevant pictures are required for failure confirmation.c. ICESTA engineering and after-sales service team will check and form a diagnosis report.d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
2.Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.B. Installed by ICESTA engineers.a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all installations and commissioning.b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars 100 per engineer per day.c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.
3.Questions before quotation
A. Would you make ice from seawater, saltwater or freshwater?B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?C. What’s the power supply?D. What is the application of the flake ice produced?E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?
Advantages
1.ICESTA provide full technical support and training courses after equipment installation and commissioning.
2.Permanent technical support & consultation all life long for the machines.
3.Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
4.Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.365 days X 7 X 24 hours phone / EMAIL assistance
