Ice tube machine Plant Industrial 1 5 10 30 tons Icesta sale factory Price Crystal Cylinder ice machine for philippines

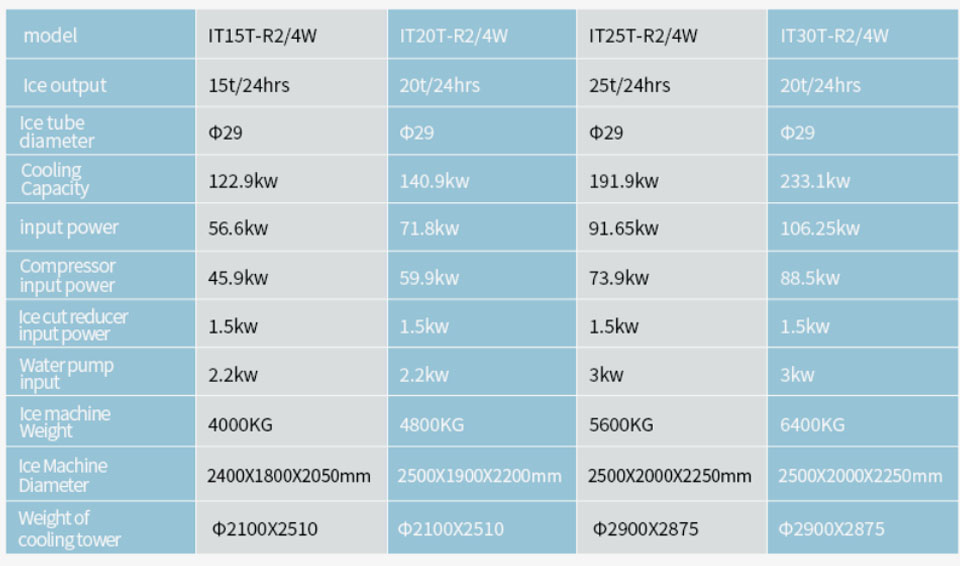

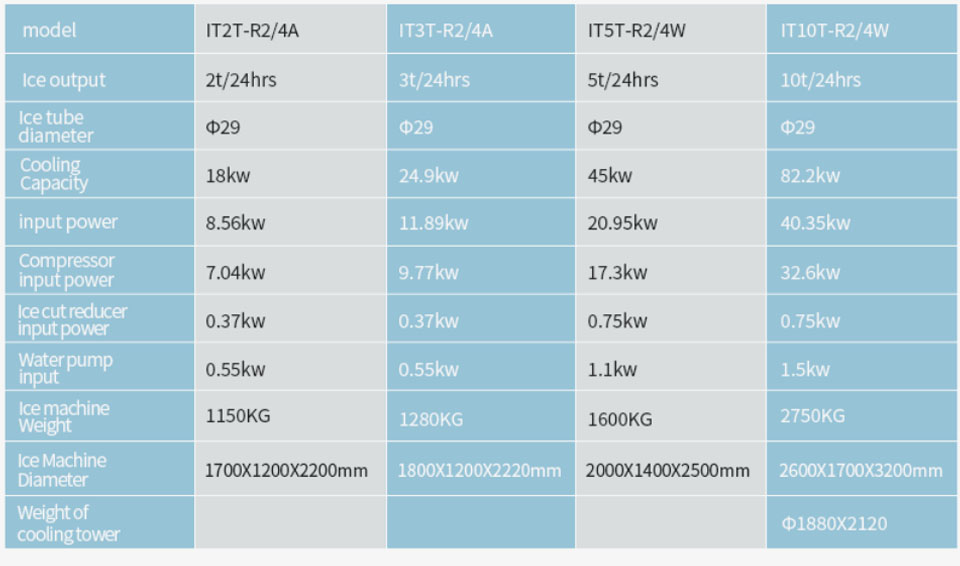

Technical Parameters

* The technical data based on 30°Cambient temp.20°Cwater inlet temp.
* The evaporating / condensing temp.:-15C/40°C(Air-coole) 38°C(Water cooled)
* Power supply: 3P/380V/50HZ(3P/220/60HZ,3P/380V/60HZ,3P/460V/60HZ Optional)
* Refrigerant: R404A(R22 R17 R507 is optional)
* Ice tube diameter: Φ22,Φ29,Φ35,Φ42 is optional



  2t，3t，5t，10t/24h



 15t，20t，25t，30t/24h

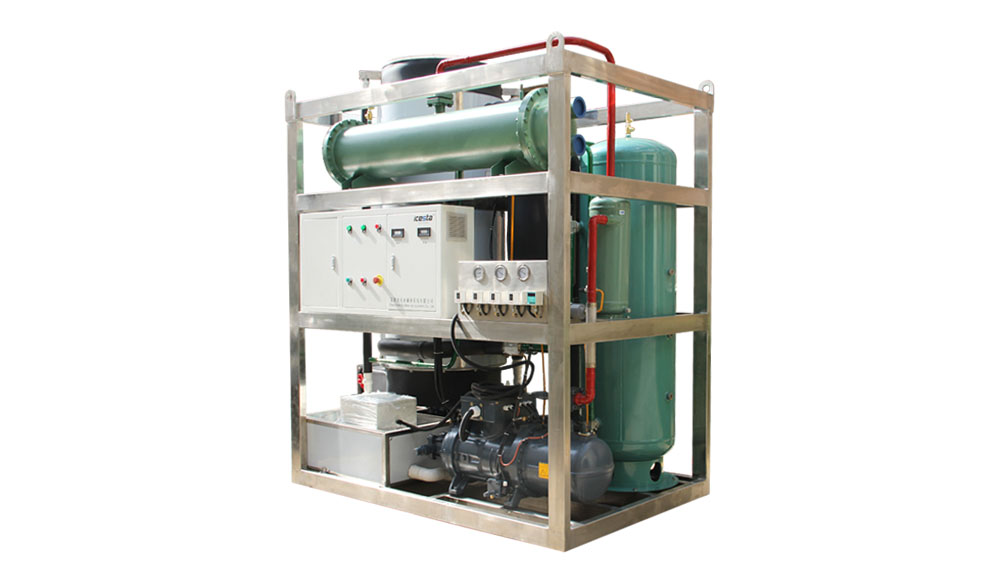

Picture Display

Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful

Application Industry

ICESTA is providing the world Excellent Tube ice solutions with high ice output, reliable performance and humanization design.

Drawing Display

The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.

Advantage

ADVANTAGES OF ICESTA TUBE ICE PLANTINNOVATIVE DESIGN FOR GENERATOR

1.  Innovative manufacturing artwork has been adopted.The lce stripping surface is smooth as a mirror. That has tremendouslyincreased ice stripping efficiency and energy-efficiency ratio.
2.  The ice cutter can be easily dismantled and replaced as a whole.
3.  Compared with peers,ICESTA evaporator can form even water membrane more effectively.That makes more even and crystal ice tubes
4.   The upper and lower freezing water reservoir is openly structured, which helps a lot withcleaning and disinfection.
5.   ICESTA ice plant adopts an optimized driving structural design, which ensures both simplestructure and high reliability.
6.   ICESTA customizes a reasonable design of ice plant suitable for convenient containertransportation for oversea clients.
7.  Deice just need 130-200s.

PATENTED H-M INTERACTIVE INTELLIGENTCONTROL SYSTEM WITH TOUCH-SCREEN:

1.The working status of the ice system display alive in screen.
2.Setting stop-time at will.
3. All possible failure and trouble-shooting is programmed in.
4.Local time could be set.

Show Details

All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

3D diagram display of tube ice machine and office building layout plan

Auxiliary Equipment

Optimal industrial application: lce packing

Components:

1.Buffer Storage Bin (ranging from 50OKG to 2000KG)
2.Built-in delivery screw
2.Built-in delivery screw
3.Dual control system (Manual and foot pedal); Foot pedal can start and stop at will, which is nearly a semi automatic packing machine.

PACKAGE UNIT OF TUBE ICE MAKING, DELIVERING, PACKING,ICE BAGS CONVEYING.

Customer-Oriented design.Our consideration and,innovation reach everywhere.

Engineering Case

30ton ice tube machine with ice dispenser (semi-automatic ice packing machine.)/ Philippines.

Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions.

Product Hot Sale

Flake ice machine

Ice delivery system

Ice slurry machine

Block ice machine

Cube ice machine

All-in-one Automatic (Containerized) ice making & Storage& Delivery system

ICESTA

 20 years dedication in ice making technology to create excellence.

Shenzhen Brother Ice Maker System Co., Ltd. (hereinafter referred to as ICESTA), as a well-known ice-making equipment manufacturer and industry pioneer, since its establishment in 2007, it is committed to providing excellent "Made in China". Technological innovation and forge ahead, continuous expansion of product lines, continuous upgrades of products, and annual expansion of the factory.


There are more than 150 people in Shenzhen and Dongguan R&D, manufacturing, and sales bases, as well as production, management, and domestic and overseas technical teams. The annual output value is up to More than 120 million yuan; two branch companies were established: Shenzhen Brother Cold Chain Technology Co., Ltd., Liaoning Sports Sports Technology Co., Ltd.; three major brands: including ICESTA series of flake ice machines, block ice machines, tube ice machines, and ice slurry Machines, ice pellet machines, integrated ice storage and delivery container ice making systems, consumer and commercial ice machines, Brother series snow blowers, snow machines, Snowtek series block ice machine chillers, etc., have covered all mainstream ice in the world today It also expands to the field of cold chain equipment, such as chillers, freezers, cold storage equipment, etc., and at the same time provides various medium and low temperature refrigeration units for global industrial and commercial refrigeration equipment and engineering companies, so as to provide users with the most convenient and comprehensive use Ice and refrigeration solutions.


ICESTA's branded ice making equipment, with daily output ranging from 25Kg to 100 tons, is widely used in supermarkets, catering hotels, aquatic products and meat processing, poultry slaughter, leather manufacturing, chemical dyes, concrete construction, ocean fishing, artificial ski resorts, etc. industry. So far, ICESTA has obtained more than 40 national new patents, and has passed the European Union CE safety standards and PED pressure vessel certification, American AMSE certification, ISO9001 quality management system certification, national high-tech enterprise certification, etc., serving more than 80 customers worldwide Countries and regions.
