5 tons plate ice machine Manufacturer Quality Icesta | Brother Ice System
Icesta plate ice is an irregular plate-shaped ice . It is a transparent crystal and is not easy to melt. The surface is small, dry, powder-free, and has a long cooling time. The size of the sheet is about 40×40mm to 80×80mm, which can be adjusted according to the needs of customers. The thickness is about 8-10mm, and the thickness of the slab ice can be adjusted through the ice making time. The ice cubes are thick, have a long storage period, are not easy to melt, have good air permeability, and have a constant refrigeration temperature. The small slab ice is easy to use in any situation. With a secondary ice crusher, the size can be adjusted freely. Plate ice evaporator is mainly divided into two types: aluminum alloy plate ice evaporator and stainless steel plate ice evaporator. The plate ice evaporator uses a direct expansion system, using R-22, R507A, R404A or ammonia (R717) as the refrigerant.
Application: concrete mixing plant, chemical plant, mine cooling, vegetable preservation, fishery and aquatic products insulation, etc.
Product introduction
Icesta plate ice is an irregular plate-shaped ice . It is a transparent crystal and is not easy to melt. The surface is small, dry, powder-free, and has a long cooling time. The size of the sheet is about 40×40mm to 80×80mm, which can be adjusted according to the needs of customers. The thickness is about 8-10mm, and the thickness of the slab ice can be adjusted through the ice making time. The ice cubes are thick, have a long storage period, are not easy to melt, have good air permeability, and have a constant refrigeration temperature. The small slab ice is easy to use in any situation. With a secondary ice crusher, the size can be adjusted freely. Plate ice evaporator is mainly divided into two types: aluminum alloy plate ice evaporator and stainless steel plate ice evaporator. The plate ice evaporator uses a direct expansion system, using R-22, R507A, R404A or ammonia (R717) as the refrigerant.
Application: concrete mixing plant, chemical plant, mine cooling, vegetable preservation, fishery and aquatic products insulation, etc.
Application industry
More and more Cooling or temp.Reduction Equipment industry used the ice machines to meet their higher technic request due to their deeper knowledge about this euipment.
Technical Parameters
Power supply: 380V/3P/50HZ, 220V/3P/60HZ, 380V/3P/60HZ, 460V/3P/60HZ
Ambient temperature 35℃
Water supply Temp 20℃ ( quality)
Extreme working condition environment: 5℃～40℃, water supply 5℃～30℃
Refrigerant: R22, R404A, R507A
Show details
Main Features:
1. CE Certification.
2. SS304 plate evaporator, SS304 frame, ice sanitary and edible.
3. Automatic producing process by PLC control, lower the cost on manpower.
4. Thickness of ice is adjustable, from 8mm to 10mm. 8mm is the one our customer like more.
5. High efficiency and energy saving, only consumes about 60KW.H/ton ice.
6. Mainly used in marine products preservation.
7. Long service life.
8. One year warranty, and lifetime service available.

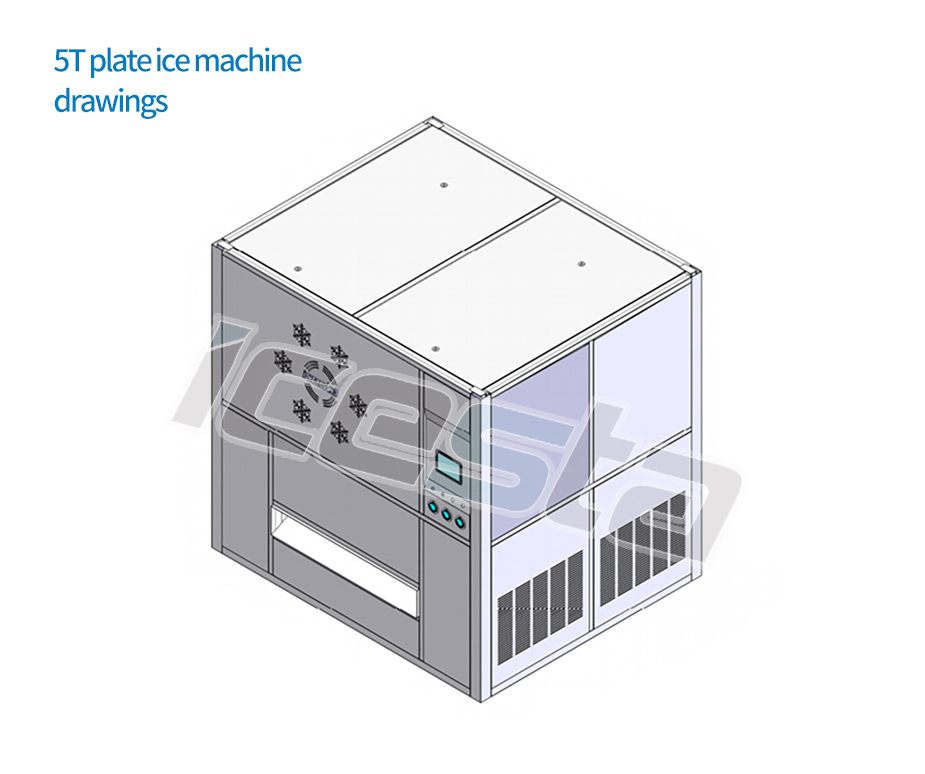

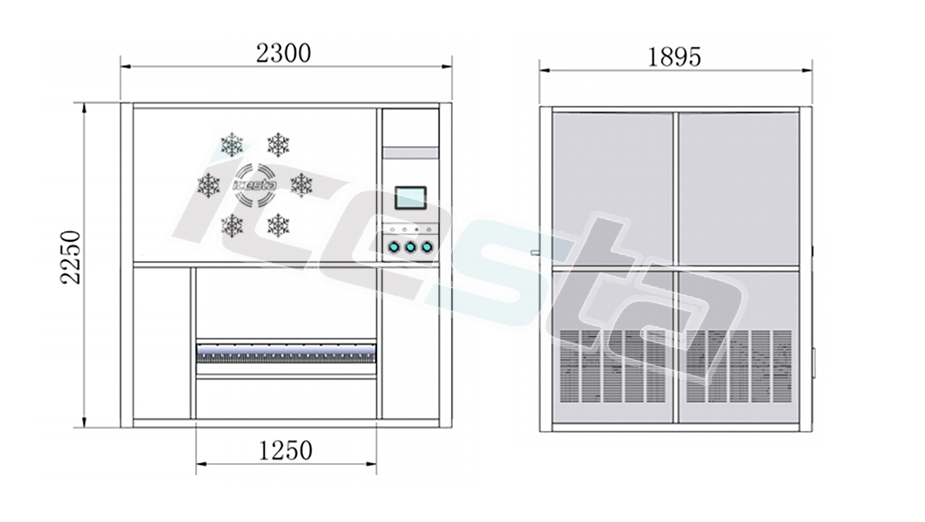

Drawing display
The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.
Advantages
Advantages of ICESTA plate ice machine
1.Rigorous pick-up of raw material. Not every kind of Stainless Steel is the same in terms quality on the market. When we choose stainless steel, we use the material of high quality with Qualified Material Certificate only.
2. Diversified choice. ICESTA provides customer oriented designs in accordance with machining artwork, working conditions and water quality, in an attempt to offer performance stability and ice use satisfaction as well as cost effectiveness.

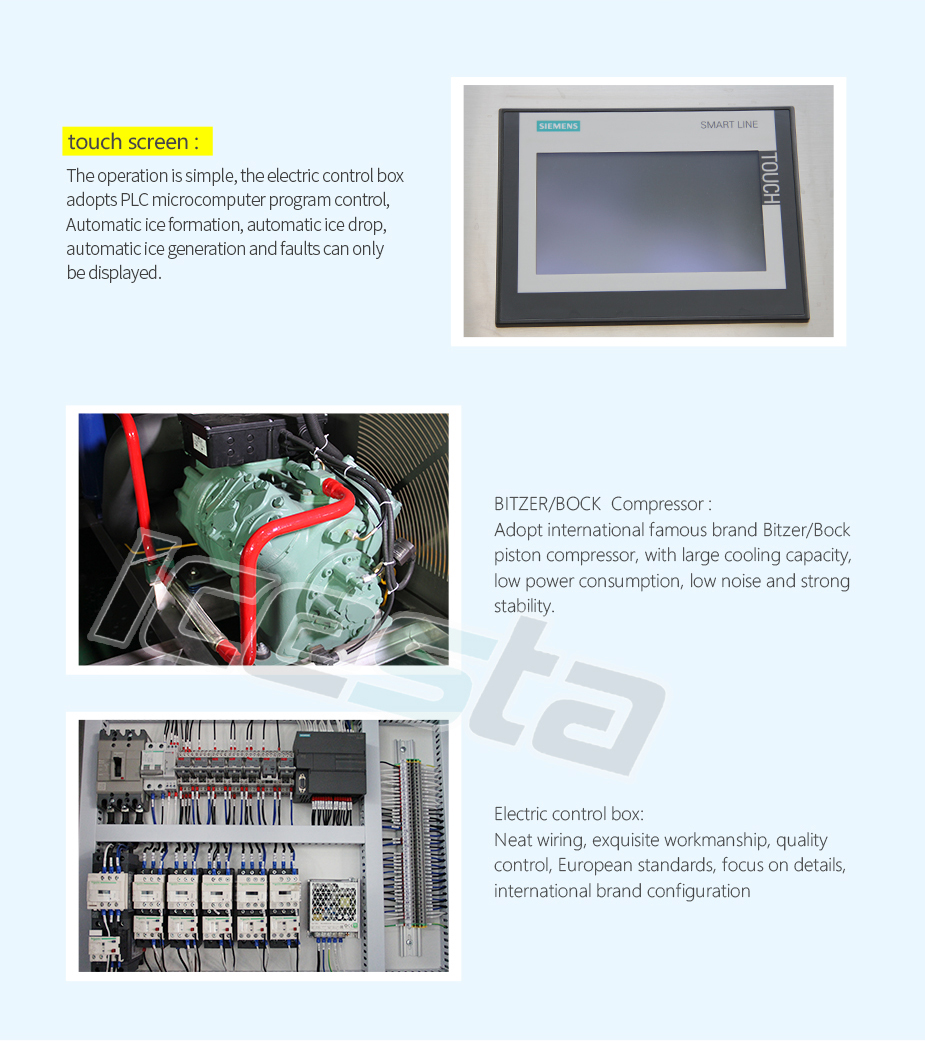

Intellectualized PLC controller with touch-screen
*All failure record & instant solution available
*Stop-time setting at will.
*Different languages version
Elaborate details design gives all-sided convenience
*Sufficient ice output
