Product Introduction

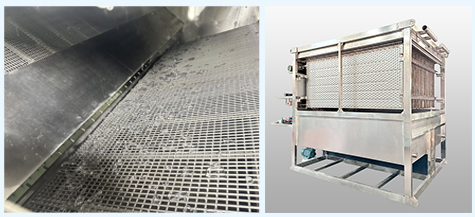

Icesta plate ice is an irregular plate-shaped ice . lt is a transparent crystal and is not easy to melt.The surface is small, dry, powder-free, and has a long cooling time. The size ofthe sheet is about 40x40mm to 80 x80mm, which can be adjusted accordingto the needs ofcustomers.The thickness is about 8-10mm, and the thickness of the slab ice can be adjusted throughthe ice making time. The ice cubes are thick, have a long storage period, are not easy to melt, have good air permeability, and have a constant refrigeration temperature. The small slab ice is easy to use in any situation. With a secondary ice crusher, the size can be adjusted freely. Plate ice evaporator is mainly divided into two types: aluminum alloy plate ice evaporator and stainless steel plate ice evaporator. The plate ice evaporator uses a direct expansion system, using R-22, R507A, R404A or ammonia (R717) as the refrigerant.

Daily Production Capacity Ranges from 20T to 100 T for a single unit and can be as much as 500T with the combination of multiple containers.

Application Industry

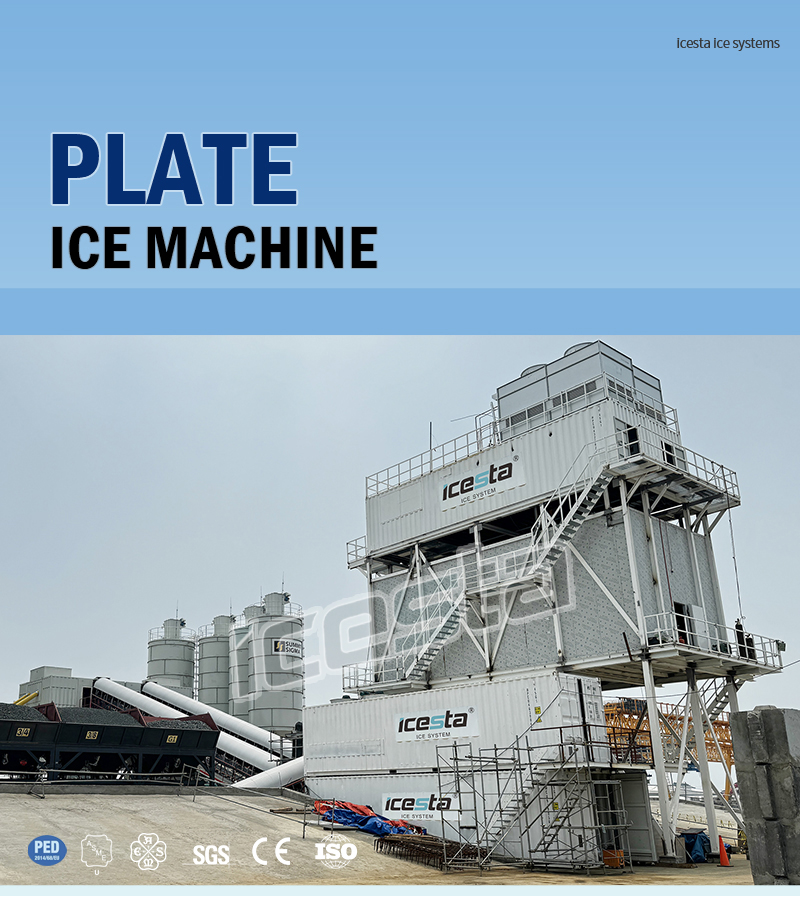

concrete mixing plant, chemical plant, mine cooling, vegetable preservation,fishery and aquatic products insulation, etc.

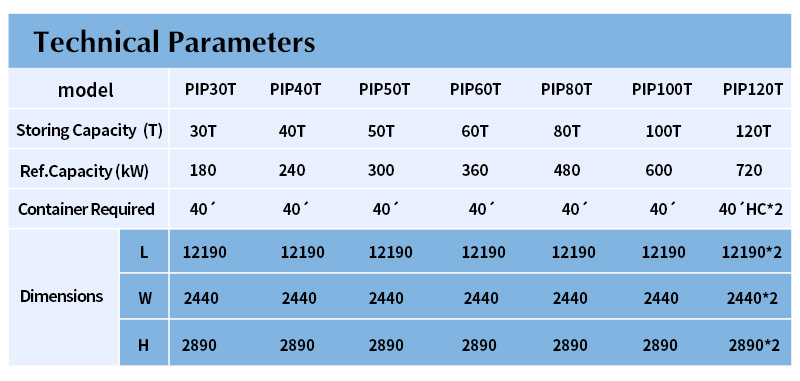

Technical Parameters

*Power supply: 380V/3P/50HZ,220V/3P/60HZ,380V/3P/60HZ,460V/3P/60HZ

*Ambient temperature 35°C

* Water supply Temp 20°C( quality)
*Extreme working condition environment: 5°C~40°C, water supply 5°C~30°C

*Refrigerant: R22,R404A, R507A

WHY Plate Ice

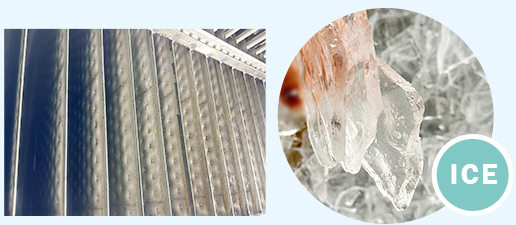

1. 1.SUS304 & SUS316L PLATE lce Evaporator optional, with the SUS 304 frame,Ice plates are sanitary and edible

2.Plate ice has an even cooling effect and aconstant refrigeration temperature of -2C;

3.Plate lce does has an adjustable ice thickness of 6mm-15mm, with 7-8mm as the widely accepted thickness

4.Plate lce Machine saves power by 35% due to the its -12 Evaporation Temp compared to Other traditional ice machines;

5.Plate ice is less prone to melt than flake ice due to its max thickness of 12mm;

6.Widely compatible with different refrigerants (R404A, R507A, R449A and R717);

7.Highly Compact, with each 40HC container of 80 metric tons production capacity;

8.Widely used in different applications.

9. CE Certification.

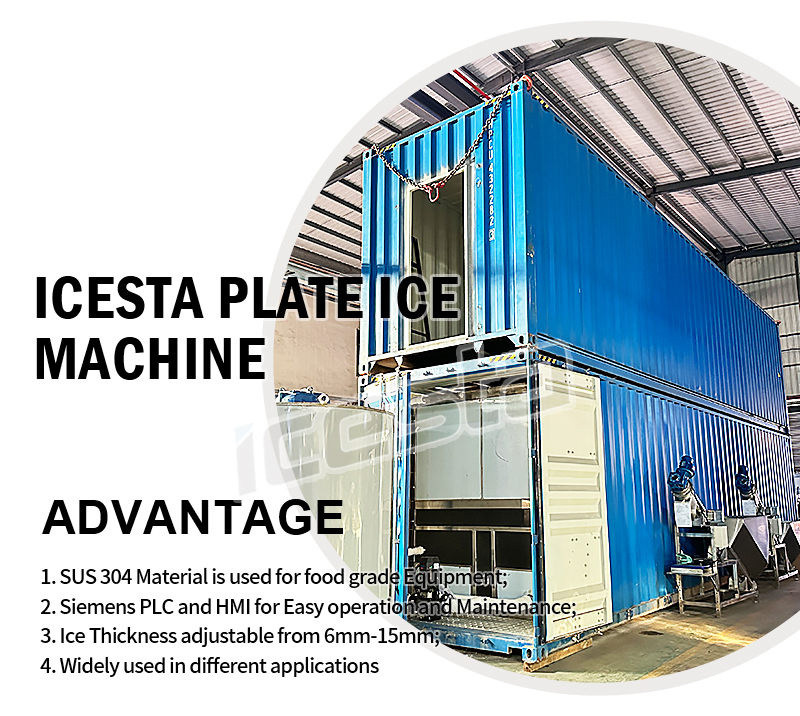

ICESTA PLATE ICE

δ(6 - 15mm)

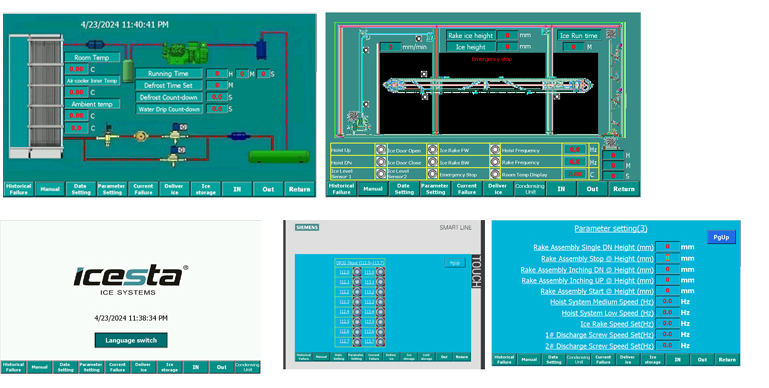

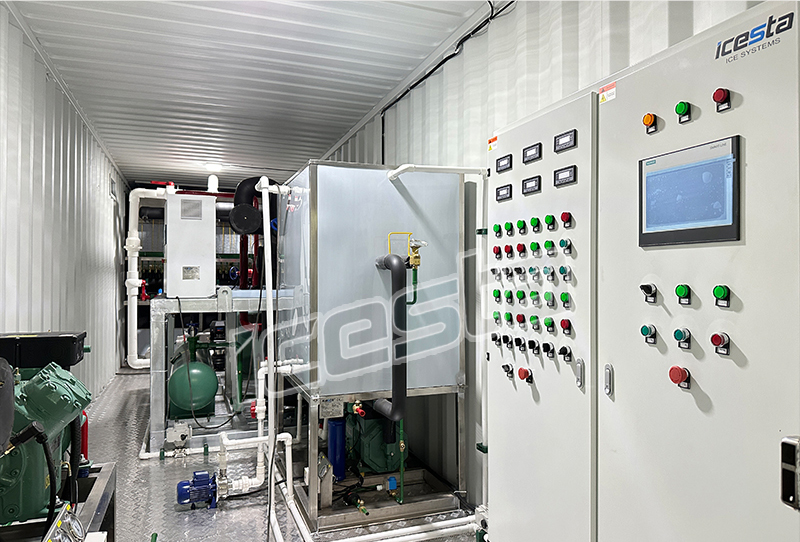

TOUCH SCREEN

Top-notch engineering design for integration ofice making & storing & handling

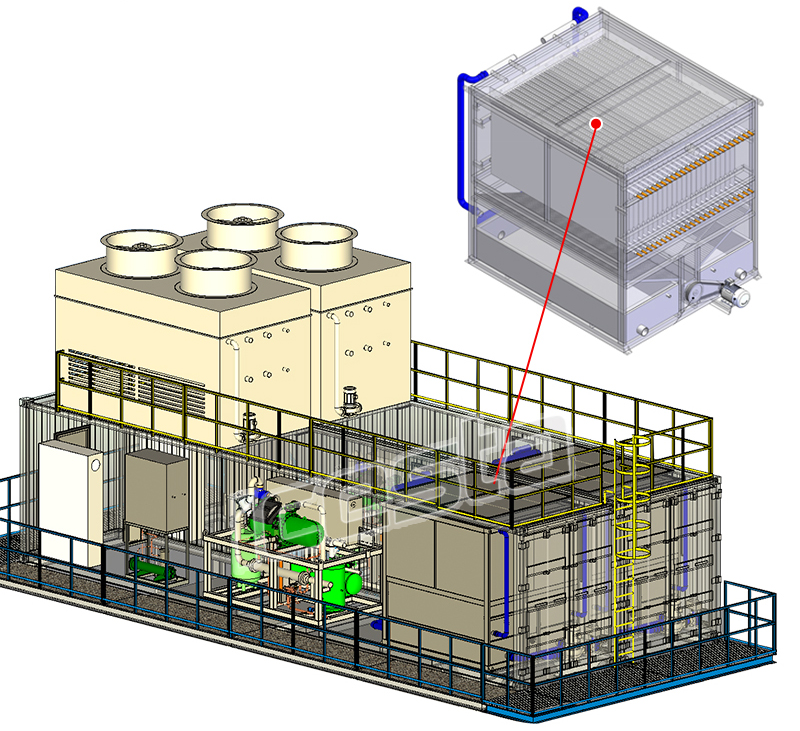

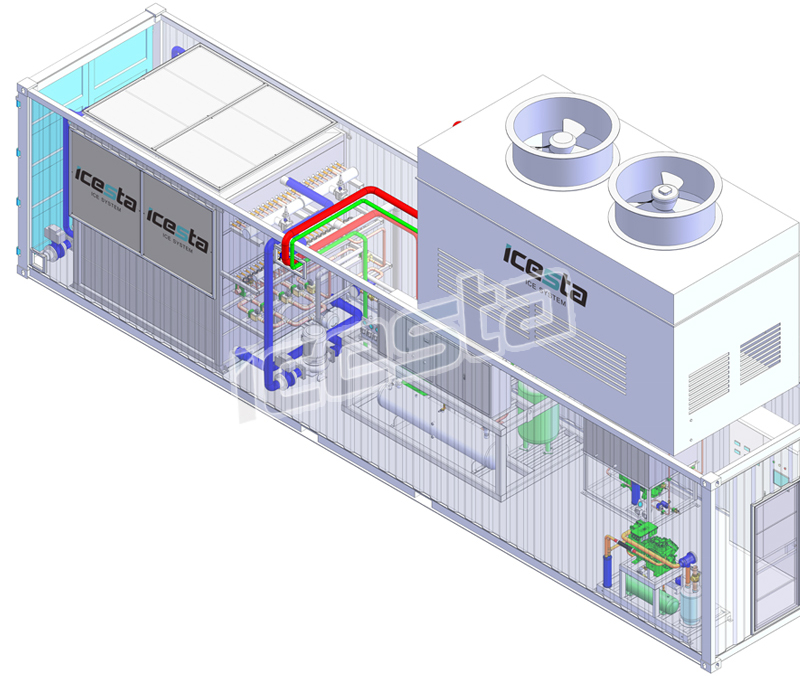

Drawing Display

The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.

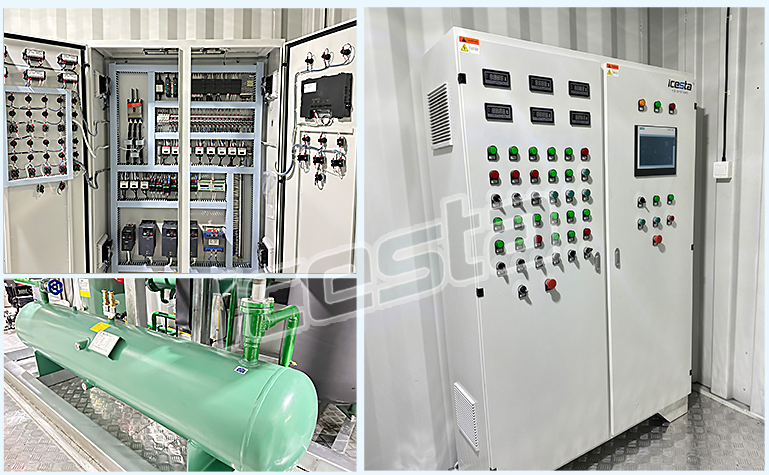

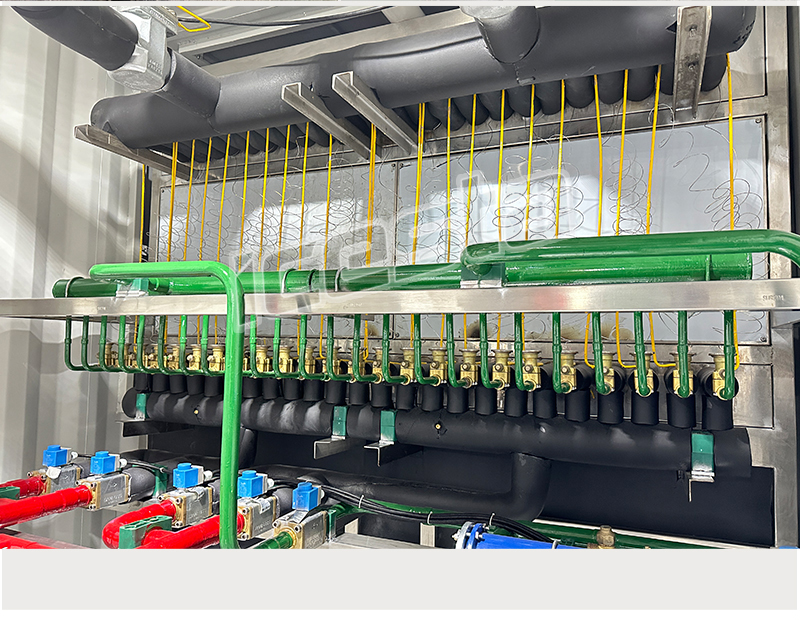

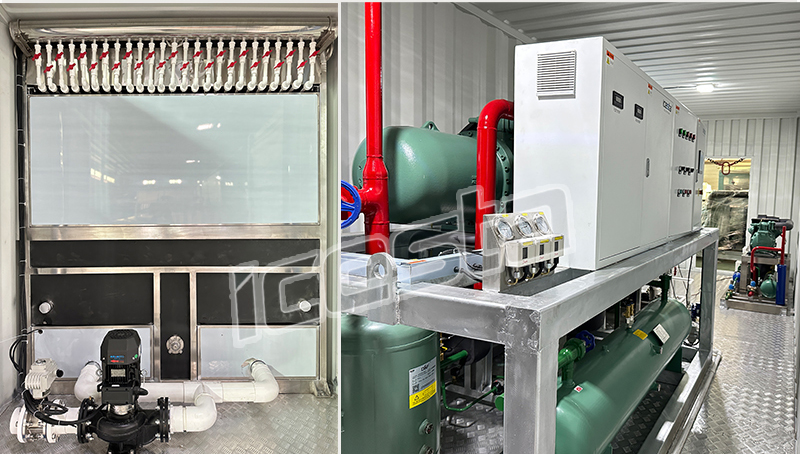

Picture Display

Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful
