Brine Cooling Block ice machine with 5 ton - 200 ton/day,ice size from 10kg to 150kg per piece for ice factory
ICESTA High Reliable
ICESTA Industrial Block ice making machines Brine refrigeration system
Icesta block ice machines adapt famous name brand components,like Germany Bitzer compressor, Korea vibration obsorber tube, Danfoss valves, Schneider electrics, Korea LG PLC or Germany Siemens PLC and touch screen, definitely make sure the robust quality of machine.
Technical Parameters
Ambient temperature 30°C, water temperature: 20°C
Evaporation temperature: -15℃, Condensing temperature：40℃
Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional
Refrigerant：R22、R404A、R507A
Water feeding pressure: 0.1Mpa-0.5Mpa
Ice weight：10KG-150KG
| Model | IB2T-R2W | IB3T-R2W | IB5T-R2W | IB10T-R2W |
| 20ft | 20ft | 40ft | 40ft | |
| Compressor Model | 4TES-9 | 4JE-15 | 6HE-28 | 6HE-28*2 |
| Design capacity | 2000kg/24h | 3000kg/24h | 5000kg/24h | 10000kg/24h |
| Refrigeration capacity | 17.9kw | 27.4kw | 48.8kw | 97.6kw |
| Total input | 9.13 kw | 15.27 kw | 27.85 kw | 50.5kw |
| Power of compressor | 6.7 kw | 11.9kw | 18.6 kw | 18.6*2 kw |
| Water pump of cooling tower | 0.75kw | 1.5kw | 2.2kw | 5.5kw |
| Power of cooling fan | 0.18 kw | 0.37 kW | 0.75kw | 1.5 kw |
| Water pump input | 1.1 kw | 1.1kW | 2.2 kw | 2.2 kw |
| Power of electric hoist | 0.4kw | 0.4kw | 0.4kw | 0.4kw |
| Agitator | 3.7 kw | 3.7 kw | ||
| Ice temp. | -10℃ | -10℃ | -10℃ | -10℃ |
| Each weight of the block ice | 25kg | 25kg | 5k2g | 25kg |
| Dimension of ice | 390*120*600mm | 390*120*600mm | 390*120*600mm | 390*120*600mm |
| Each freezing time | 11h | 11h | 11h | 11h |
| Each doff ice time | 0.4h | 0.4h | 0.4h | 0.4h |
| Ice Machine Diameter | 1800*1000*1350mm | 1800*1000*1350mm | 2050*1000*1370mm | 2160*1400*1940mm |
| Dimension of cooling tower | φ920*1830 | φ1165*1645 | φ1385*2150 | φ1880*2120 |
| Unit weight | 5.5t | 6t | 7.5t | 9t |
| Unit Operating Weight | 9t | 10t | 13t | 16t |
Show Details
Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful

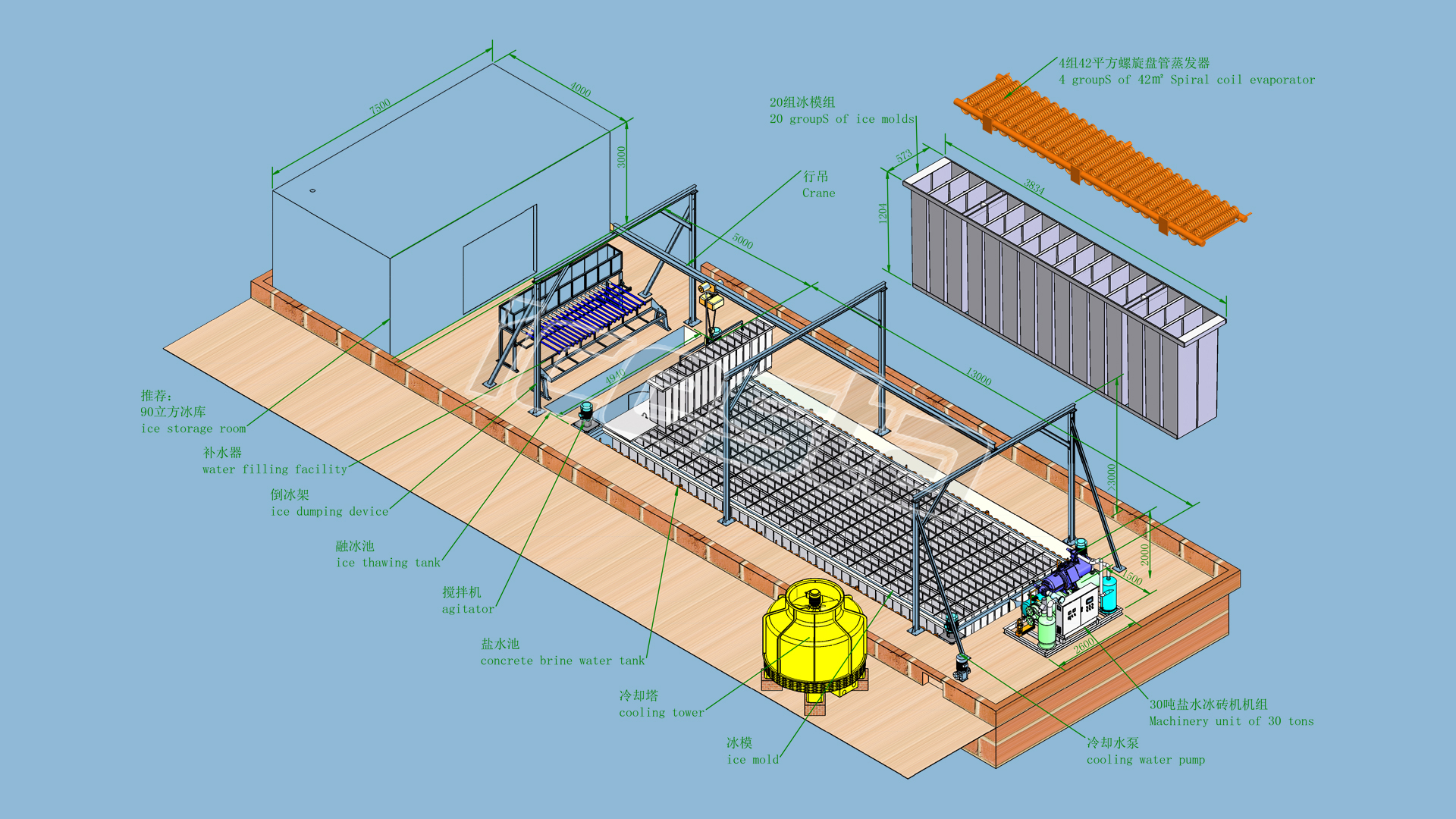

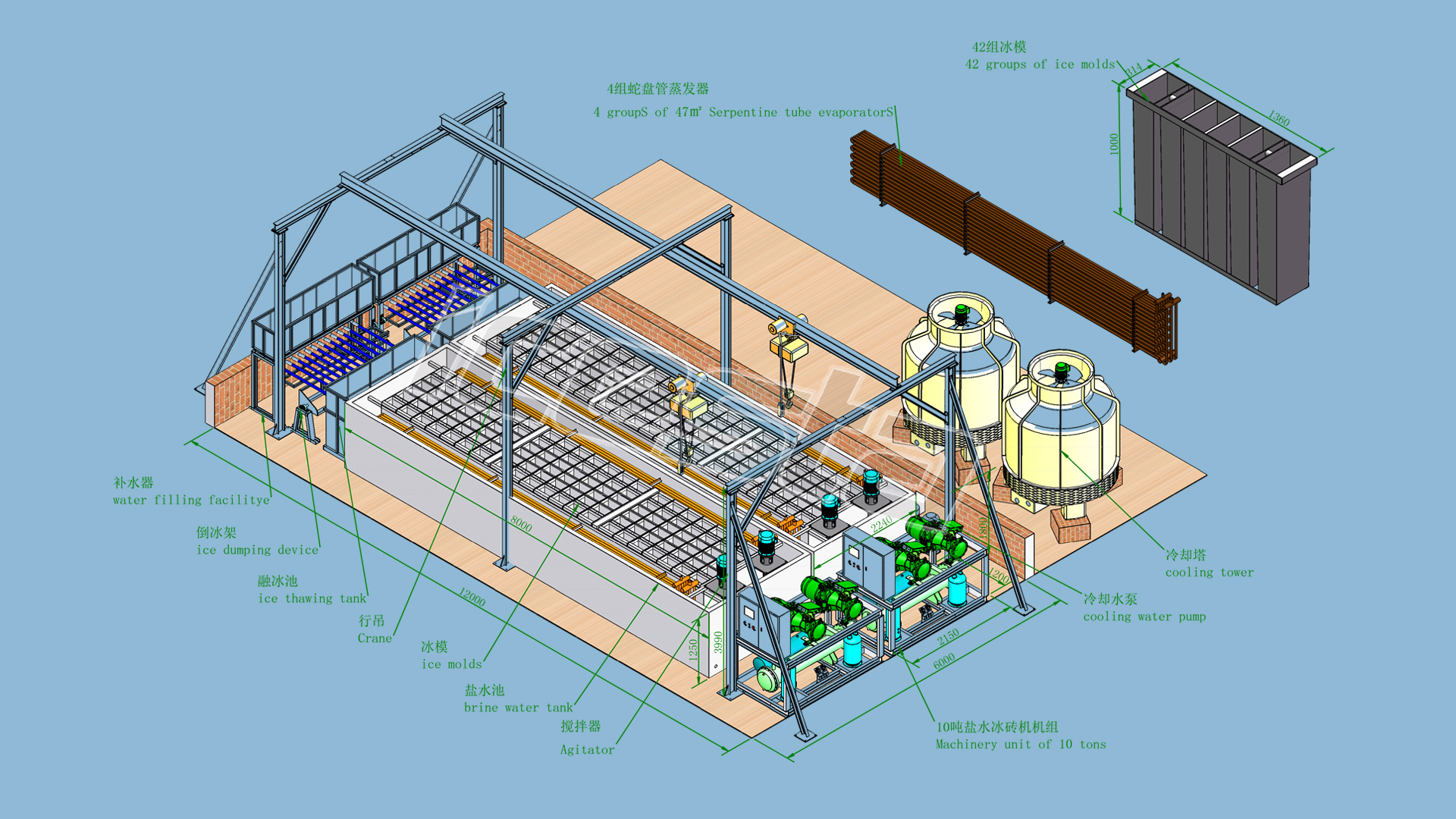

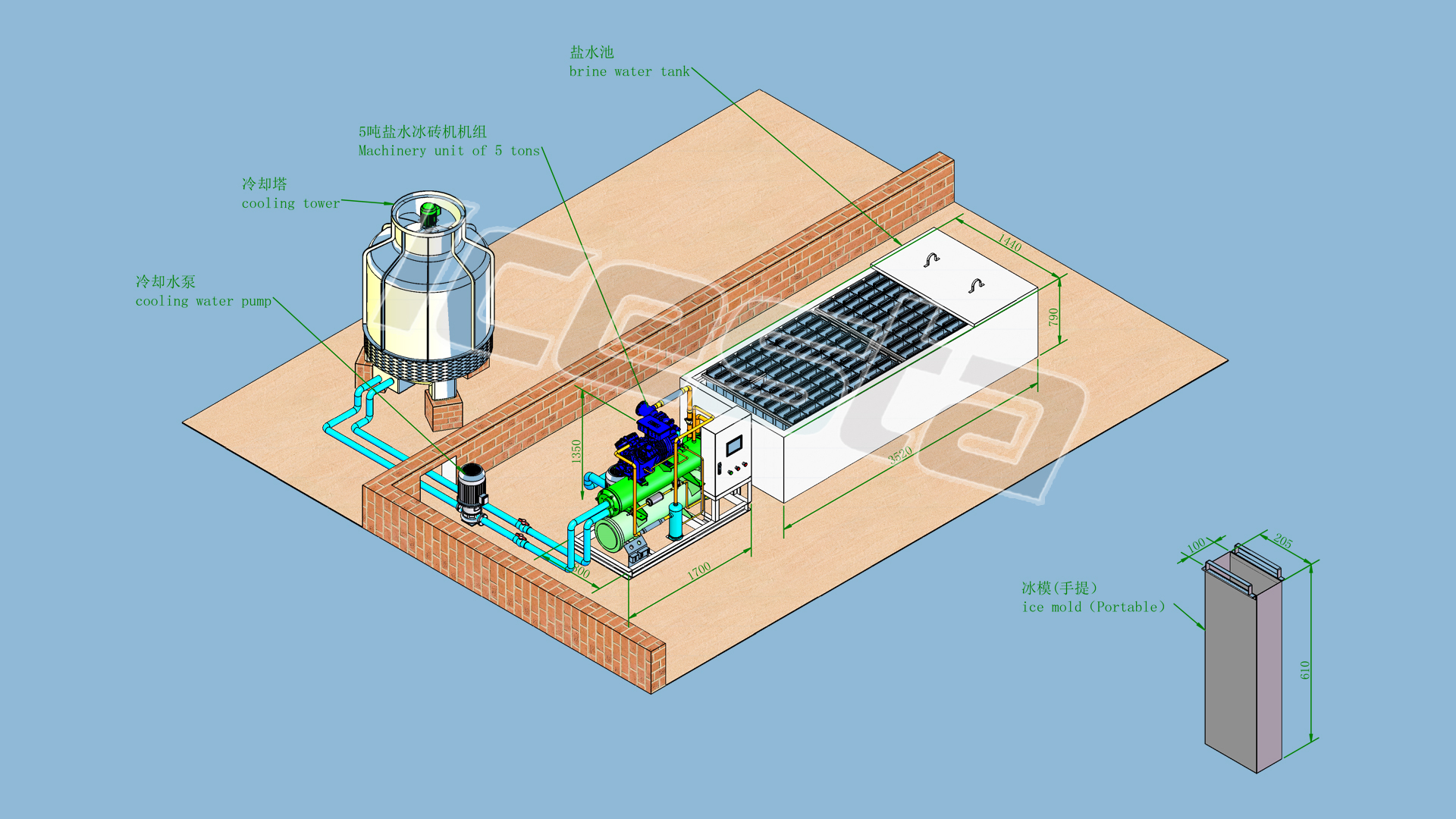

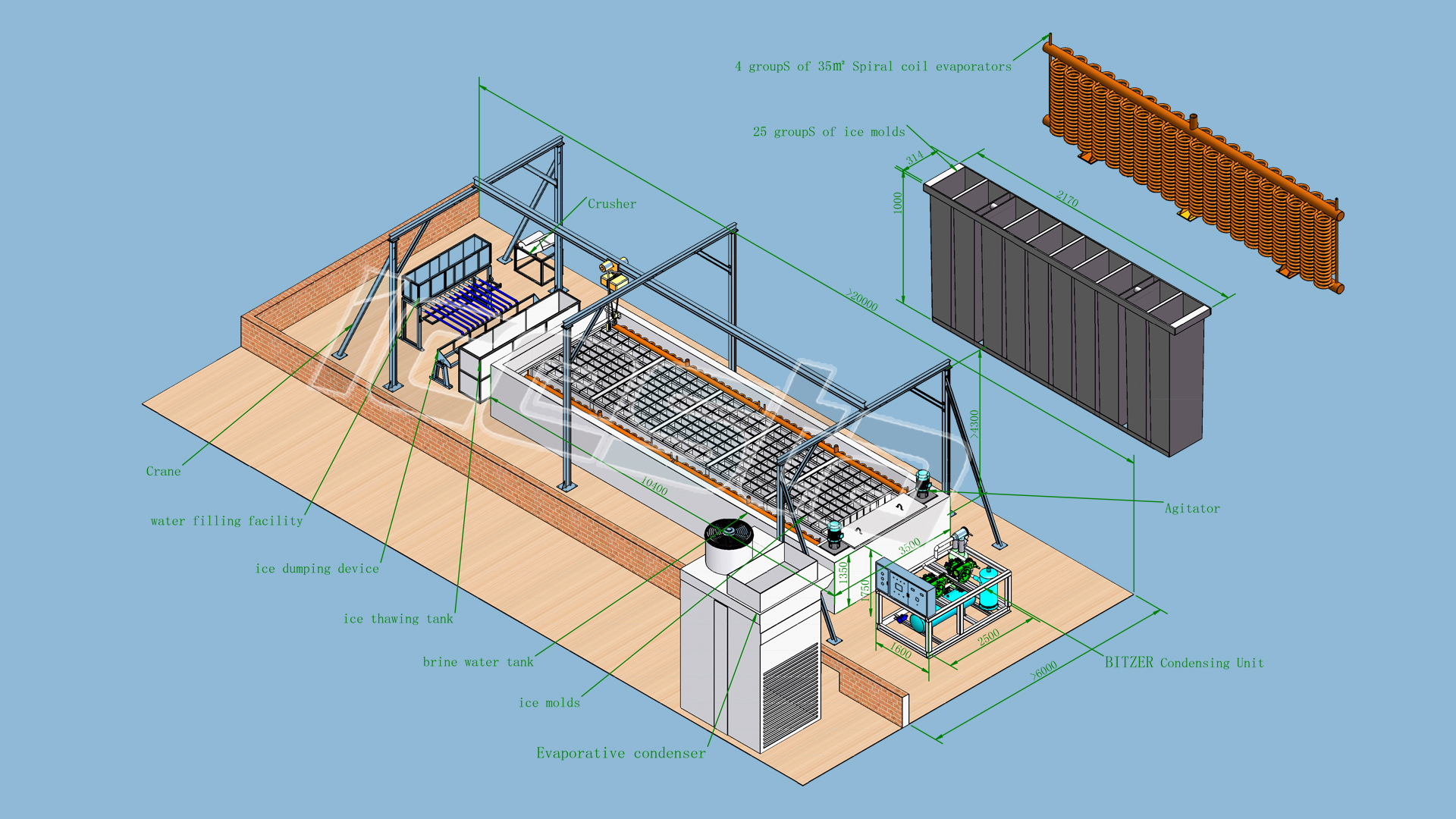

Drawing display
The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.
Advantage
Advantages of block ice machine
Because of its low power consumption, ice bricks are not easy to melt, and convenient for long-distance storage, block ice machines are favored by major ice sales factories, cold fresh distribution,ocean fishing and other industries.
◪Energy saving
◪high degree of automation
◪Fast freezing
◪Low operating cost
◪long lasting
![Brine Cooling Block ice machine with 5 ton - 200 ton/day,ice size from 10kg to 150kg per piece for ice factory 19]()
![Brine Cooling Block ice machine with 5 ton - 200 ton/day,ice size from 10kg to 150kg per piece for ice factory 20]()
![Brine Cooling Block ice machine with 5 ton - 200 ton/day,ice size from 10kg to 150kg per piece for ice factory 21]()
![Brine Cooling Block ice machine with 5 ton - 200 ton/day,ice size from 10kg to 150kg per piece for ice factory 22]()
- Application industry
More and more cooling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.
![Brine Cooling Block ice machine with 5 ton - 200 ton/day,ice size from 10kg to 150kg per piece for ice factory 23]()
Ice Crusher
The ice crusher is an ice-breaking device specially designed for the direct cooling block ice machine, which can crush 5kg-100kg of block ice. The ice crushing speed is fast, it only takes 3-4 seconds to crush 1 piece of ice And the crushed ice particles are uniform. The whole ice crusher is made of 304 stainless steel, which has strong anti-corrosion properties and has a service life of more than 10 years.
Engineering Case
Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions.
Customer Case Study of Fujian
Ice Selling Factory
Yunnan vegetable
base site case
pictures
Site case of Taiwan
Fishery Company
Large-scale ice selling
plant project in
southern China
FAQ
1. Questions before quotation
A. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What’s the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?
2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars
100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.
3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance
4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed
description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
