Industrial cube ice machine with 13 ton air cooling Stainless Steel for Cold Drinks Industry
The cube ice machine is a fully automatic edible ice maker that adopts self-adjustment of ice cube thickness, self-adaptation of ambient temperature, automatic water replenishment and automatic ice-forming and de-icing. The production process is fully automatic, and the ice cubes produced are uniform and beautiful, and there is no difference in thickness. The rational application of the two patented technologies of flat wall heat exchange technology and circulating hot gas deicing technology has made a breakthrough in solving many problems such as low production capacity, large power consumption and unstable deicing of small ice machines.
Product Introduction
The ice cube machine is a fully automatic edible ice machine that is self-adaptive to ice thickness, self-adaptive to ambient temperature, automatic water replenishment, and automatic ice formation and de-icing. The production process is fully automatic, and the ice cubes produced are uniform and beautiful, with no thickness difference. The reasonable application of two patented technologies, flat wall heat exchange technology and circulating hot air de-icing technology, has made a breakthrough in solving many problems of small ice machines, such as low production capacity, high power consumption, and unstable de-icing.
Application industry
Cube ice machine is widely used in guesthouses, hotels, bars, western restaurants, fast food restaurants, convenience stores and cold drink restaurants, etc., to meet every customer who needs ice.
Technical parameters
* Power supply: 380V/3P/50HZ, 220V/3P/60HZ, 380V/3P/60HZ, 460V/3P/60HZ
* Ambient temperature 35℃
* Water supply Temp 20℃ ( quality)
* Extreme working condition environment: 5℃～40℃, water supply 5℃～30℃
* Refrigerant: R404A(R22 R507 is optional)
| Model | IC3T-R4W | IC5T-R4W | IC10T-R4W | IC13T-R4A |
| Ice Making Capacity(t/24h) | 3t/24hrs | 5t/24hrs | 10t/24hrs | 13t/24hrs |
| Ice temp.(℃) | -5°C | -5°C | -5°C | -5°C |
| Cooling capacity | 23kw | 43.3kw | 92.4kw | 108.4kw |
| Compressor power(kw) | 10.84kw | 20.9kw | 43.2kw | 52.2kw |
| Cooling water circulating pump power(kw) | 1.5kw | 2.2kw | 4kw | |
| Cooling Tower Power(kw) | 0.55kw | 0.75kw | 1.5kw | |
| Running Power(kw) | 13.26kw | 24.6kw | 49.8kw | 60kw |
| Ice tray Number(pcs) | 12*380 pcs | 18*380 pcs | 36*380 pcs | |
| Ice Tray Size(mm) | 22*22*22mm | 22*22*22mm | 22*22*22mm | |
| Cooling type | Water cooling | Water cooling | Water cooling | Air cooling |
| Machine size | 2000*1650*2000mm | 2990*2050*1900mm | 5980*2100*2100mm | 9390*2134*2050mm |
Note: Air cooling is also available
Show details

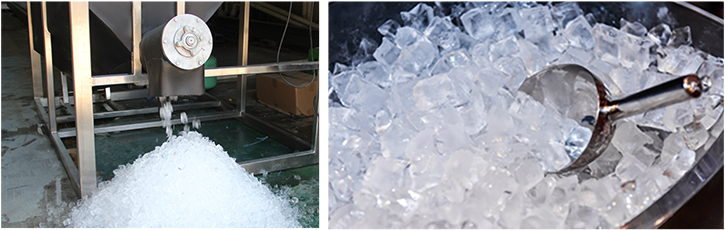

1, Thickened insulation material, stainless steel design.
2, Large ice volume, large capacity, stainless steel material, to meet the customer's large amount of ice demand.
3, Ice is not easy to melt, excellent taste.
4, Water flow type double ice making, vertical ice tray, power saving. Overall food-grade PE liner, EU CE certification.
5, Computerized real-time monitoring, automatic detection and recovery of water and power failure, easy to operate, safe and reliable.
The ice cube machine has a beautiful and elegant appearance. The condensing unit adopts an integrated design, uses internationally renowned brand components, and is automatically controlled by PLC. The body shell is made of 304 stainless steel, which meets the hygienic requirements of production.
Drawing display
The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.
Advantage
Advantages of ICESTA cube ice machine
* Rigorous selection of raw materials. The quality of stainless steel on the market is not the same. When selecting stainless steel, we use only high-quality materials with certificates of conformity.
* Diversified selection. ICESTA offers customer-oriented designs based on processing, working conditions and water quality, striving to provide performance stability and satisfaction in ice use as well as cost-effectiveness.
Intellectualized PLC controller with touch-screen
All fault records and immediate solutions
Downtime can be set arbitrarily.
Multiple language versions
Elaborate details design gives all-sided convenience
Sufficient ice output
