The self-stacking spiral freezer is a compact and hygienic freezer design. Compared to the traditional low tension spiral freezer, the self-stacking spiral freezer eliminates the rails supporting the belt, that means up to 50% more freezing output with the same foot print.The conveyors are almost 100% accessible to cleaning thanks the elimination of the belt rail and drum, The freezer has combined the state-of-the-art clean-in-place (ClP) system. An open, easily cleanable and accessible design optimizes sanitation standards and decreases system downtime for cleaning and maintenance. This feature reduces contamination and extends the life of the equipment by preventing waste buildup and simplifying the cleaning process.
The self-stacking spiral freezer is a compact and hygienic freezer design. Compared to the traditional low tension spiral freezer, the self-stacking spiral freezer eliminates the rails supporting the belt, that means up to 50% more freezing output with the same foot print.The conveyors are almost 100% accessible to cleaning thanks the elimination of the belt rail and drum, The freezer has combined the state-of-the-art clean-in-place (ClP) system. An open, easily cleanable and accessible design optimizes sanitation standards and decreases system downtime for cleaning and maintenance. This feature reduces contamination and extends the life of the equipment by preventing waste buildup and simplifying the cleaning process.
Technical Date
Structure | Self-stacking spiral freezer |
| Drum Diameter | S4, S6, S7, S9, S10 |
| Layers | 6~50 |
| Insulated Enclosure | PIR/PU,SS skin at both sides, fully welded |
| Mesh Belt Width | 420~1370mm |
| Infeed length | 700mm |
| Outfeed length | 600mm |
| Control panel | PLC touch screen, SS panel |
| Refrigerant | Freon, Ammonia, CO₂ |
| Evaporator | Al/SS tube, aluminum fin, variable fin pitch |
| Defrost | Water/hot gas/ADF optional |
| Freezing\cooling time | Stepless variable frequency adjustable |
| Cleaning | Manual\ Belt Washer\ ClP |
| Freezing capacity | 300 to 5000kg/h |

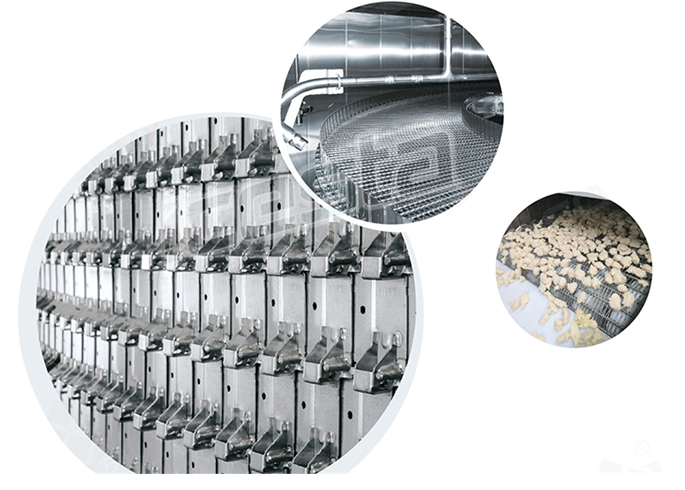

Self-Stacking Belt
The self-stacking belt is driven by chain system, operates completely on rolling balls. The resistance and noise caused by running chain is reduced, so smaller motors can drive the system. The belt is not in tension in run. The belt is less likely to be stretched and deformed. Self-stacking belt stacks on the top of each other’s side links. This self-stacking feature eliminates the rails supporting the belt.

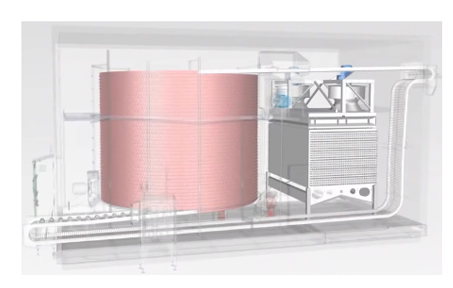

Self-contained Freezing Zone
The special holes on the side links also introduce cold air into product zone and create turbulence.This provides uniform product temperature across the belt and increases the heat exchanging efficiency

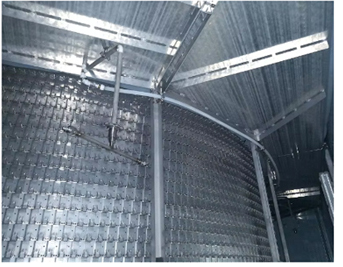

Automatic Cleaning Systems

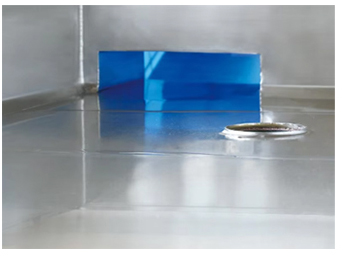

Fully welded floor

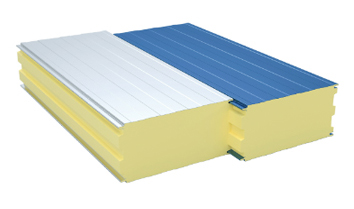

Insulated Enclosure

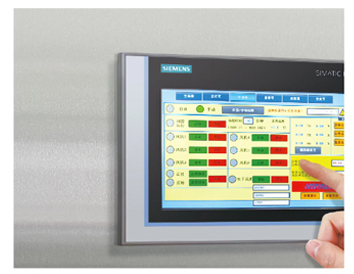

Intelligent Control System
