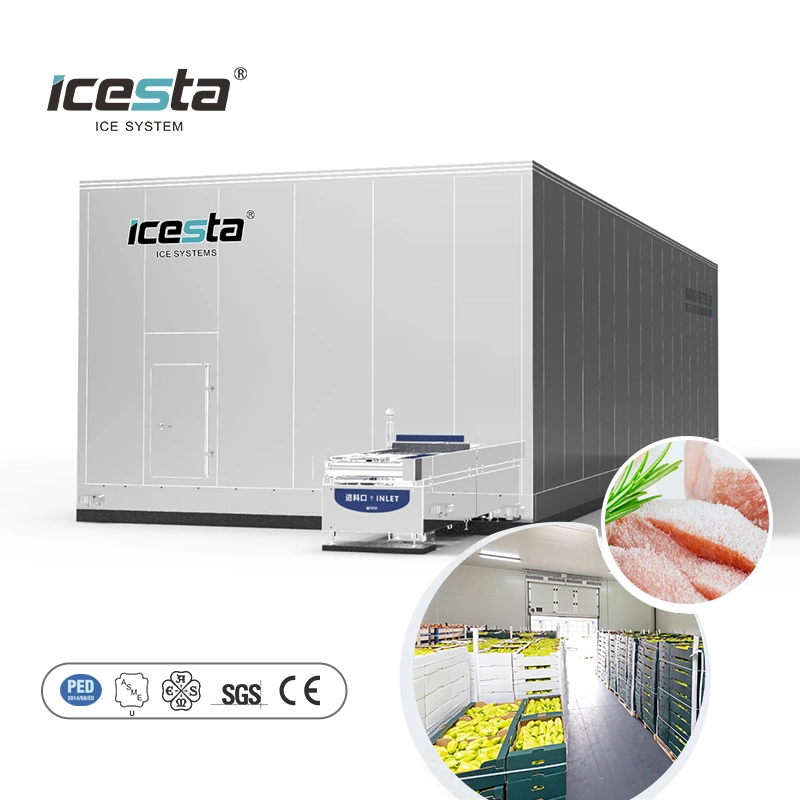

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 1

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 2

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 3

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 4

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 5

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 6

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 7

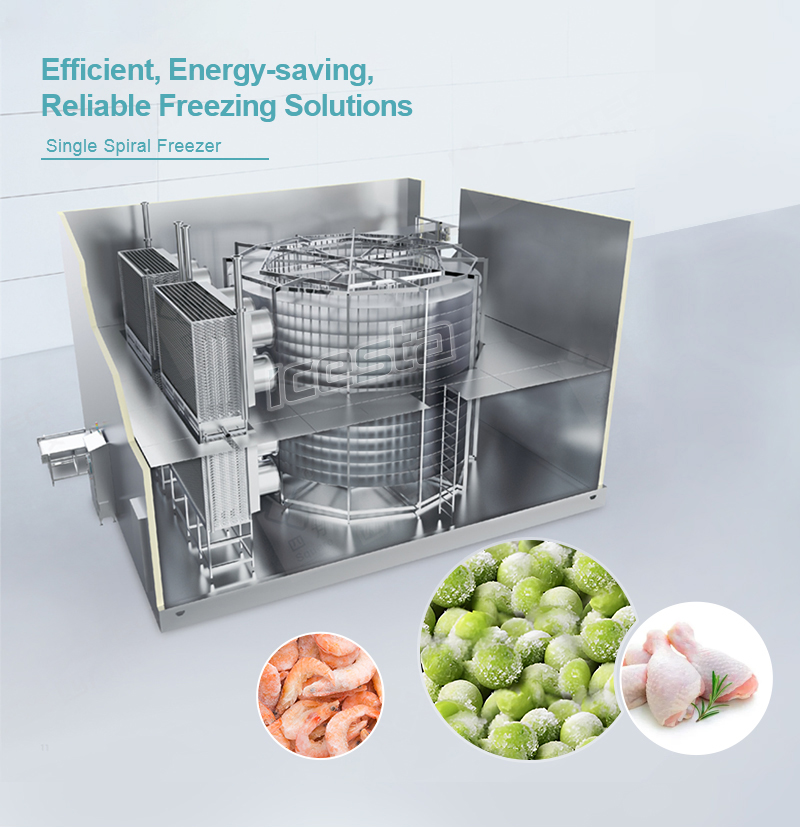

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling

The main features of the spiral freezer are:

1. Space saving: The spiral design allows for vertical stacking during the freezing process, optimizing the footprint while handling large quantities of products.

2. Continuous operation: The product is fed into the conveyor belt, which spirals through the freezing chamber, allowing the food to flow continuously and thus improving processing efficiency.

3. Rapid freezing: Spiral freezers usually use quick freezing technology to quickly reduce food temperature, maintain texture, and minimize ice crystal formation.

4. Temperature control: They adopt precise temperature and airflow control design to ensure consistent freezing effect for all products.

5. Multifunctionality: These quick freezing machines can process a variety of foods, including meat, seafood, baked goods, and ready to eat foods.

6. Efficient energy utilization: Advanced design features such as insulated walls and efficient airflow systems help reduce energy consumption.

Inquiry

Write a Review

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 8

The main features of the spiral freezer are:

1. Space saving: The spiral design allows for vertical stacking during the freezing process, optimizing the footprint while handling large quantities of products.

2. Continuous operation: The product is fed into the conveyor belt, which spirals through the freezing chamber, allowing the food to flow continuously and thus improving processing efficiency.

3. Rapid freezing: Spiral freezers usually use quick freezing technology to quickly reduce food temperature, maintain texture, and minimize ice crystal formation.

4. Temperature control: They adopt precise temperature and airflow control design to ensure consistent freezing effect for all products.

5. Multifunctionality: These quick freezing machines can process a variety of foods, including meat, seafood, baked goods, and ready to eat foods.

6. Efficient energy utilization: Advanced design features such as insulated walls and efficient airflow systems help reduce energy consumption.

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 9

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 10

Technical Date

Structure	Single spiral freezer
Drum Diameter	1620~5800mm
Layers	6~40
Insulated Enclosure	PIR/PU,double sides stainless steel panel
Mesh Belt Width	520~1372mm
Infeed length	500mm
Outfeed length	500mm
Control panel	PLC touch screen, SS panel
Refrigerant	Freon, Ammonia, CO₂
Evaporator	Al/SS tube, aluminum fin, variable fin pitch
Defrost	Water/hot gas/ADF optional
Freezing\cooling time	Stepless variable frequency adjustable
Cleaning	Manual\ Belt Washer\ ClP
Freezing capacity	200 to 10000kg/h

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 11

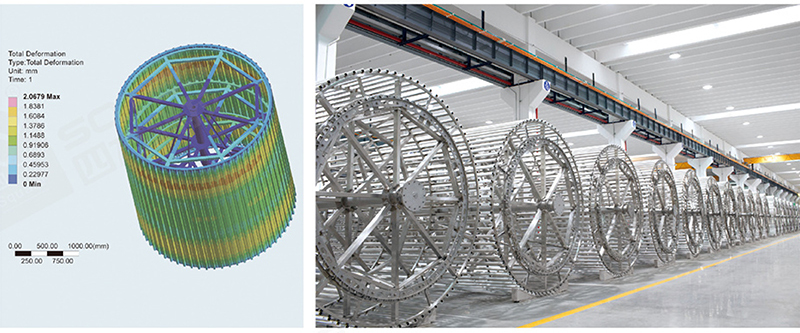

Finite Element Analysis

When designing a spiral freezer, structural analysis is perfomed to ensure its structural integrity during operation.

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 12

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 13

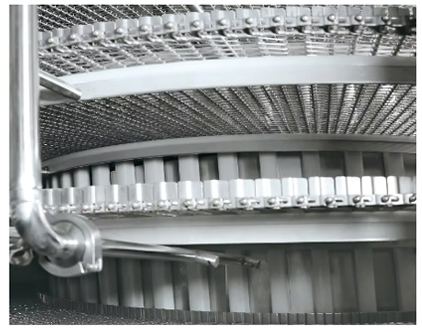

CIP(Cleaning-in-place)

The system cleans and disinfects the interi or of the freezer completely to meet the sanitary requirements of food safety production.

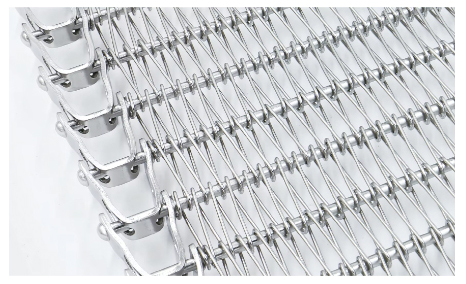

Stainless Steel Mesh Belt

SUS304 food-grade spring wire, high strength, 8–10 years of service life. Open structure, easy to clean, suitable width: 400–1372 mm. Optional edge guard board to prevent products from dropping. High ventilation, high efficiency.

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 14

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 15

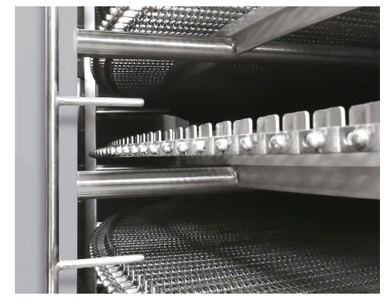

Belt Flip Detector

The Belt Flip Detector is a feature that helps to ensure the smooth and efficient operation of the spiral freezer. It works by detecting any issues with the conveyor belt that could cause it to flip or become misaligned. If a problem is detected, the Belt Flip Detector will automatically shut down the freezer to prevent any damage or downtime. This helps to reduce maintenance costs and increase the overall reliability of the spiral freezer.

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 16

Fully welded floor

Modular stainless steel fully welded floor, leak proof.

Sloped floor, fast drainage through four drains at the corners. Easy Access.

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 17

Multi-Zone Temperature Monitor

The Multi-Zone Temperature Monitor is a feature that allows you to monitor the temperature of different areas within the spiral freezer. It is made up of several sensors that are strategically placed around the freezer to give real-time readings of the
temperature. This lets you keep track of how well the freezer is working and make any changes you need to for the best temperature control.

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 18

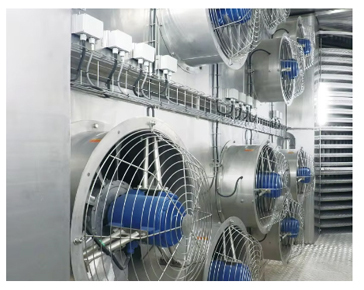

Efficient Evaporator

Our design was simulated with European professional heat exchanger software. All tubes are expanded hydraulically rather than mechanically, which improves heat exchange performance due to more uniform expansion and a tighter fit between tube and fin. Variable fin pitch is used to delay frost formation on the filn's surface. Longer frosting interval. Easy access and cleaning.

Industrial Single Spirals Freezer Automatic High Capacity High Efficiency Low Temperature for Frozen Fish Meat Dumpling 19

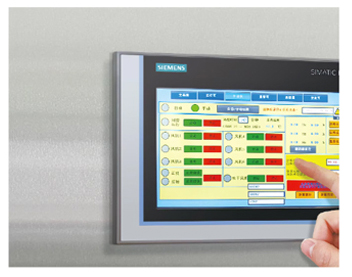

Intelligent Control System

PLC touch screen, friendly interface, easy operation. Real-time display of equipment running status, the temperature of each area, and fault alarm. Preset freezing programs tailored for different products. Optional remote troubleshooting module.
