High reliability ,Customized,100% Ice Production,15+ Years Lifespan,

Exported to 80+ Countries.

EXQUISITE CRAFTSMANSHIP MAKES TOP-NOTCH ICE MACHINE.

The fluidity of ice slurry makes its storage and application convenient and laborless.The storage facility can be a stand-alone & insulated fiberglass silo,which features a confined foot print.Silos are well structured for automatic applications:dry ice slurry can be wiped down from top and mixed with cold water and pumped to different ice use points at desired ice concentration.While solid ice can be more troubling for transportation.

Inquiry

Write a Review

INCLUSIVE AND CONVENIENT ICE

& REFRIGERATION SOLUTIONS

Sea water ice slurry machine small size from ICESTA 8

Sea water ice slurry machine small size from ICESTA 9

Sea water ice slurry machine small size from ICESTA 10

What is Seawater Slurry Ice

With wide experience in ice making equipment for more than one decade, ICESTA can design and fabricate different types of seawater & brine water slurry ice making equipment suitable for varied applications. Seawater ice crystals, when mixed with chilled seawater, turns to gel status, which is called liquid/slurry/fluid ice.

Advantages of Slurry Ice

1: Seawater Ice Slurry is a brand new type of ice which is different from traditional solid ice. It is a mixture of seawater tiny ice crystals and chilled seawater.

2: Fluidity of slurry ice allows pipe transportation; Liquid status and latent heat enable rapid chilling.

3: The products that are to be chilled can be fully immersed in slurry/liquid ice, which allows 100% contact and rapid chilling.

4: Slurry/liquid ice can be delivered to all desired ice use points via soft pipe & piping, which dramatically saves operational costs.

5: Larger contact area and quicker cooling shortens chilling time by 1/3.

Applications:

Sea water ice slurry machine small size from ICESTA 11

Picture display

Technology, change the world, innovate, and subvert tradition.

We are committed to making people's production and life more convenient, efficient and beautiful

Sea water ice slurry machine small size from ICESTA 12

Sea water ice slurry machine small size from ICESTA 13

Sea water ice slurry machine small size from ICESTA 14

Sea water ice slurry machine small size from ICESTA 15

Sea water ice slurry machine small size from ICESTA 16

ICESTA’s Slurry Ice Applications Compact

Slurry Ice Equipment

For seawater slurry ice applications of 40% concentration and required capacity lower than 15 tons, we are recommending scraping type ice generating system of single or combined modules.

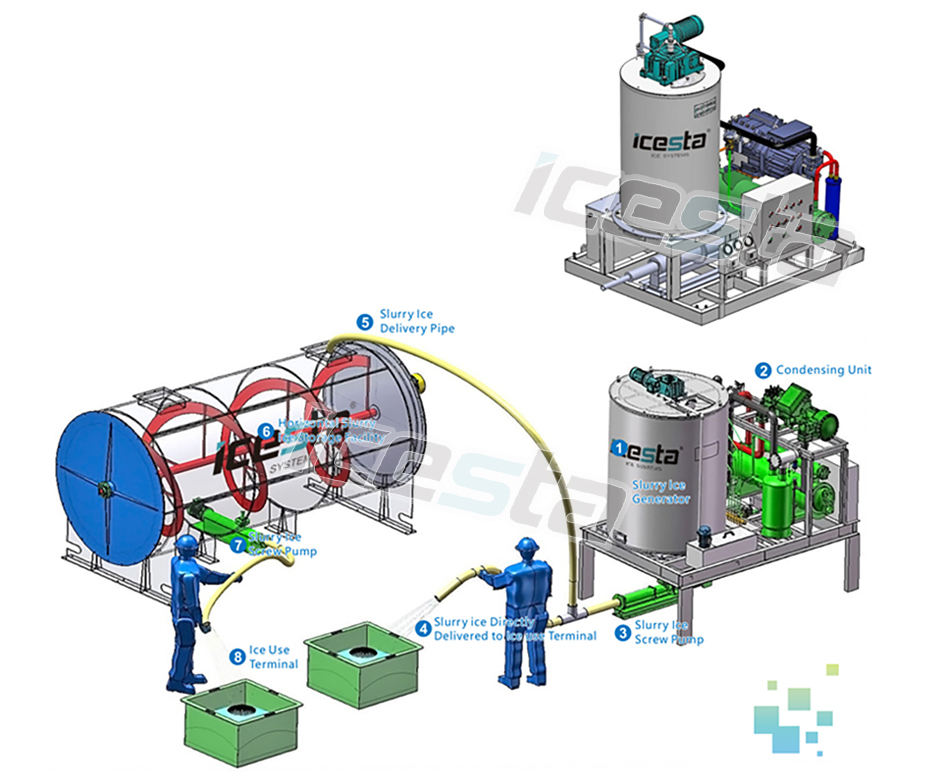

For confined installation area, fishing vessels for example, we are using remote type, which separates condensing unit from ice making unit and storage and delivery facility. Flexible pipes are used to connect all the composing parts for easy maintenance. A remote start and stop button is installed at the delivery facility for automatic ice delivery.

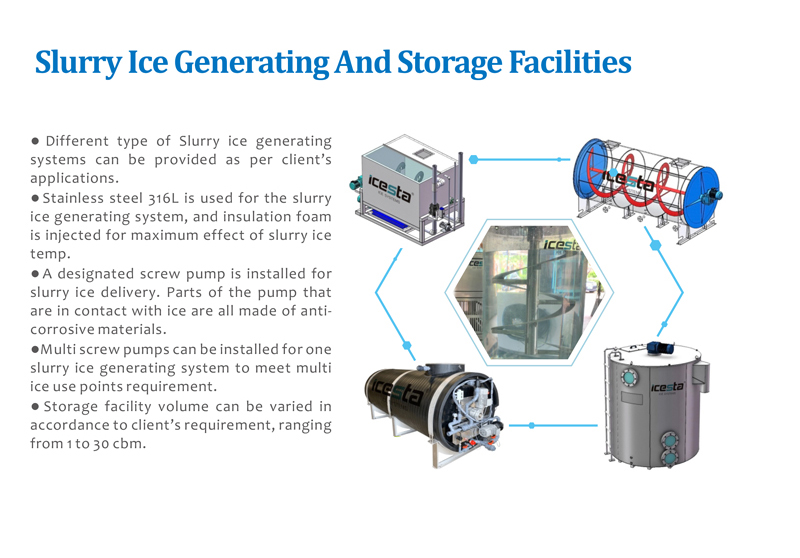

Vertical slurry ice storage facility is available at clients’ request, which ranges from 1m³ to 30m³ (refer to page 10 for details). Slurry ice shall be transported via screw pump at ice concentration of 20% to 70%.

When the installation area is limited, an integrated module seawater slurry ice making & delivery system shall be recommended. It is easy of installation and mobilized. Storage facility for this system is recommended to reach a maximum capacity of 15 cubic meters. Stainless steel 316L or food-grade anti- corrosive plastic is used as the material when it is in contact with seawater to reach Hygiene standards.

Slurry ice generating system can have various environmentally friendly refrigerants of R448A/R449A/R407F/R404A and R507.

You may contact us for for customized designs.

Sea water ice slurry machine small size from ICESTA 17

Modularized Large-Scale Slurry Ice Equipment

◪Modularized to realize Large scale slurry ice making system as per client’s request.
◪Each Single ice making unit is separate from and coordinate with each other to make ice slurry
◪Flexible configuration to increase and decrease production capacity.
◪A complete system is composed by pumping stations, ice making modules, storage facility, mixing & delivery system and control system.
◪Materials in contact with ice are stainless steel 316L or food-grade anti-corrosive plastic.
◪Seawater pre chilling system is suggested for large scale ice slurry making system to maximize energy- efficiency. Ice slurry system can be a customized and turnkey project.
◪A maximum daily production capacity of 1,000 metric tons of ice slurry can be reached with modularized design ice making system.

◪Contact our Sales team or agent for more details regarding customized design of modularized large scale ice systems. Sea water ice slurry machine small size from ICESTA 19

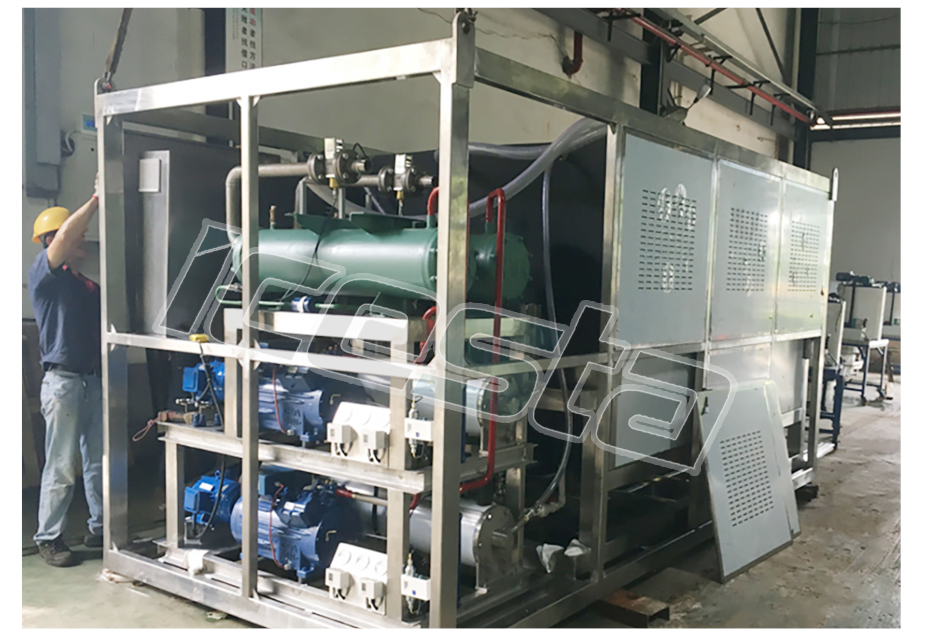

Medium-size Single Unit Slurry Ice Making Equipment

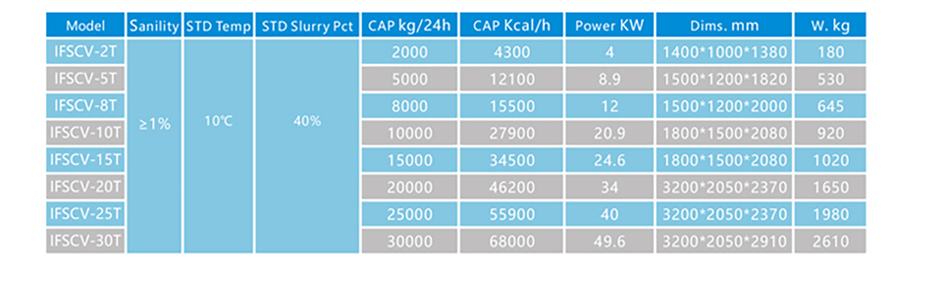

◪Cost Effective Single Unit slurry ice making system which ranges from 2 mt to 30 mt per day.
◪Ice making unit is a semi-hermetic structure, which allows easy observation of ice making status and maintenance.
◪Ice Making units are in compliance with PED pressure vessel directives and highly reliable.
◪Generous Evaporation Area and Production Capacity.
◪Applicable with virtually any seawater all over the world. Applicable Sanility: 1-3.5%.
◪ Direct Ice slurry delivery or External Ice slurry mixing and delivery.

◪ Long lifetime with Anti-corrosive parts.

◪ Compact design suitable for fishing vessel installations.

◪ Control Panel is anti-corrosive.

◪ Various Designs and solutions can be provided for different applications

◪ Fully automatic and unattended.

Sea water ice slurry machine small size from ICESTA 20

Sea water ice slurry machine small size from ICESTA 22

FAQ

1.Questions before quotation

A. Would you make ice from seawater, saltwater or freshwater?B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?C. What’s the power supply?D. What is the application of the flake ice produced?E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?

2.Installation & commissioning

A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.B. Installed by ICESTA engineers.a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all installations and commissioning.b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars 100 per engineer per day.c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.

3.Failure Claim procedures

a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed description of failure.b. Relevant pictures are required for failure confirmation.c. ICESTA engineering and after-sales service team will check and form a diagnosis report.d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures

Advantages

1.Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.

2.ICESTA provide full technical support and training courses after equipment installation and commissioning.

3.Permanent technical support & consultation all life long for the machines.

4.Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.365 days X 7 X 24 hours phone / EMAIL assistance
