ICESTA Industrial tube ice machine with 20 ton water cooling stainless steel For Food Processing / Cold drink industry

Technical Parameters

Thetechnical data based on 30-℃ambient temp.20Cwater inlet temp.

The evaporating / condensingtemp.-15C/40℃(Air-coole) 38℃(Water cooled)

Powersupply: 3P/380V/50HZ(3P /220/60HZ,3P/280V/60HZ,3P/460V/60HZ Optional)

Refrigerant R404A(R22R17 R507 is optional)

lce tube diameter: Φ22,Φ29,Φ35,Φ42 is optional

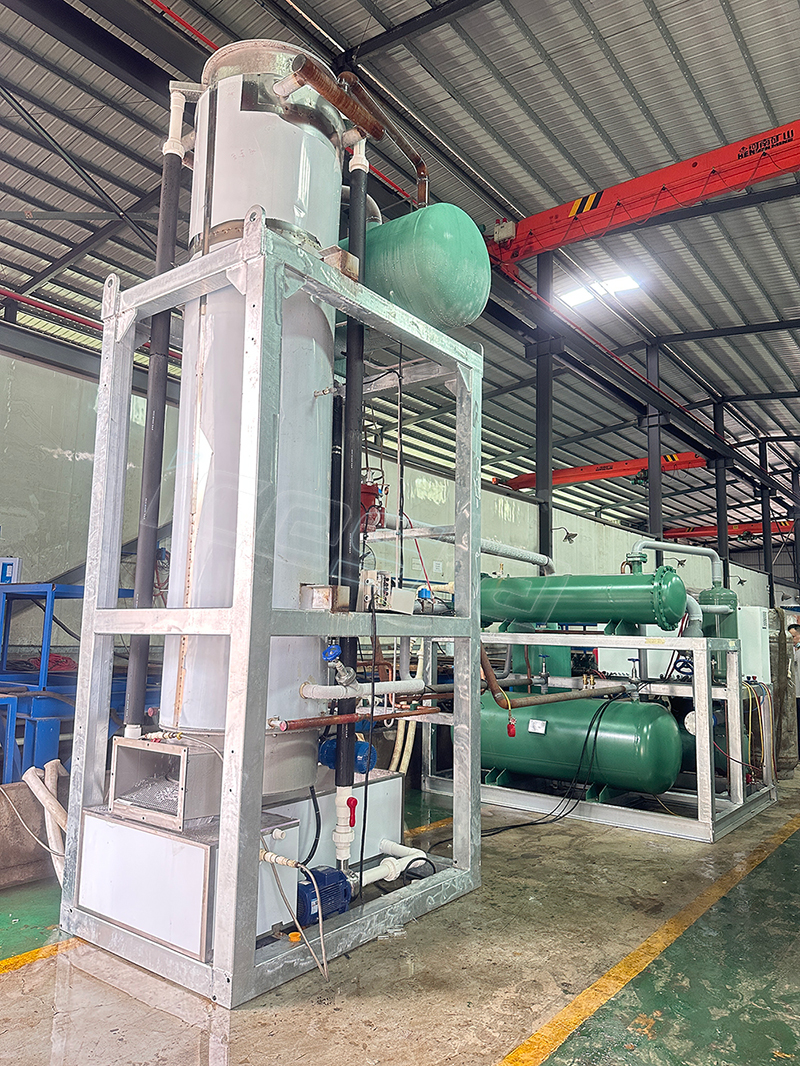

Picture Display

Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful.

Application Industry

ICESTA is providing the world Excelent Tube ice solutions with high ice output, reliableperformance and humanization design.

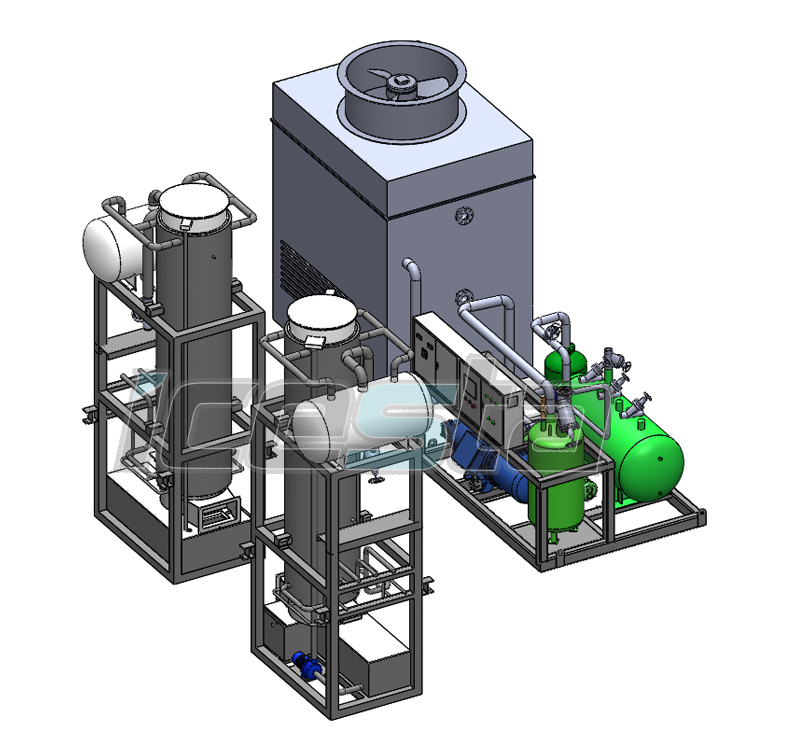

Drawing display

The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.

1. Advantage


2. ADVANTAGES OF ICESTA TUBE ICE PLANTINNOVATIVE DESIGN FOR GENERATOR


3. 1.Innovative manufacturing artwork has been adopted.The ice stripping surface is smooth as a mirror.That has tremen-douslyincreased ice stripping efficiency and energy-efficiency ratio.

2.The ice cuttercan be easily dismantled and replaced as a whole.

3.Compared with peers, ICESTA evaporator can form even water membrane more effectively.That makes more even andcrystal ice tubes

4.The upper and lower freezing water reservoir is openly structured,which helps a lot with cleaning and disinfection.

5.ICESTAice plant adopts an optimizeddriving structuraldesign, which ensures both simplestructure and high reliability.

6. ICESTA customizes a reasonable design of ice plantsuitable for convenient container transportation for oversea clients.

7.Deice just need 130-200s.

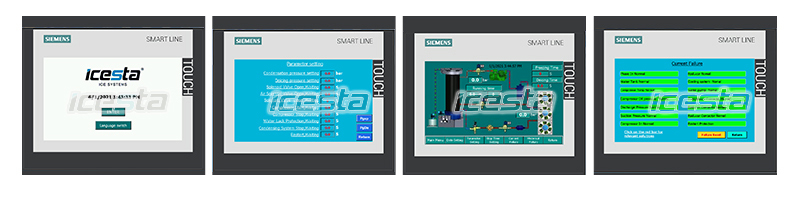

PATENTED H-M INTERACTIVE INTELLIGENTCONTROL SYSTEMWITHToUCH-SCREEN:

1. The working status of the ice system display alive in screen

2. 2.Setting stop-time at will.

3. 3. All possible failure and trouble-shooting is programmed in.

4. 4.Local time could be set

5.


6.

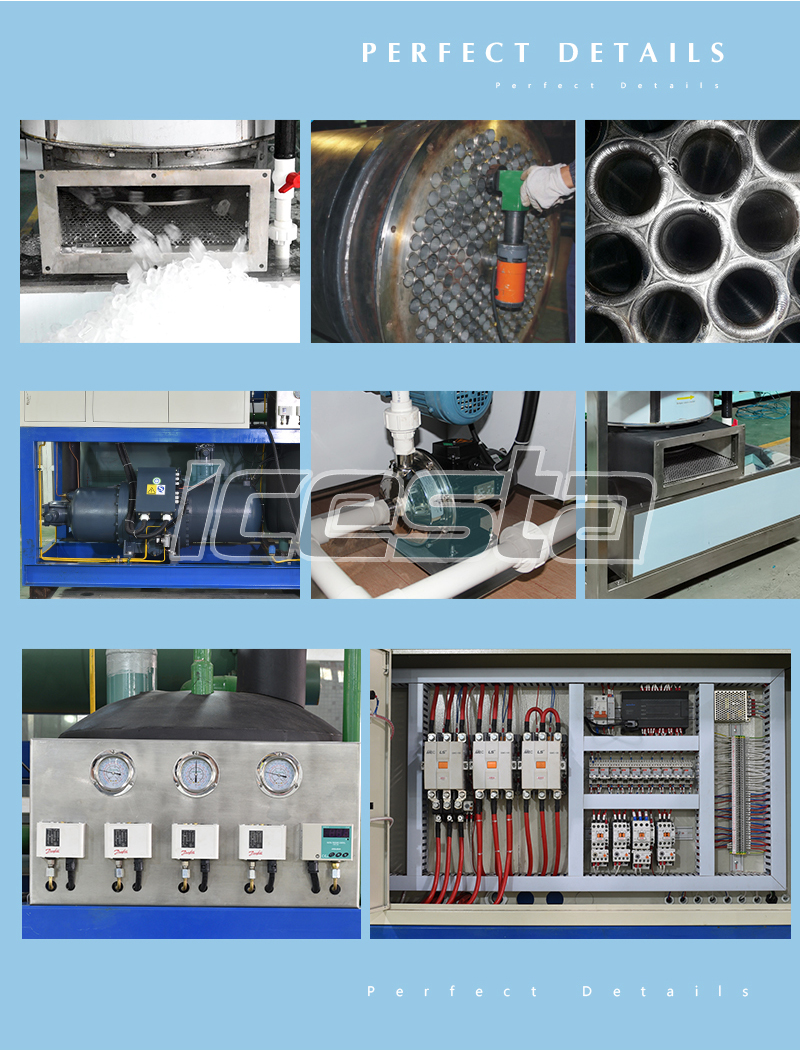

Show Details

All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

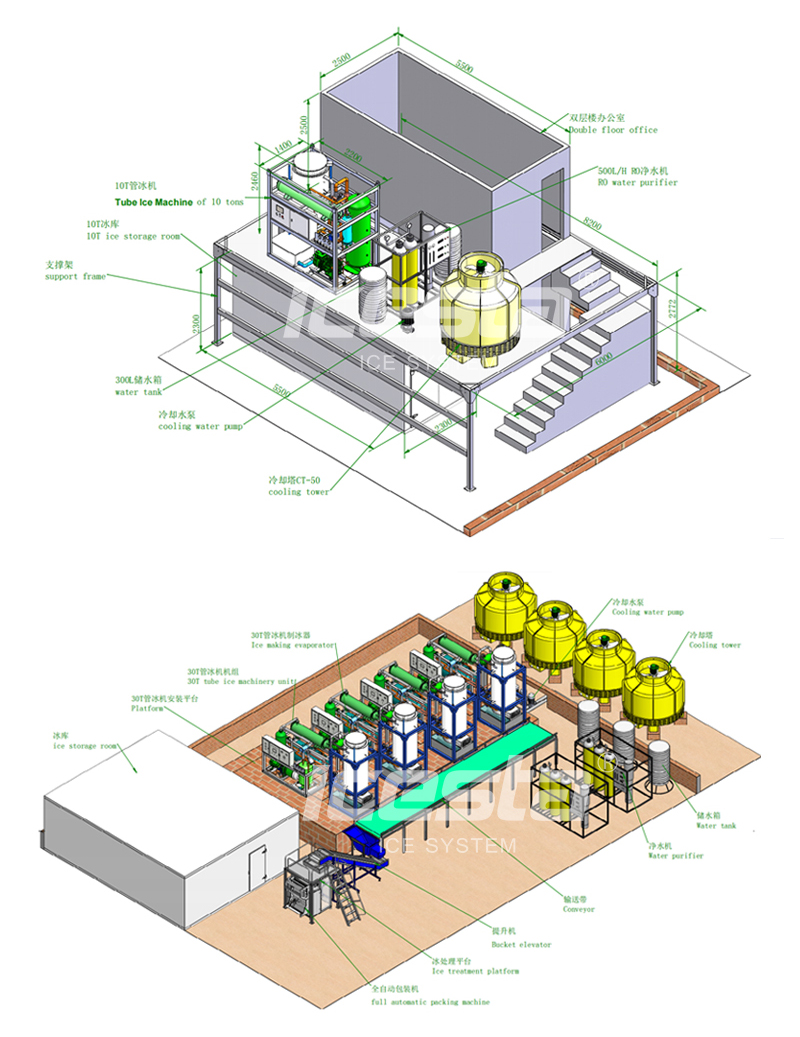

3D diagram display of tube ice machine and office building layout plan

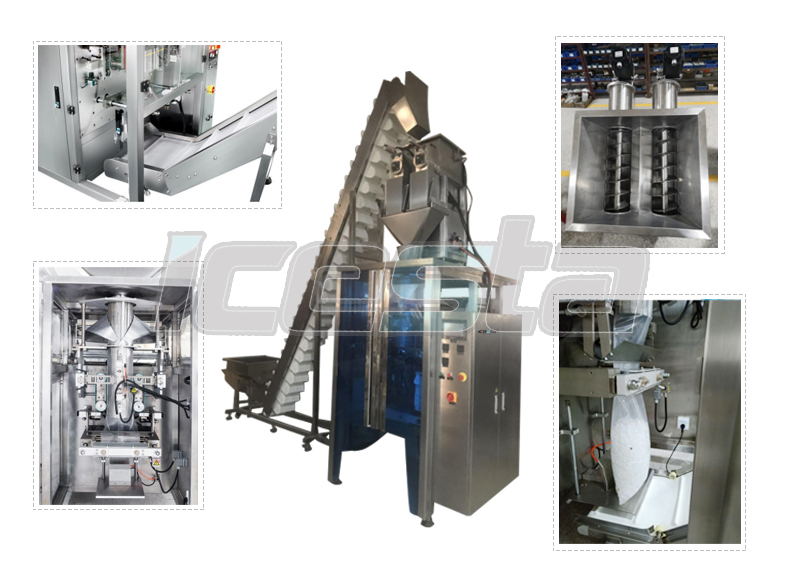

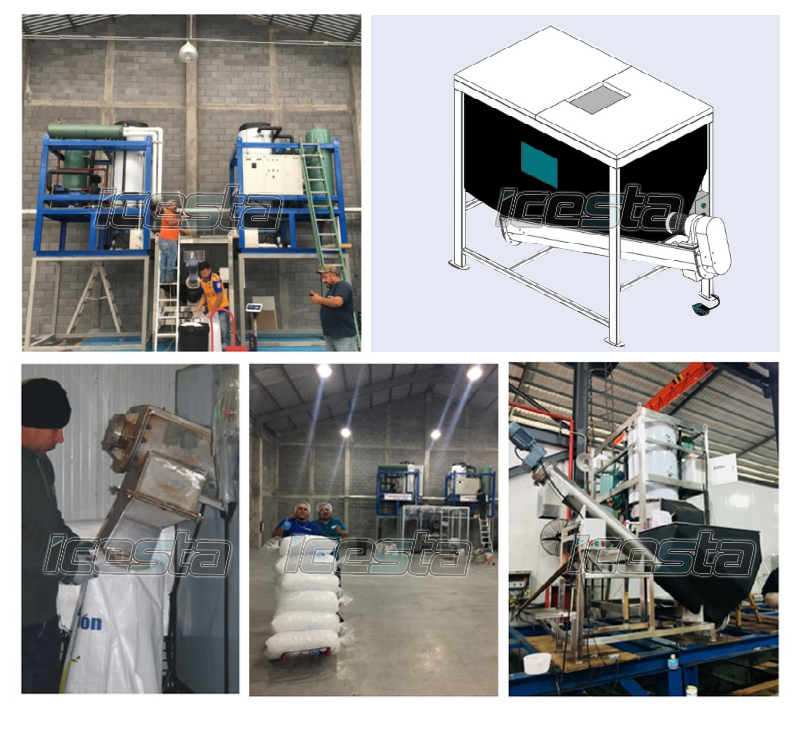

Auxiliary Equipment

Optimal industrial application: lce packing Components:
1.Buffer Storage Bin (ranging from 50OKG to 2000KG)
2.Built-in delivery screw
3.Dual control system (Manual and foot pedal);

Foot pedal can start and stop at will, which is nearly a semi automatic packing machine.

PACKAGE UNIT OF TUBE ICE MAKING, DELIVERING, PACKING,ICE BAGS CONVEYING.

Customer-Oriented design.Our consideration and,innovation reach everywhere.
