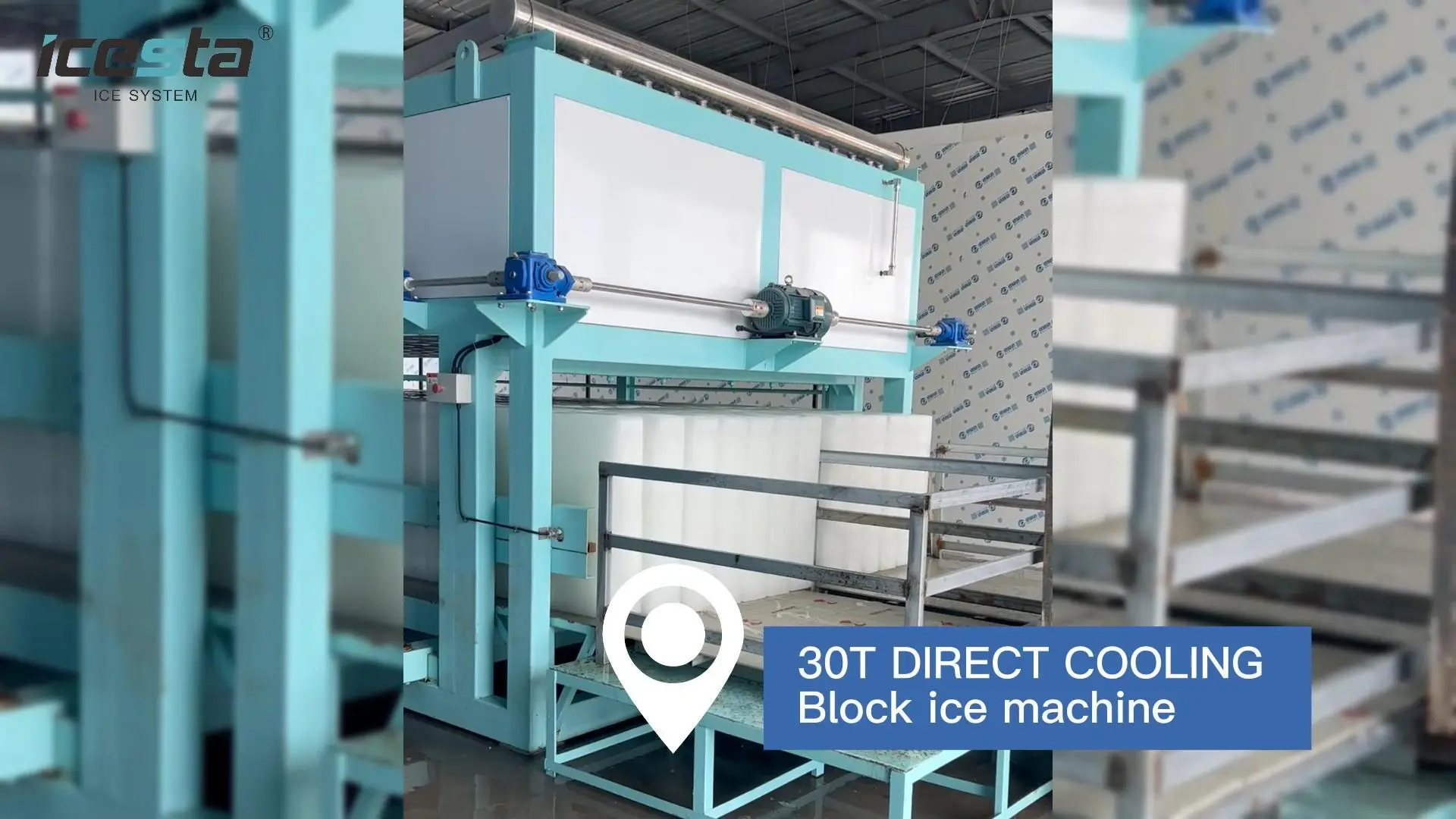

Direct Cooling Block ice machine with 30 tons water cooling 35kg per piece For ice factory
The direct cooling block ice machine is a block ice machine in which the evaporator is made of aluminum alloy, and the refrigerant is directly evaporated and exchanged in the evaporator to make ice without other heat exchange media (such as salt water). Used for aquatic product processing, slaughter processing, vegetable distribution and preservation, supermarket freshness, aquatic product market preservation, marine fishery, etc.
Power: 3P/380V/50Hz
Condenser type: Water cooling
Refrigerant: R404a
Water Pressure: 0.1～0.5Mpa
Ice weight：35kg
Introduction of direct cooling block ice machine
The Direct Cooling Block ice machine is a new type of high efficient Block ice machine，different from the traditional Brine cooling, the evaporator（Block ice moulds） is made of aluminum alloy, the refrigerant evaporates and exchanges heat directly in the evaporator to make ice without salt water,thus the machine has long life-span,never rust in the evaproator. The deicing is semi-automatically without any crane and manual harvest to give users most convenience .
We also provide containerized direct cooling block ice machines and brine block ice machines, and containerized brine block ice machines. Click for details.
Technical Parameters
Ambient temperature 0°C-45°C, water temperature: ≤30°C
Evaporation temperature: -15℃，Condensing temperature：40℃
Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional
Refrigerant：R22、R404A、R507A
Ice weight：5KG-100KG
| Model | ICB20T-R4W | ICB24T-R4W | ICB30T-R4W |
Ice making capacity | 20t/24hrs | 24t/24hrs | 30t/24hrs |
Refrigerating capacity | 193.7kw | 245kw | 345kw |
Compressor power | 86.1kw | 107.9kw | 156kw |
Total power | 99.3kw | 121.1kw | 174kw |
Freezing time | 10 hours/ each time,2 times a day | 10 hours/ each time,2 times a day | 2.5 times a day |
Ice mold quantity | 200pc | 240pc | 341pcs |
Ice weight / piece | 50kg | 50kg | 35kg |
Ice mold size | 410*160*900mm | 410*160*900mm | 320*140*925mm |
Cooling typ | Water cooling | Water cooling | Water cooling |
Machine size | 10333*2672*2520mm (Ice making machine) 3400*1850*1700mm (Refrigeration unit) | 12100*2780*2530mm (Ice making machine) 3550*1850*1800mm (Refrigeration unit) | 12247*2816*2510mm (Ice making machine) 3750*2200*1860mm (Refrigeration unit) |
Show Details
Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful

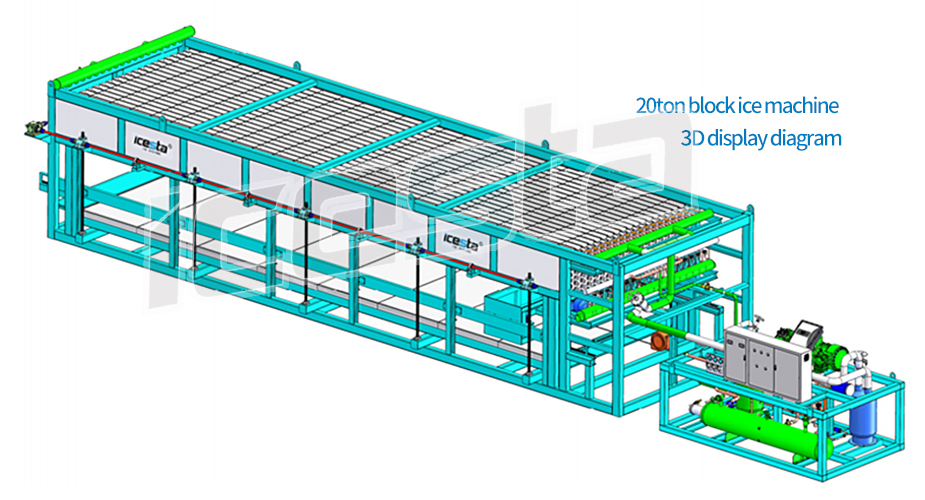

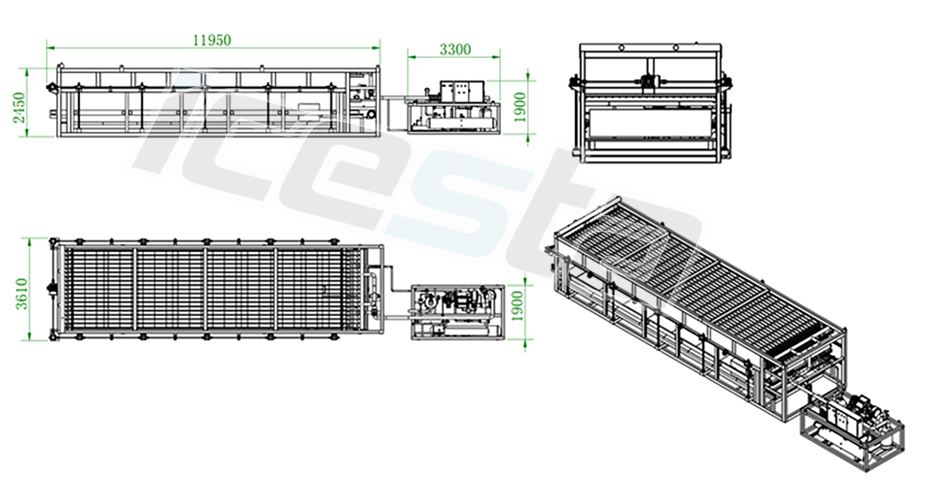

Drawing display
The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.
Advantage
Advantages of direct cooling block ice machine
Because of its low power consumption, ice bricks are not easy to melt, and convenient for long-distance storage, block ice machines are favored by major ice sales factories, cold fresh distribution,ocean fishing and other industries.
◪Energy saving
◪high degree of automation
◪Fast freezing
◪Low operating cost
![Direct Cooling Block ice machine with 30 tons water cooling 35kg per piece For ice factory 14]()
![Direct Cooling Block ice machine with 30 tons water cooling 35kg per piece For ice factory 15]()
![Direct Cooling Block ice machine with 30 tons water cooling 35kg per piece For ice factory 16]()
![Direct Cooling Block ice machine with 30 tons water cooling 35kg per piece For ice factory 17]()
◪Save civil construction costs
◪Environmental protection and hygiene
◪Easy to transport
◪long lasting
![Direct Cooling Block ice machine with 30 tons water cooling 35kg per piece For ice factory 18]()
Application industry
More and more cooling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.
![Direct Cooling Block ice machine with 30 tons water cooling 35kg per piece For ice factory 19]()
Ice Crusher
The ice crusher is an ice-breaking device specially designed for the direct cooling block ice machine, which can crush 5kg-100kg of block ice. The ice crushing speed is fast, it only takes 3-4 seconds to crush 1 piece of ice And the crushed ice particles are uniform. The whole ice crusher is made of 304 stainless steel, which has strong anti-corrosion properties and has a service life of more than 10 years.
![Direct Cooling Block ice machine with 30 tons water cooling 35kg per piece For ice factory 20]()
Block ice conveying device:
In order to provide customers with the greatest convenience, the ICESTA technical team has continuously developed various convenient supporting devices. The conveying device is ICESTA's original creation,which can automatically slide out the ice cubes and easily lift them to the supporting container or ice storage.
Engineering Case
Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions.
Customer Case Study of Fujian
Ice Selling Factory
Yunnan vegetable
base site case
pictures
Site case of Taiwan
Fishery Company
Large-scale ice selling
plant project in
southern China
FAQ
1. Questions before quotation
A. Would you make ice from seawater, saltwater or freshwater?
B. Where and when would the machine be installed roughly?The ambient temperature and water inlet temperature?
C. What’s the power supply?
D. What is the application of the flake ice produced?
E. Which cooling mode would you prefer to? Water or air ,Evaporative cooling?
2. Installation & commissioning
A. Installed by customers according to the manuals, online instructions and live video conference of ICESTA.
B. Installed by ICESTA engineers.
a. ICESTA would arrange 1~3 engineers based on the projects to the installation sites for the final supervision of all
installations and commissioning.
b. Customers need to provide local accommodation and round-trip ticket for our engineers and pay for the commissions. US Dollars
100 per engineer per day.
c. Power, water, installation tools and spare parts need to be ready before ICESTA engineers arrive.
3. Warranty & Technical support
A. 1 year after Bill of Lading date.
B. Any failure occurred within the period due to our responsibility, ICESTA will supply the spare parts for free.
C.ICESTA provide full technical support and training courses after equipment installation and commissioning.
C. Permanent technical support & consultation all life long for the machines.
D. Over 25 engineers for instant after-sale services and more than 15 are available for serving overseas.
365 days X 7 X 24 hours phone / EMAIL assistance
4. Failure Claim procedures
a. Detailed written failure description is required by fax or by mail, indicating the relevant equipment information and detailed
description of failure.
b. Relevant pictures are required for failure confirmation.
c. ICESTA engineering and after-sales service team will check and form a diagnosis report.
d. Further trouble-shooting solutions will be offered to customers within 24 hours after receiving the written description and pictures
