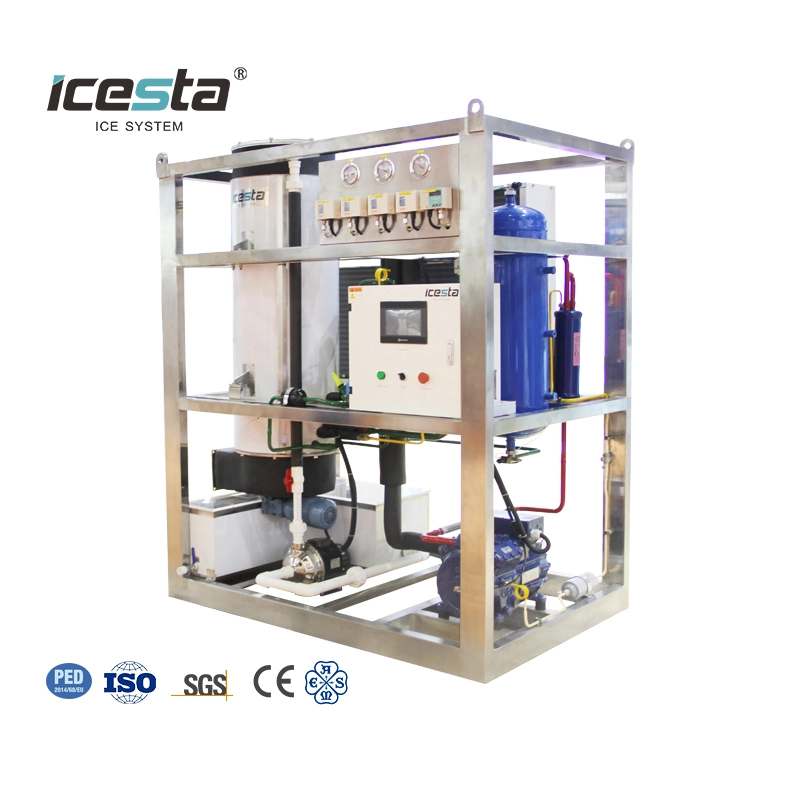

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks

High quality(316L & 304)stainless steel for all water and ice contact surfaces providing corrosion resistance, all the material meet the HACCP request.

We supply four standard ice tubes:422×28,O29×35,$35x45,$42×55(mm)

Daily output is ranging from 1ton to 100tons per day.

Icesta Tube Ice making Machine 3 ton for drinking compared with similar products on the market, it has incomparable outstanding advantages in terms of performance, quality, appearance, etc., and enjoys a good reputation in the market.Brother Ice System summarizes the defects of past products, and continuously improves them. The specifications of Icesta Tube Ice making Machine 1 10 15 ton for drinking can be customized according to your needs.

Inquiry

Write a Review

The main material of Brother Ice System is an elastomer. The elastomer material has been strictly selected before it goes into the factory.

Product Introduction

ICESTA is providing the world Excellent Tube ice solutions with high ice output, reliable performance and humanization design.

Tube ice is in the shape of crystal and powderless tubes. Comprared with flake ice, the melting time of tube ice is longer, and it is more suitable for cooling in an unisulated environment. Tube ice is comparatively solid and less prone to ice lumps, so it is more suitable for long distance delivery.

Technical Parameters

* The technical data based on 30°Cambient temp.20°Cwater inlet temp.
* The evaporating / condensing temp.:-15C/40°C(Air-coole) 38°C(Water cooled)
* Power supply: 3P/380V/50HZ(3P/220/60HZ,3P/380V/60HZ,3P/460V/60HZ Optional)
* Refrigerant: R404A(R22 R17 R507 is optional)
* Ice tube diameter: Φ22,Φ29,Φ35,Φ42 is optional

1t，2t，3t，5t/24h

Model	IT1T-R2/4A	IT2T-R2/4A	IT3T-R2/4A	IT5T-R2/4A
Ice output	1t/24hrs	2t/24hrs	3t/24hrs	5t/24hrs
Ice tube diameter	Φ29	Φ29	Φ29	Φ29
Cooling Capacity	7.37kw	18kw	24.9kw	45kw
Input power	4.81kw	8.56kw	11.89kw	20.95kw
Compressor input power	3.66kw	7.04kw	9.77kw	17.3kw
Ice cut reducer input power	0.18kw	0.37kw	0.37kw	0.75kw
Water pump input	0.37kw	0.55kw	0.55kw	1.1kw
Ice machine weight	950KG	1150KG	1280KG	1600KG
Ice Machine Diameter	1600X1100X1970mm	1700X1200X2200mm	1800X1200X2220mm	2000X1400X2500mm

Application Industry

ICESTA is providing the world Excellent Tube ice solutions with high ice output, reliable performance and humanization design.

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 8

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 9

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 10

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 11

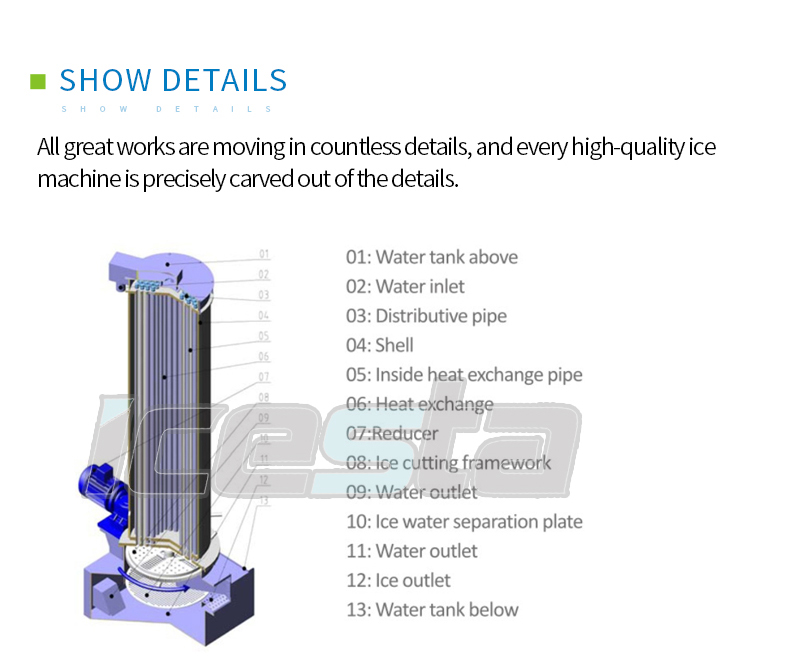

Show Details

All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 12

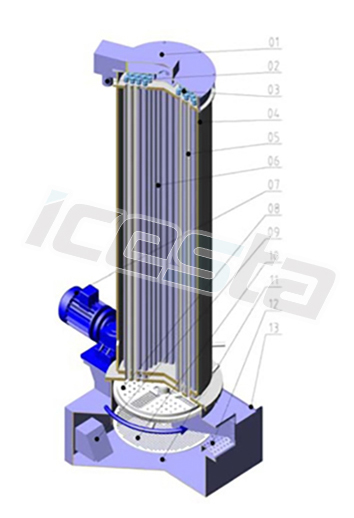

01: Water tank above

02: Water inlet

03: Distributive pipe

04: Shell

05: Inside heat exchange pipe

06: Heat exchange

07:Reducer

08: lce cutting framework

09: Water outlet

10: Ice water separation plate

11: Water outlet

12: Ice outlet

13: Water tank below

Show Details

All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 14

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 15

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 16

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 17

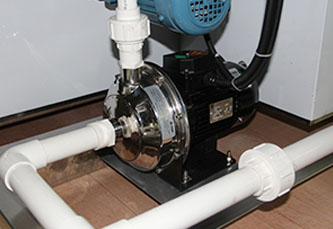

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 18

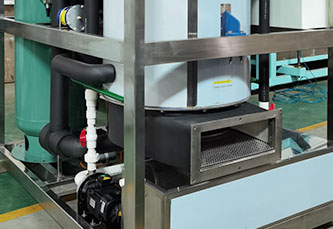

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 19

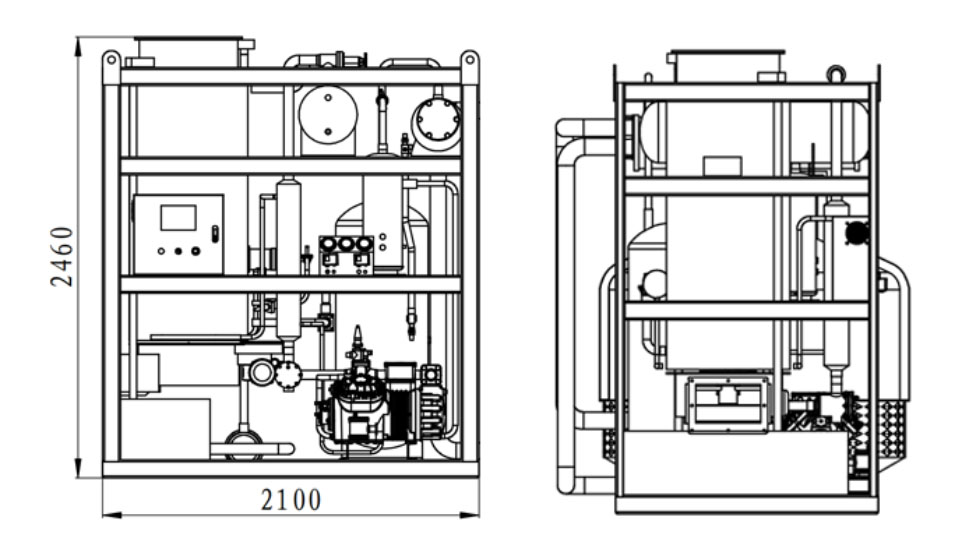

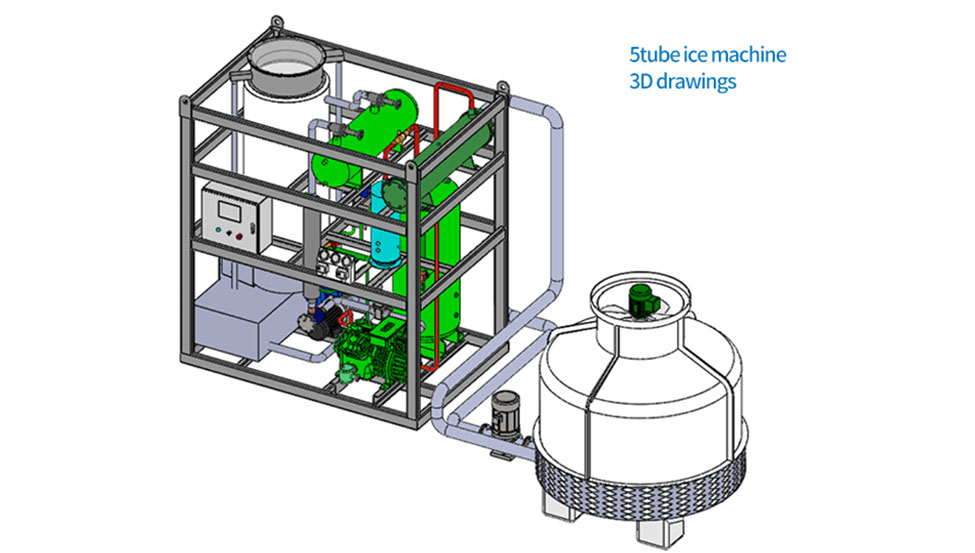

Drawing Display

The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 20

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 21

Advantage

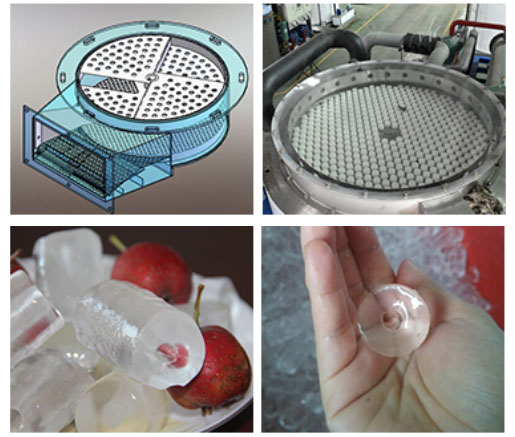

ADVANTAGES OF ICESTA TUBE ICE PLANTINNOVATIVE DESIGN FOR GENERATOR

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 22

1. Innovative manufacturing artwork has been adopted.The lce stripping surface is smooth as a mirror. That has tremendouslyincreased ice stripping efficiency and energy-efficiency ratio.
2. The ice cutter can be easily dismantled and replaced as a whole.
3. Compared with peers,ICESTA evaporator can form even water membrane more effectively.That makes more even and crystal ice tubes
4. The upper and lower freezing water reservoir is openly structured, which helps a lot withcleaning and disinfection.
5. ICESTA ice plant adopts an optimized driving structural design, which ensures both simplestructure and high reliability.
6. ICESTA customizes a reasonable design of ice plant suitable for convenient containertransportation for oversea clients.
7. Deice just need 130-200s.

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 23

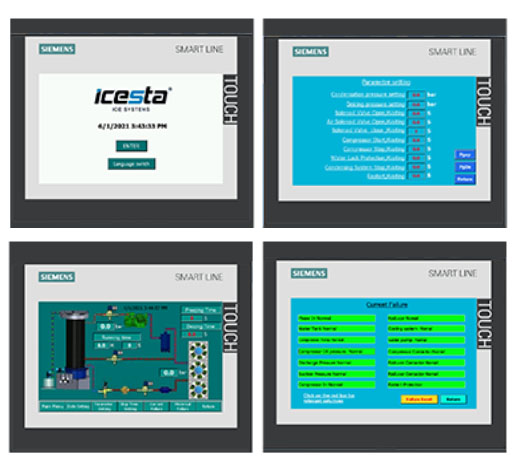

PATENTED H-M INTERACTIVE INTELLIGENTCONTROL SYSTEM WITH TOUCH-SCREEN:

1.The working status of the ice system display alive in screen.
2.Setting stop-time at will.
3. All possible failure and trouble-shooting is programmed in.
4.Local time could be set.

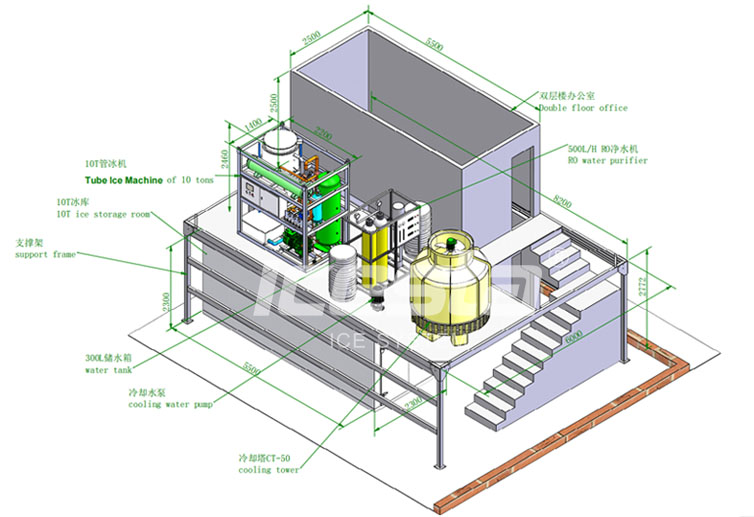

3D diagram display of tube ice machine and office building layout plan

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 24

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 25

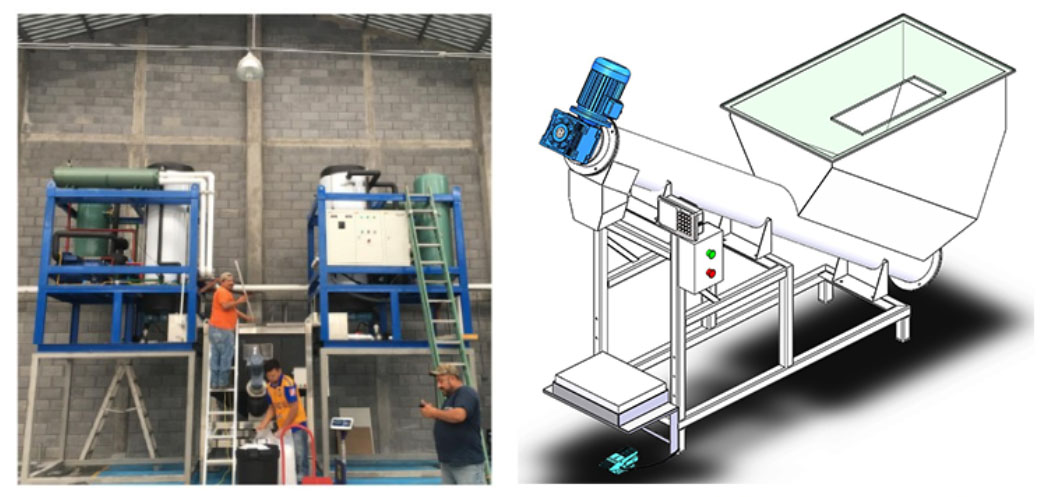

Auxiliary Equipment

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 26

Optimal industrial application: lce packing

Components:

1.Buffer Storage Bin (ranging from 50OKG to 2000KG)
2.Built-in delivery screw
2.Built-in delivery screw
3.Dual control system (Manual and foot pedal); Foot pedal can start and stop at will, which is nearly a semi automatic packing machine.

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 27

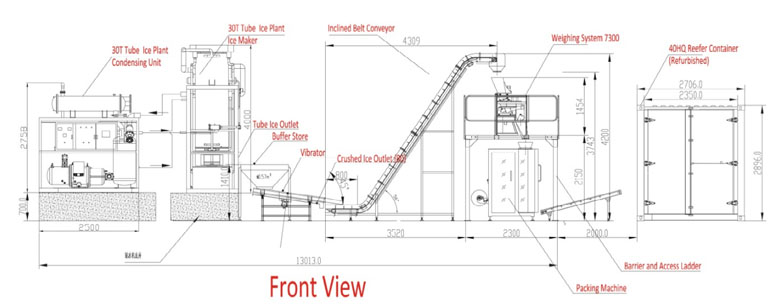

PACKAGE UNIT OF TUBE ICE MAKING, DELIVERING, PACKING,ICE BAGS CONVEYING.

Customer-Oriented design.Our consideration and,innovation reach everywhere.

Engineering Case

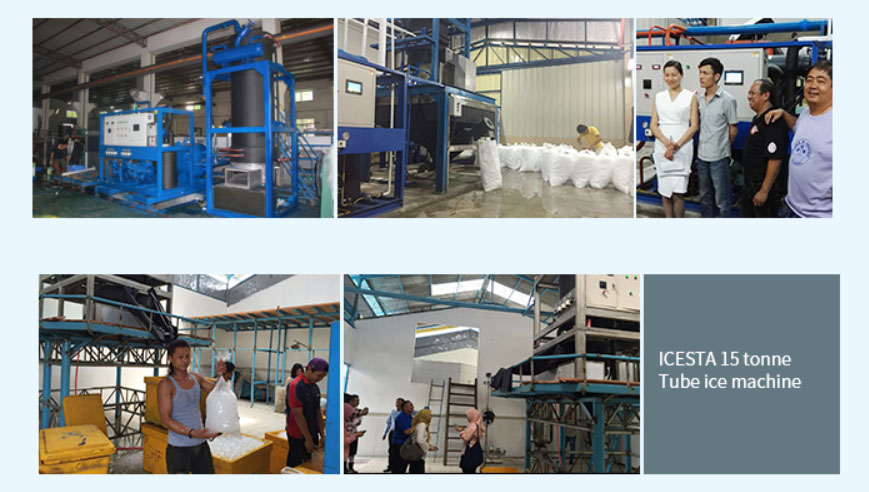

30ton ice tube machine with ice dispenser (semi-automatic ice packing machine.)/ Philippines.

Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions.

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 28

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 29

Tube Ice making Machine with 3 ton automatic High Productivity Long Service Life for drinks 30

About ICESTA

20 years dedication in ice making technology to create excellence.

Shenzhen Brother Ice System Co., Ltd. ( ICESTA Brand), a well-known ice machine manufacturer and industry leader and pioneer in China.The product covers flake ice /Block ice machine, Tube ice /slurry ice/plate ice/cube ice machines, water
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc

Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
16-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.

Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc

Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate

Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.
