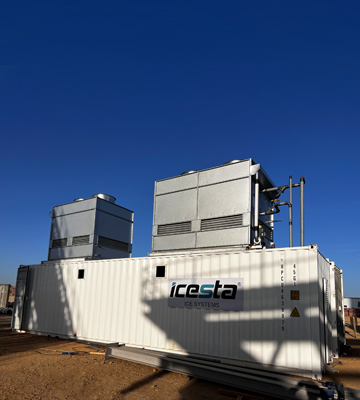

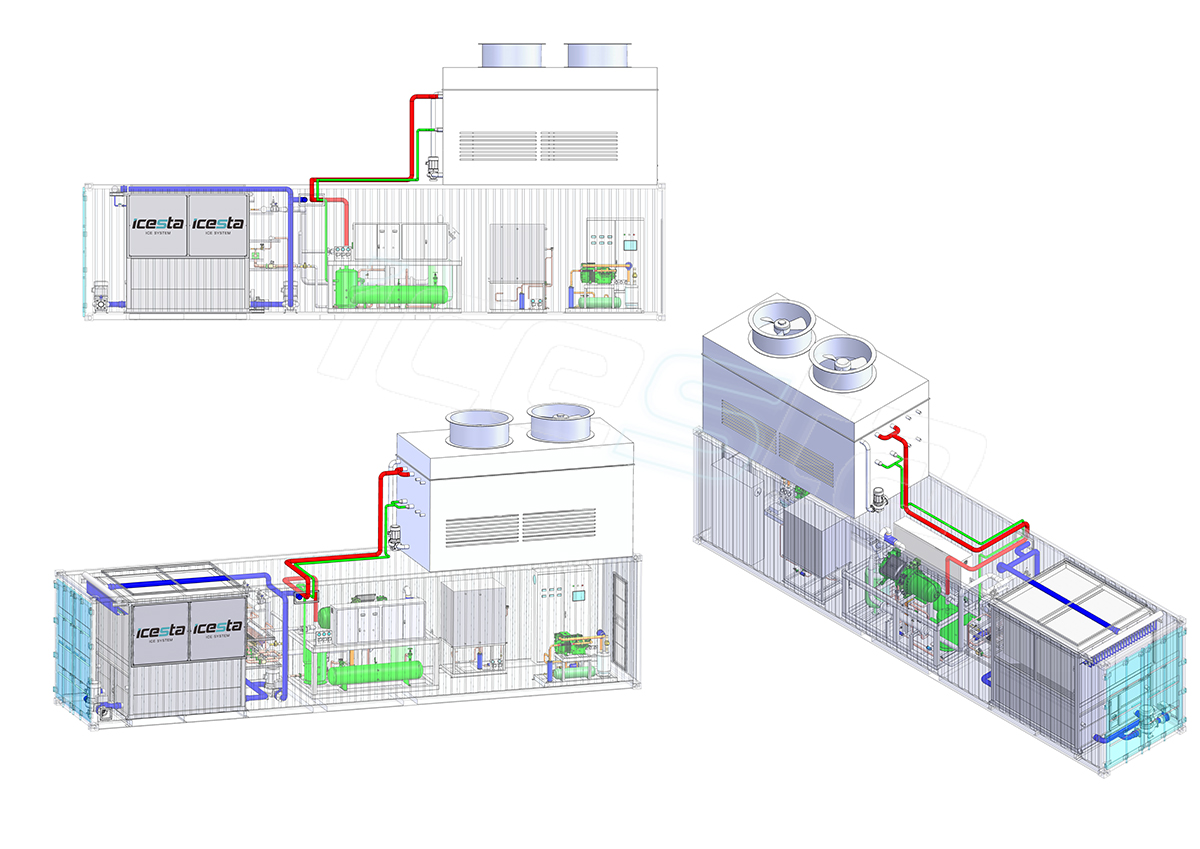

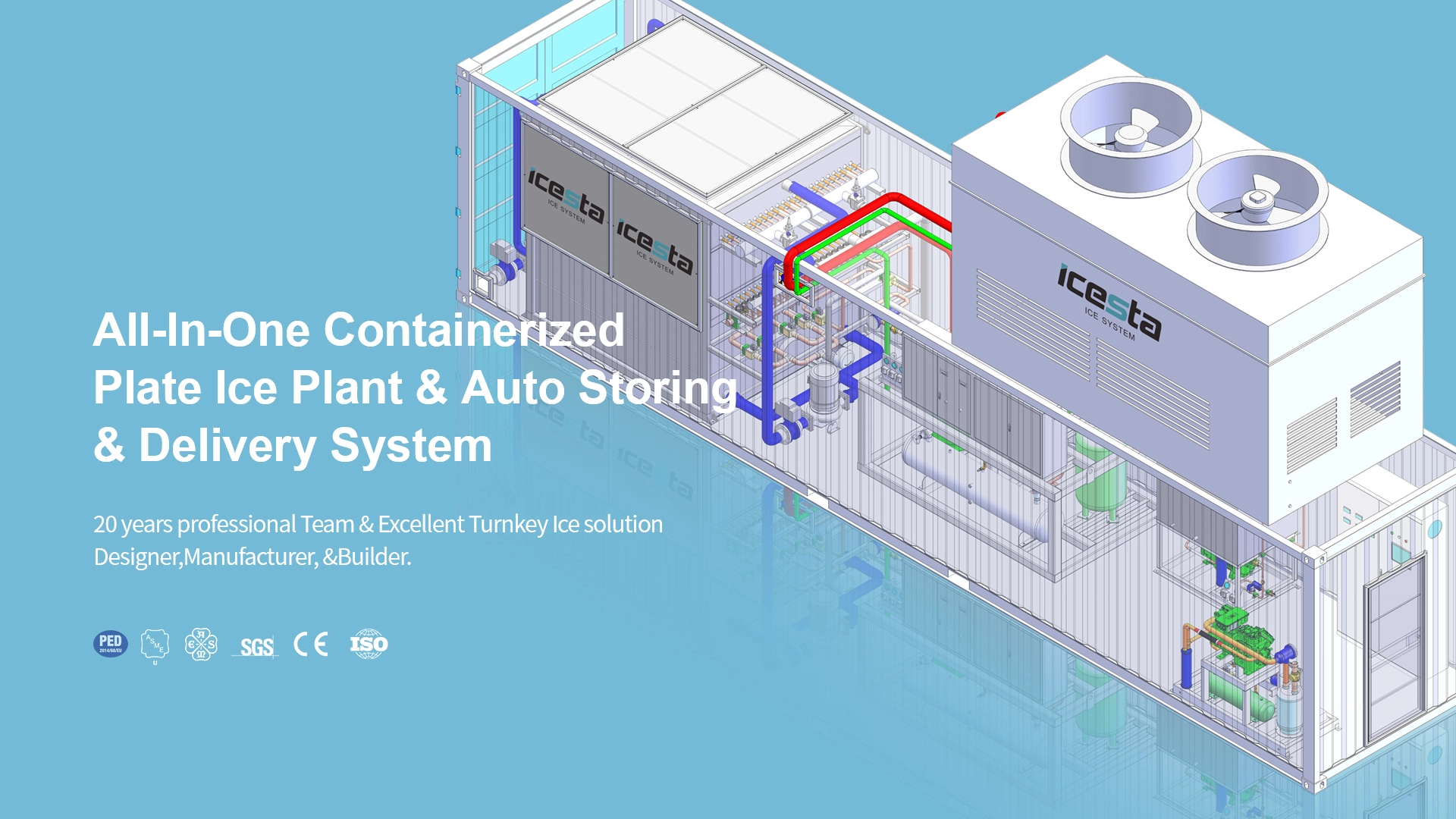

All-In-One Containerized Plate Ice Plant & Auto Storing & Delivery System with 30t - 80t For concrete cooling

1. CE Certification.
2. SS304 plate evaporator, SS304 frame, ice sanitary and edible.
3. Automatic producing process by PLC control, lower the cost on manpower.
4. Thickness of ice is adjustable, from 8mm to 10mm. 8mm is the one our customer like more.
5. High efficiency and energy saving, only consumes about 60KW.H/ton ice.
6. Mainly used in marine products preservation.
7. Long service life.
8. One year warranty, and lifetime service available.

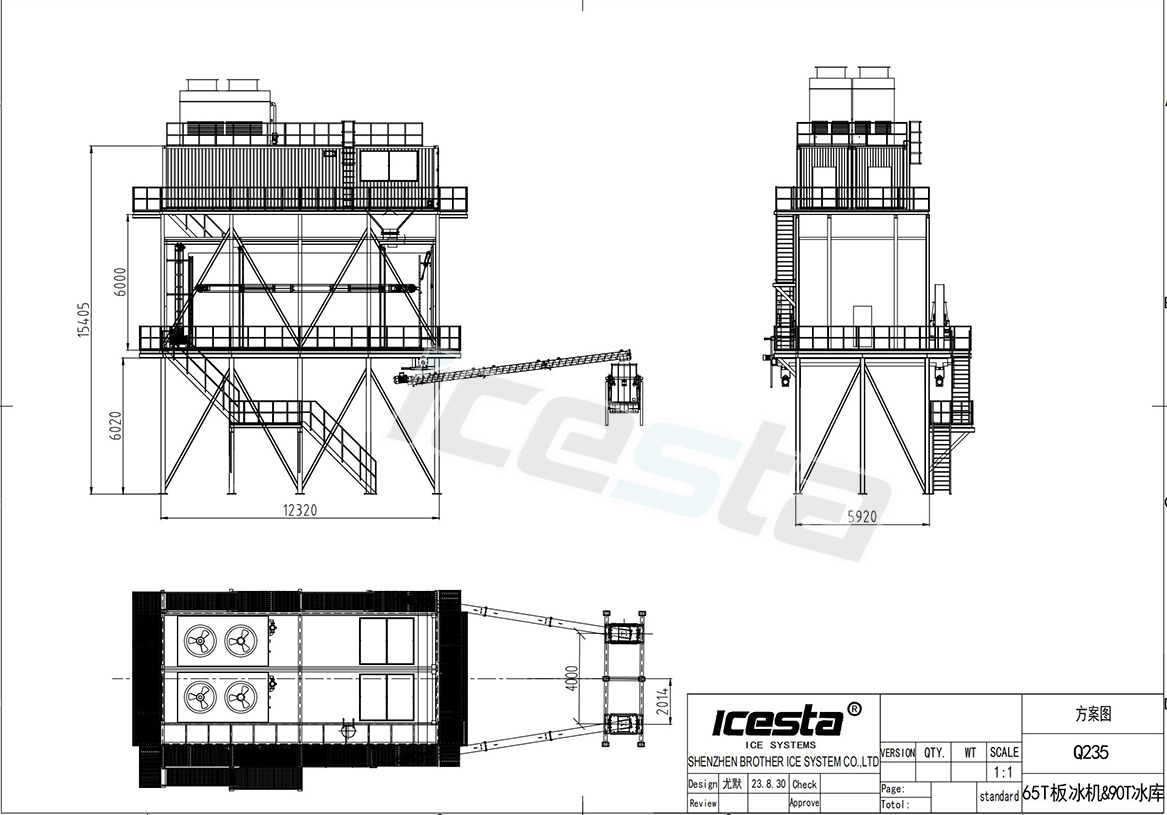

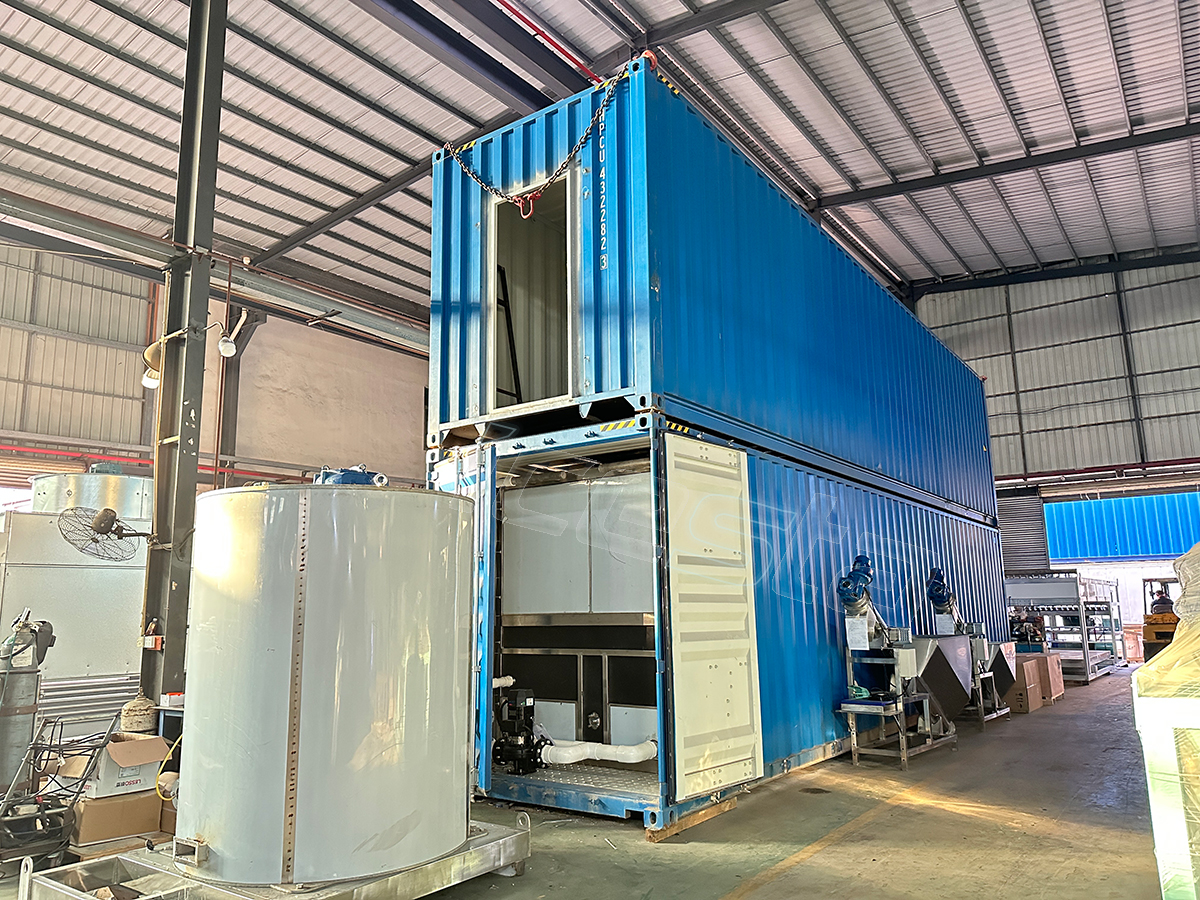

1 .Mobile type, starting from 20 metric tons up to 100 metric tons

2.Robust steel used for the ice rake assembly and Ice Rake Hoist System

3.Reliable Sensors and Limit Switches to control the movement of Auto Ice Storage Room Automatically

4.Efficient Air cooler to keep the room temp down to -l0 degrees

5.100- 150 mm thickness Pancls keep the cold inside the room

1.Robust design suitable for severe working conditions

2.Single and Dual Screw Design, with a designed delivery rate of 25-40T per Hour

3.Renowned Gearbox with Motor ensures the high quality of ICESTA Brand.

4.Single or Dual lce outlet for one or two ice outlet, which can deliverice at sametime to twin batch plants.

5.Stainless material or Galvanized Steel optional.

1. Environmental friendly refrigerants - R404A and R407C.

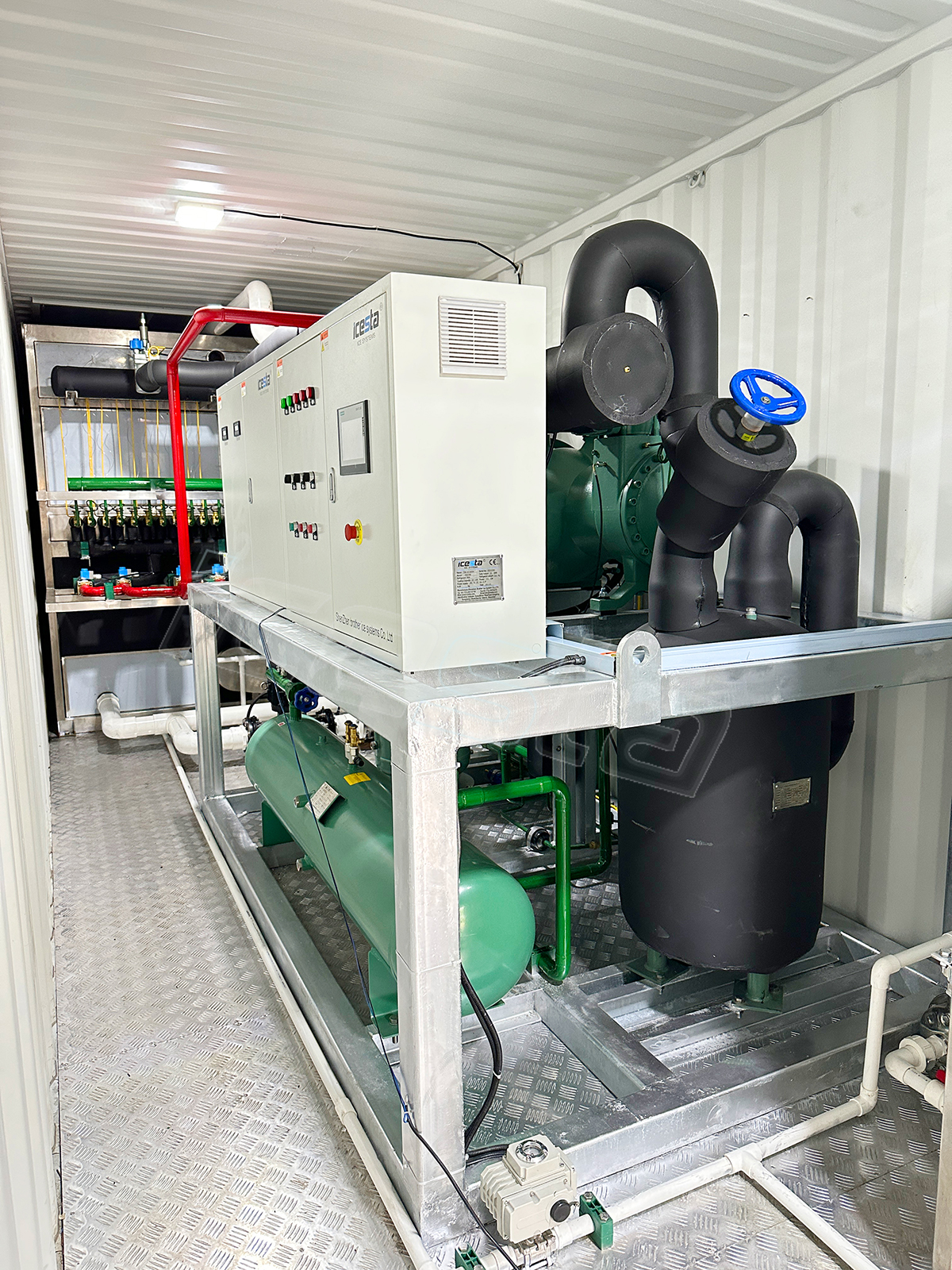

2. Multi-stage cooling from +45℃ down to less than 1℃ by 2 semihermetic screw/reciprocating compressors with economizer performance.

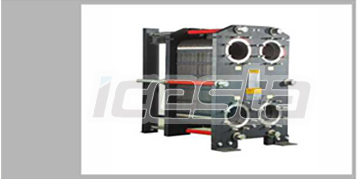

3.Plate heater exchanger as evaporators (corrosion-free) for high-efficiency heat transfer.

4.Stainless Ice tank (corrosion-free) for the ice bank system.

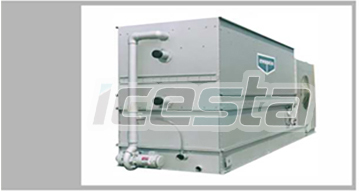

5.Evaporative condensers (corrosion-fee) for High efficiency heat rejection.

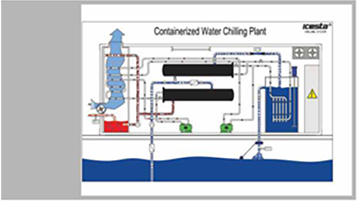

6.With our special designed multi-stage cooling system for fresh water cooling of concrete batching plants extraordinary high COP’ s can be achieved;

Even under the most severe climatic conditions it is possible to cool water from practically any temperature down to 35℃ within a cooling fan without the involvement of a refrigeration system which reduces the actual cooling capacity of the compressors by 20 %. Thus this refrigeration capacity of the first stage is free of charge.

Furthermore, it is much more efficient (by 25 %) to produce refrigeration capacity at an evaporation temmperature of +7℃ than at 0 C. Therefore the water is cooled from 35℃ down to 2℃ in the plate heat exchanger of the second stage by the first compressor.

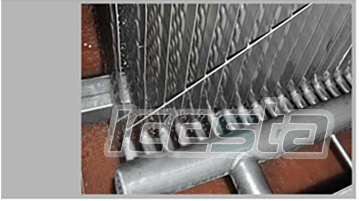

Finally in the Third stage the water is cooled from 2℃ down to less than 0.5°C in our special “ice bank system” by the second compressor. This system consists of a stainless steel water tank in which film heat exchanger is installed. Around these heat exchanger ice can be accumulated without destroying the system. The water is circulated around these heat exchanger covered slightly with ice.In that way the water temperature is between 0℃ and 1℃
