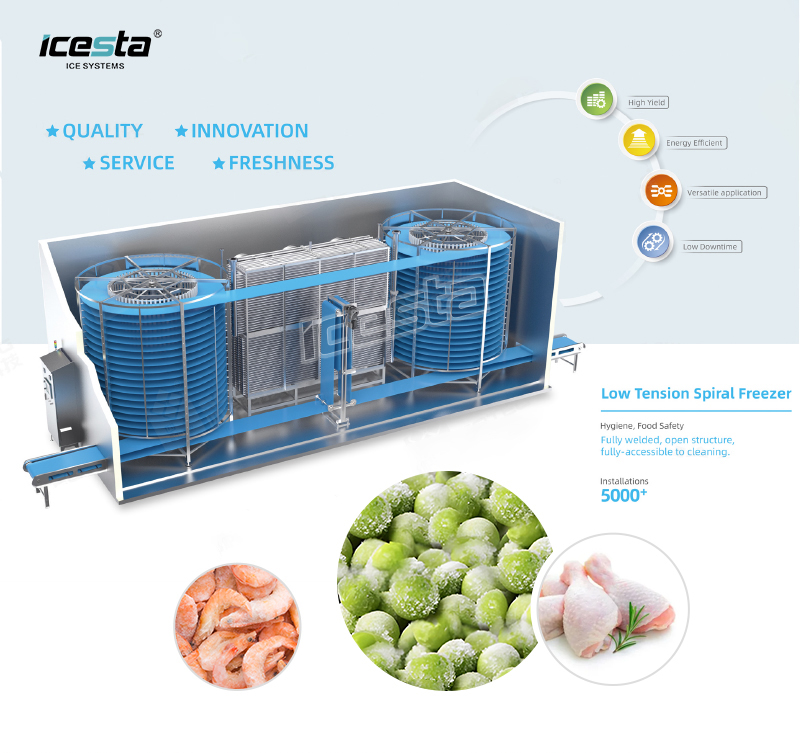

The main features of the spiral freezer are:
1. Space saving: The spiral design allows for vertical stacking during the freezing process, optimizing the footprint while handling large quantities of products.
2. Continuous operation: The product is fed into the conveyor belt, which spirals through the freezing chamber, allowing the food to flow continuously and thus improving processing efficiency.
3. Rapid freezing: Spiral freezers usually use quick freezing technology to quickly reduce food temperature, maintain texture, and minimize ice crystal formation.
4. Temperature control: They adopt precise temperature and airflow control design to ensure consistent freezing effect for all products.
5. Multifunctionality: These quick freezing machines can process a variety of foods, including meat, seafood, baked goods, and ready to eat foods.
6. Efficient energy utilization: Advanced design features such as insulated walls and efficient airflow systems help reduce energy consumption.
The main features of the spiral freezer are:
1. Space saving: The spiral design allows for vertical stacking during the freezing process, optimizing the footprint while handling large quantities of products.
2. Continuous operation: The product is fed into the conveyor belt, which spirals through the freezing chamber, allowing the food to flow continuously and thus improving processing efficiency.
3. Rapid freezing: Spiral freezers usually use quick freezing technology to quickly reduce food temperature, maintain texture, and minimize ice crystal formation.
4. Temperature control: They adopt precise temperature and airflow control design to ensure consistent freezing effect for all products.
5. Multifunctionality: These quick freezing machines can process a variety of foods, including meat, seafood, baked goods, and ready to eat foods.
6. Efficient energy utilization: Advanced design features such as insulated walls and efficient airflow systems help reduce energy consumption.
Technical Date
Structure | Double spiral freezer |
| Drum Diameter | 1620~5800mm |
| Layers | 6~40 |
| Insulated Enclosure | PIR/PU,SS skin at both sides |
| Mesh Belt Width | 520~1220mm |
| Infeed length | 500mm |
| Outfeed length | 500mm |

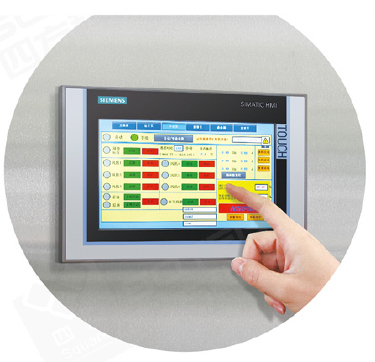

| Control panel | PLC touch screen, SS panel |
| Refrigerant | Freon, Ammonia, CO₂ |
| Evaporator | Al/SS tube, aluminum fin, variable fin pitch |
| Defrost | Water/hot gas/ADF optional |
| Freezing\cooling time | Stepless variable frequency adjustable |

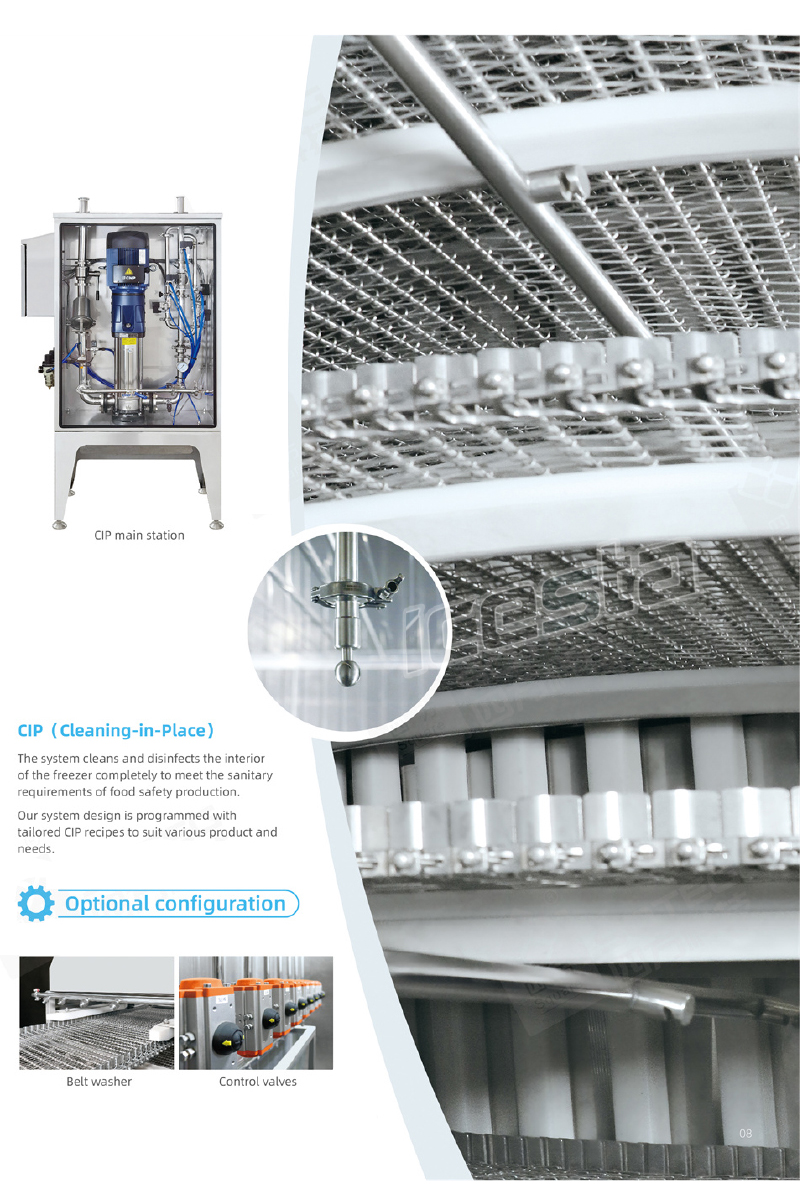

| Cleaning | Manual\ Belt Washer\ ClP |
| Freezing capacity | 200 to 10000kg/h |

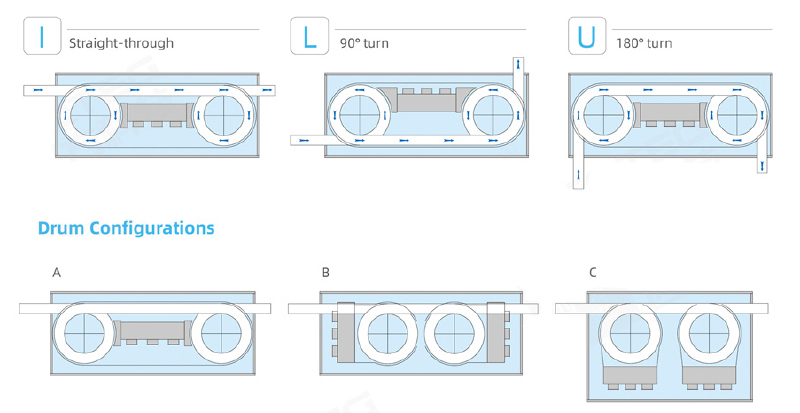

Infeed/ Outfeed Configurations

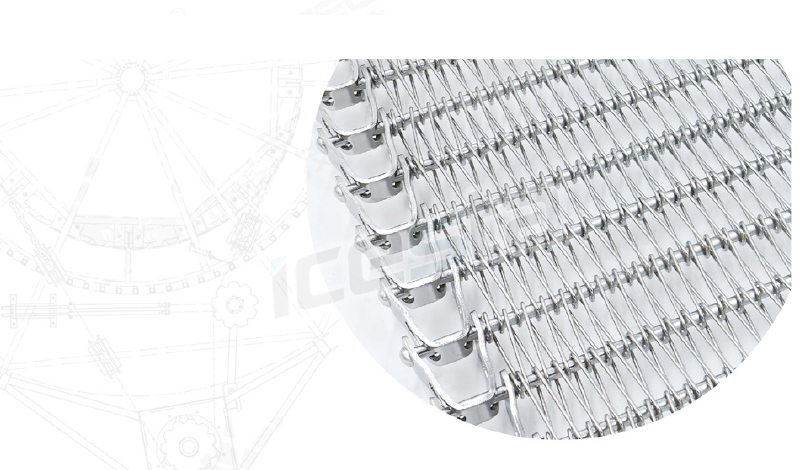

Stainless Steel Mesh Belt
SUS304 food-grade spring wire, high strength, 8–10 years of service life. Open structure, easy to clean, suitable width: 400–1372mm. Optional edge guard board to prevent products from dropping. High ventilation, high efficiency.

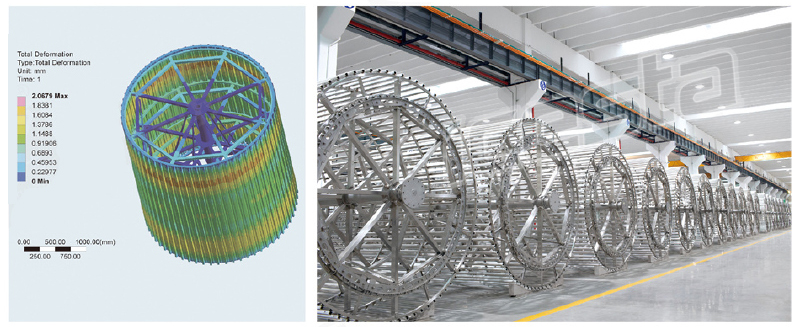

Finite Element Analysis
When Designing a spiral freezer, structural analysis is performed to ensure its structural integrity during operation

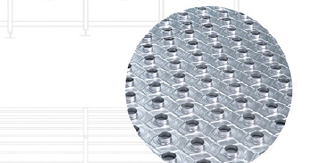

Tube material: Stainless steel, Aluminum Fin material: Aluminum
Insulated enclosure
Continuous PIR panel fabrication line from German Hennecke.
50mm to 250mm thick.
Limited combustibility.
Fully welded stainless steel enclosure available as option.
Fully welded floor
Modular stainless steel fully welded floor, leak proof.
Sloped floor, fast drainage through four drains at the corners. Easy Access.

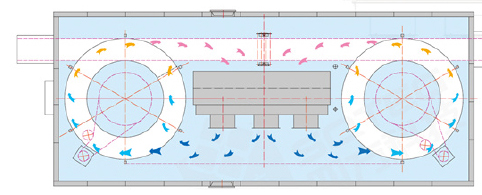

Air Flow Design

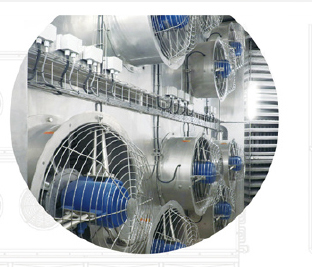

The cold and high velocity air flow is guided with the air baffles evenly through the product area. Minimum food dehydration, best heat transfer. Air shrouds provided to minimize cold loss at the opening of infeed and outfeed. Spacious access inside freezer for maintenance andcleaning personnel.

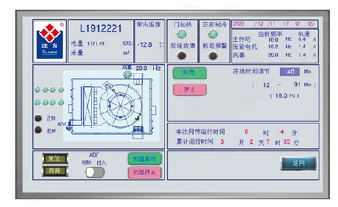

Intelligent, User-Friendly, Network
The ADF blows pulses of pressurized air of high velocity repeatedly over the evaporator fins while the products continue to run in the freezer. The freezer inside temperature is more stable because of less frost on the fin. Thanks to longer runtime, the production output isincreased.
Optional configuration
