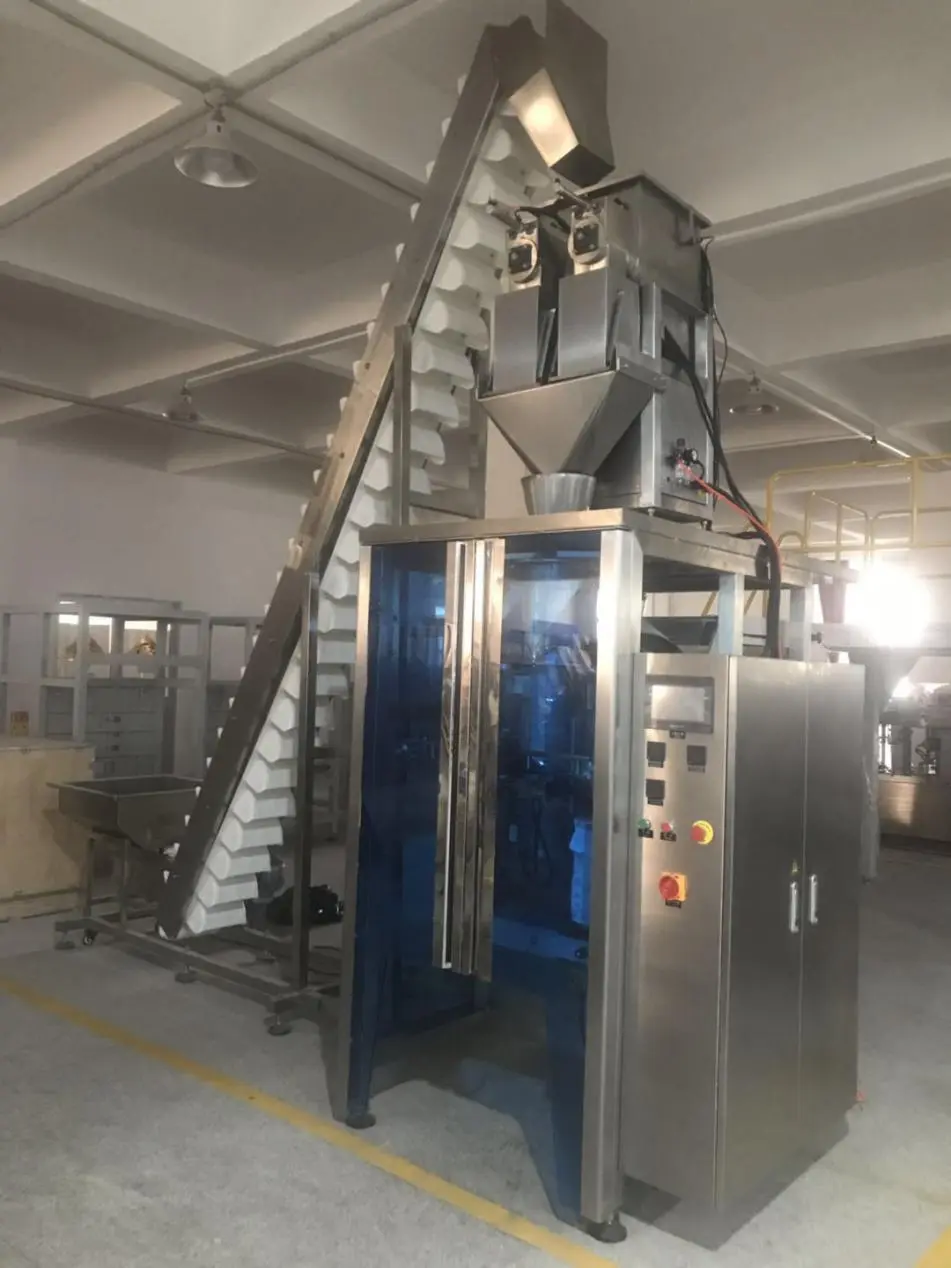

Full Automatic Vertical Ice Tube Packing Machine with Two Heads Screw Weighing Device

Using smart servo technology

Suggested packaging material：Laminated Film

Suggested film thickness: .0.08-0.15mm(depend on the weight of ice per bag)

Reference Picture

Whole machine including:

1.SK-L720 basic packer

2.Material conveyor

3.Two heads screw weighing device

4.Finished bags conveyor

Each equipment name and working process:

SK-L720 Whole machine Processing:

①Vibrating feeding machine: Workers pull product into the hopper, vibrating product into each small hoppers; （Cancelled）

② Z type aterial Conveyor: Elevating the ice to the top of 2 heads screw weighing device ;

③2 heads screw weighing device: Automatic weighing target weight and filling into bags;

④ 720 basic packer: Forming bags, sealing, packing, printing date in one operation;

⑤Finished bags conveyor:Conveying finished bags output.

Application:

It’s special for metering the ice cube, ice tube, regular shapes materials.

Features:

1. Full-automatic Weigh-Form-Fill-Seal type, efficient and simple to use.

2. Use famous brand electric and pneumatic components, stable and long life circle.

3. Use superior mechanical components, reduce the wear out loss.

4. PLC control with stable and high accuracy output.

5. Two color touch screen, one for packing machine, another for 2 heads weighing device.

Close-up photos:

Food grade SUS 304

High-accuracy weighting system

Reliable sealing system

Automatic bags output system

All control in touch screen

Reasonable mechanical structure

1. Basic packer

Main feature:

1. Import PLC computer control system, human-machine screen, easy touch screen operation.

2. With imported servo film transporting system and mark sensor, accurate positioning, perfect packing.

3. Perfect automatic alarm function, to minimize the loss.

4. Combine with metering device, it can finish the process of metering, feeding, filling, bag making, printing.

5. Bag type: can make it with pillow bag and vertical bag according to customer needs.

Technical Specification:

Model

SK-L720

Air Consumption

0.65mpa, 2.5m³/min, 6kg/cm²

Packing Film Width

Max. 720mm

Bag Length

100-500mm

Bag Width

180-350mm

Packing Film Roll Diameter

Max. 360mm

Packing Speed

5-55bags/min

Power Supply

220V, 50/60HZ, 3KW

Machine Size

L1800*W1310*H2050(mm)

Machine Net Weight

750kg

Bag former

Bag former description:

Remarks: our packing machine has included one set of forming tube for one type of bag size. Because the diameter of the tube decides the bag width.so when clients have more bag sizes, They need to buy extra forming tubes for the unique bag width. Bag length can be adjustable.

Example A: clients request 100mm bag width and 150mm bag width. Need 2 sets of bag formers.

2. Two heads screw weighing device

Technical Advantages:

1. Screw weighing is driven by stepper motor drivers to reach the goal of metering and filling material. Have advantage of sensitive operation , quick measuring ,high precision and stable performance. Sanitation with 304 stainless steel construction.

3. Material Conveyor

                        Optional

Technical Advantages:

1. Suitable to transport the materials which is crash

2. Work stable, low noise

3. Adopt the food safety class plastic, to ensure the food safety

4. Dimension could be customize

5. Out side the conveyor will make an cover for it

4. Finished bags conveyor

Technical Advantages:

1. Adopt imported miniature motor and featured with low noise, long life.

2. It can transport finished products to platform, reducing waste during the process.

3. Take the finished products away in time, to make packing machine work more smoothly.

Hopper for ice cube storage and collecting the small pieces ice

Additional device:

1. Date printer (ink ribbon printer)

2. Hole punch option

A. Euro hole:

B. Round hole:

3. Pre-clamp device

 Component list:

SEQUENCE NO.

NAME OF FITTING

COUNTRY OF ORIGIN

BRAND

1

Touch Screen

Taiwan

WEINVIEW

2

PLC

Japan

Mitsubishi

3

Servo Motor including

 Drive

Japan

Panasonic

4

Color Standard Sensor

Electronic Eye

China

Autonics

5

Temperature Control

Meter

China

Yudian

6

Horizontal Sealing Cylinder

Taiwan

Airtac

7

Vertical Sealing with Guide

Bar Cylinder

Taiwan

Airtac

8

Cutter Thin Cylinder

Taiwan

Airtac

9

Push Film Cylinder

Taiwan

Airtac

10

Two Couplet

Taiwan

Airtac

11

Value with Gauge

Taiwan

Airtac

12

Electromagnetic

Valve with Disc

Taiwan

Airtac

13

Inflatable Solenoid

Valves

Taiwan

Airtac

14

Printer

China

XIAMEN TANE

15

Solid State Relays

Germany

Schneider

16

Among The Relay

Japan

IDEC

17

Switching Power

Supply

Taiwan

YANGJI

18

Stop Switch

Japan

IDEC

(Remark: Above is for reference only. Please refer to actual production. )Using smart servo technology
