Self-Stacking Spiral Freezer - 50% More Output, Hygienic Design
Product features
The self-stacking spiral freezer with a hygienic design offers up to 50% more freezing output compared to traditional models. Its self-stacking belt eliminates the need for belt rails, making the conveyors almost 100% accessible for easy cleaning. Featuring an innovative ADF system, automatic cleaning options, and a fully welded floor, this commercial ice maker ensures optimal performance, higher efficiency, and extended equipment life.
We serve
At our core, we serve efficiency and productivity with our Self-Stacking Spiral Freezer. With a 50% increase in output capacity, your business can streamline operations and meet growing demands with ease. Our innovative design not only maximizes production but also prioritizes hygiene, ensuring food safety and quality every step of the way. We serve reliability and peace of mind, knowing that our freezer will consistently deliver exceptional results. Trust in our commitment to serving your needs, so you can focus on what matters most – serving your customers. Choose our Self-Stacking Spiral Freezer and experience the difference we can make for your business.
Why choose us
At our company, we serve by providing top-of-the-line self-stacking spiral freezers that offer 50% more output capacity and a hygienic design. Our products are designed with efficiency and cleanliness in mind, allowing our customers to streamline their production processes and maintain the highest quality standards. With our self-stacking spiral freezers, businesses can increase their output while ensuring that their products are stored and preserved in the most sanitary conditions possible. We are dedicated to serving our customers by delivering reliable and innovative solutions that help them succeed in their operations.

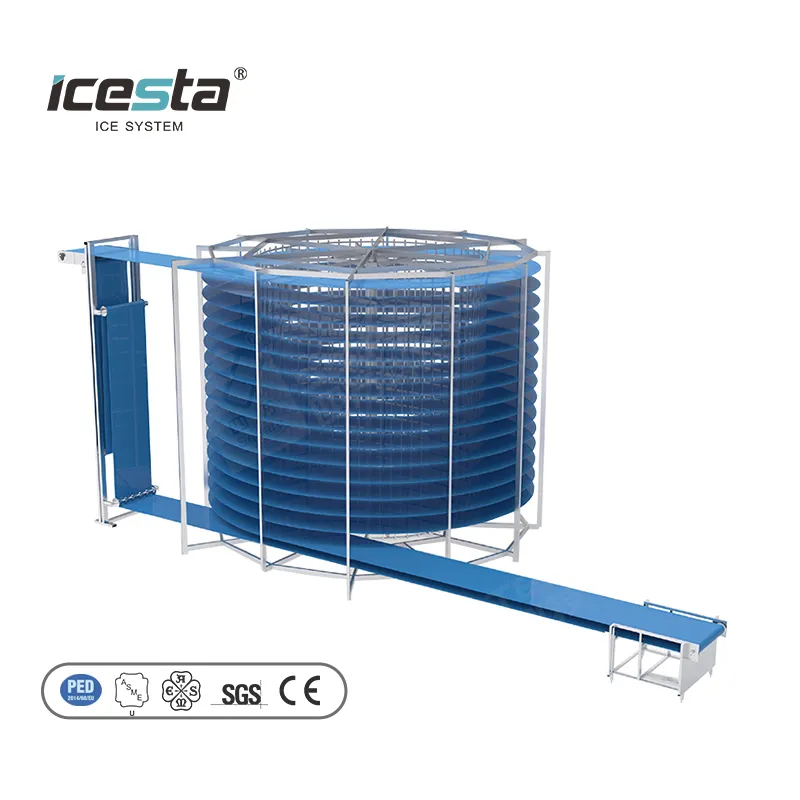

The self-stacking spiral freezer is a compact and hygienic freezer design. Compared to the traditional low tension spiral freezer, the self-stacking spiral freezer eliminates the rails supporting the belt, that means up to 50% more freezing output with the same foot print.The conveyors are almost 100% accessible to cleaning thanks the elimination of the belt rail and drum, The freezer has combined the state-of-the-art clean-in-place (ClP) system. An open, easily cleanable and accessible design optimizes sanitation standards and decreases system downtime for cleaning and maintenance. This feature reduces contamination and extends the life of the equipment by preventing waste buildup and simplifying the cleaning process.
Technical Date
Structure | Self-stacking spiral freezer |
| Drum Diameter | S4, S6, S7, S9, S10 |
| Layers | 6~50 |
| Insulated Enclosure | PIR/PU,SS skin at both sides, fully welded |
| Mesh Belt Width | 420~1370mm |
| Infeed length | 700mm |
| Outfeed length | 600mm |
| Control panel | PLC touch screen, SS panel |
| Refrigerant | Freon, Ammonia, CO₂ |

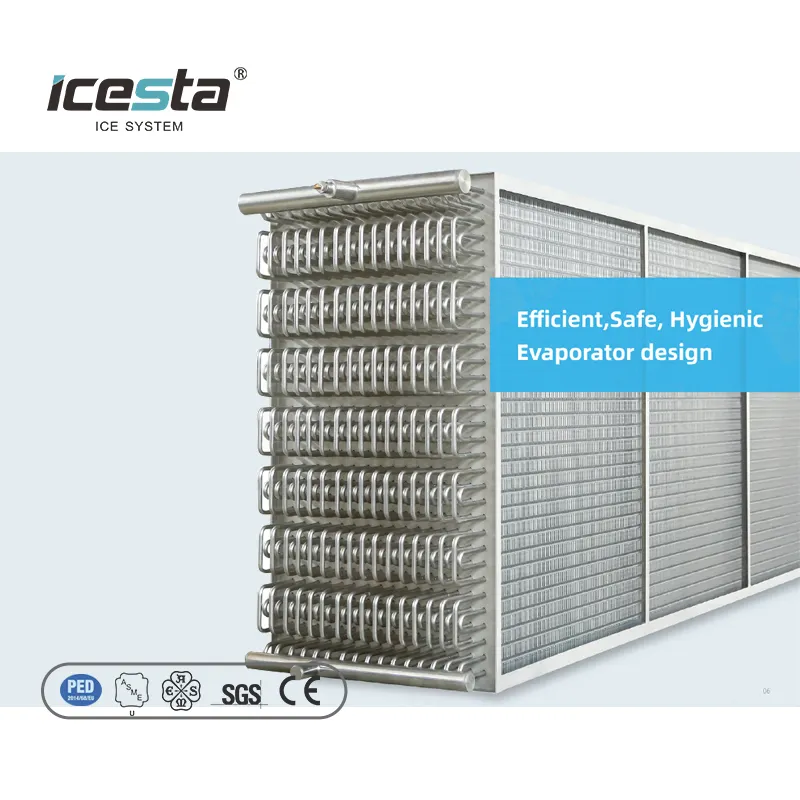

| Evaporator | Al/SS tube, aluminum fin, variable fin pitch |
| Defrost | Water/hot gas/ADF optional |
| Freezing\cooling time | Stepless variable frequency adjustable |
| Cleaning | Manual\ Belt Washer\ ClP |
| Freezing capacity | 300 to 5000kg/h |
Self-Stacking Belt

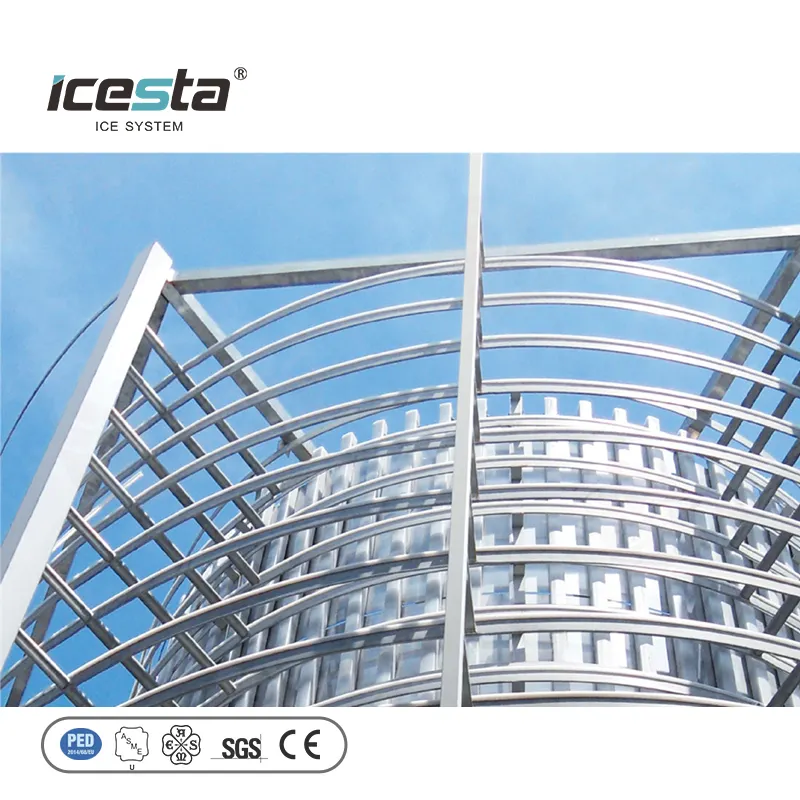

The self-stacking belt is driven by chain system, operates completely on rolling balls. The resistance and noise caused by running chain is reduced, so smaller motors can drive the system. The belt is not in tension in run. The belt is less likely to be stretched and deformed. Self-stacking belt stacks on the top of each other’s side links. This self-stacking feature eliminates the rails supporting the belt.
Self-contained Freezing Zone
The special holes on the side links also introduce cold air into product zone and create turbulence.This provides uniform product temperature across the belt and increases the heat exchanging efficiency
production runtime by 150 to 200% by eliminating frost buildup on the evaporator.
Automatic Cleaning Systems
to choose, including lathering, rinsing, disinfectant spraying, and belt drying.
Fully welded floor
Sloped floor, fast drainage through four drains at the corners. Easy Access.

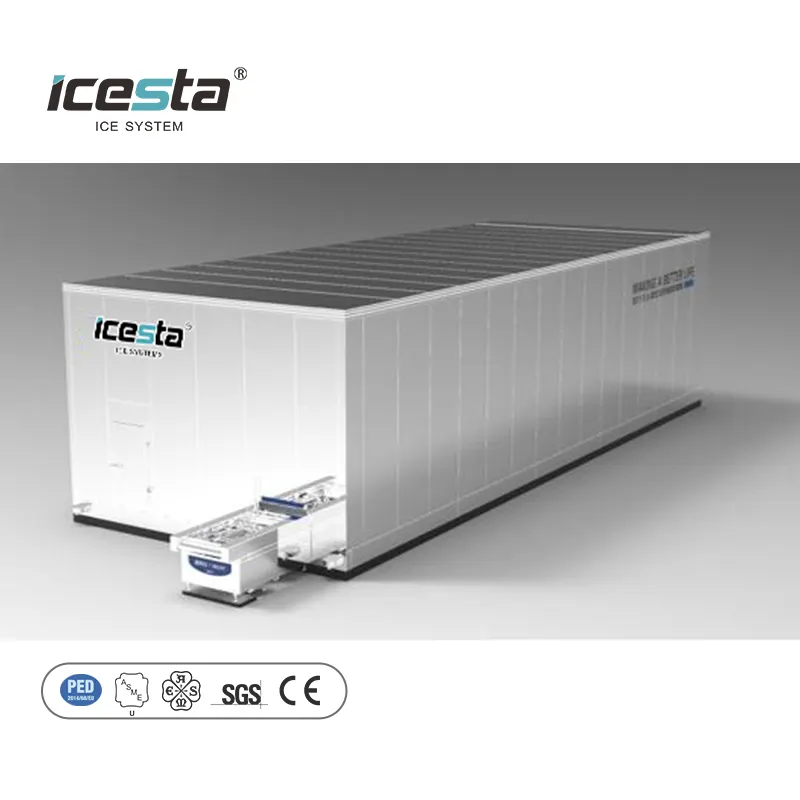

Insulated Enclosure
Fully welded stainless steel enclosure available as option.
Intelligent Control System
Product Hot Sale
