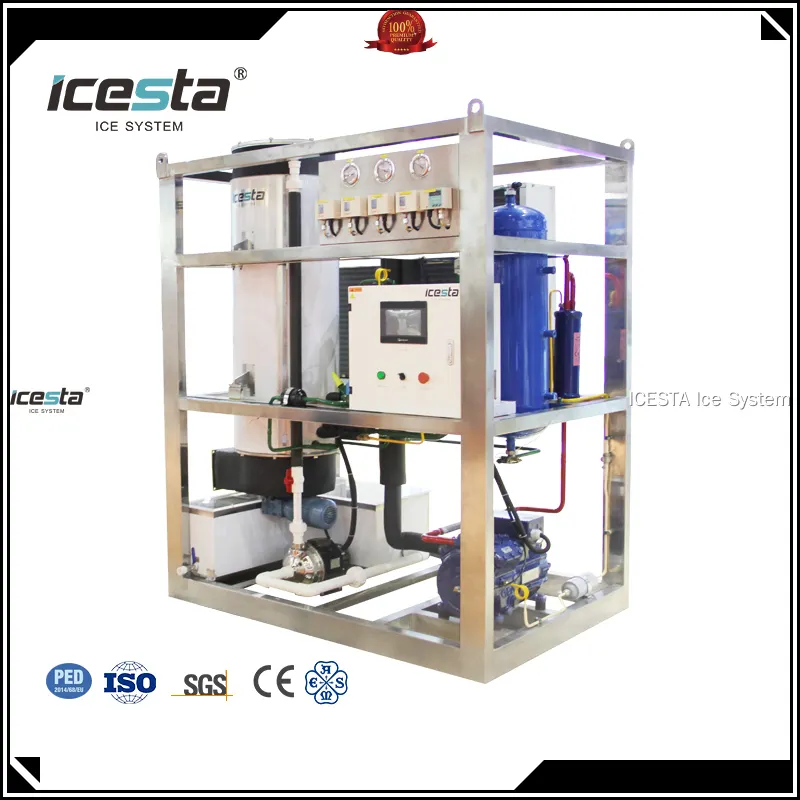

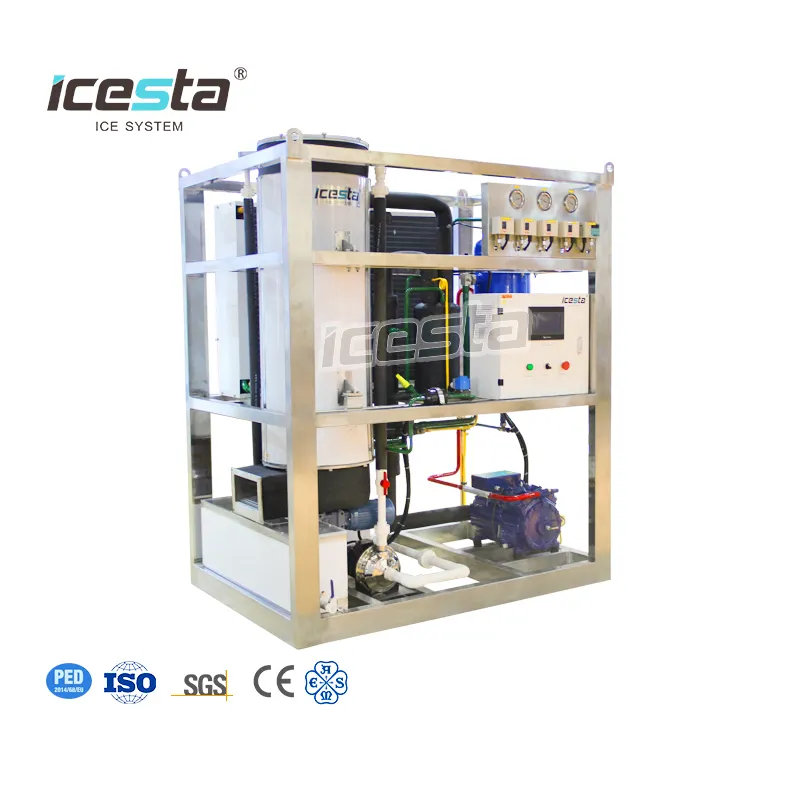

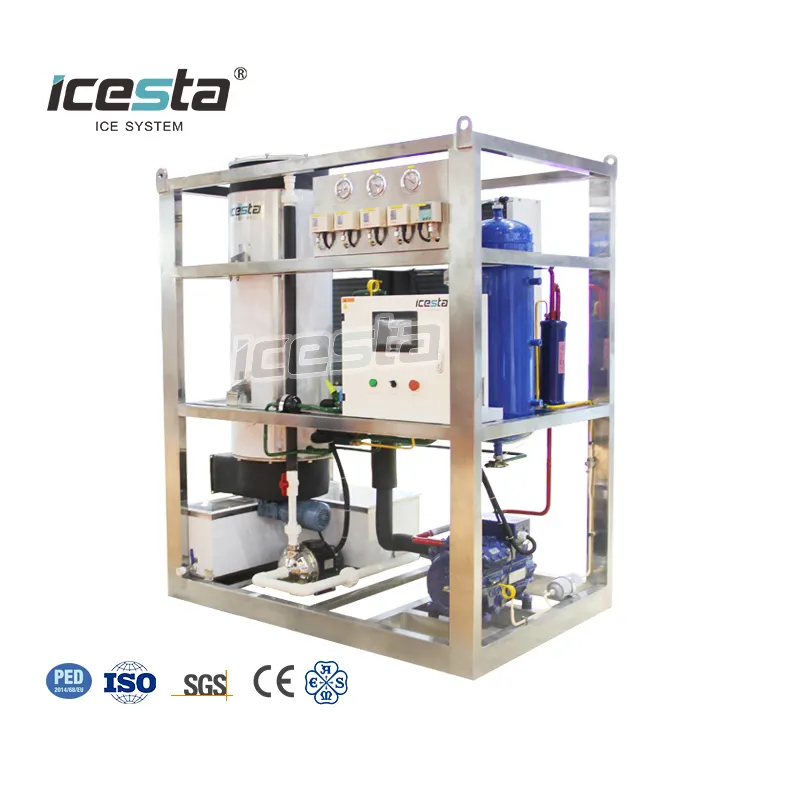

Stainless Steel Tube Ice Maker - High Output and Corrosion Resistance
Product features
The industrial tube ice maker from ICESTA is designed with high ice output and corrosion resistance, making it a reliable and efficient solution for various cooling needs. With a smooth ice stripping surface and an optimized driving structural design, this tube ice maker ensures even and crystal-clear ice production. The innovative H-M interactive intelligent control system with touch-screen allows for easy operation and maintenance, while the customer-oriented design includes auxiliary equipment for optimal industrial application, such as ice packing.
We serve
At our company, we are committed to serving our customers with high-quality products like our Stainless Steel Tube Ice Maker. Designed for high output and corrosion resistance, this machine is perfect for businesses looking to meet their ice production needs efficiently and reliably. With our dedication to customer satisfaction, we guarantee top-notch performance and durability with every purchase. Our team of experts is always on hand to provide exceptional service and support, ensuring that you have a seamless experience from start to finish. Trust us to serve you with excellence, every step of the way.
Enterprise core strength
At our company, we serve with a commitment to excellence in providing top-quality stainless steel tube ice makers. Our products boast high output capabilities, ensuring a constant supply of refreshing ice for any setting. With a focus on corrosion resistance, our tube ice maker is designed to withstand the rigors of daily use in various environments. We serve by prioritizing durability and efficiency, guaranteeing a long-lasting and reliable ice-making solution for commercial and industrial applications. Trust in our commitment to serving you with the best-in-class stainless steel tube ice maker for all your chilling needs.
Product Introduction
ICESTA is providing the world Excellent Tube ice solutions with high ice output, reliable performance and humanization design.
Tube ice is in the shape of crystal and powderless tubes. Comprared with flake ice, the melting time of tube ice is longer, and it is more suitable for cooling in an unisulated environment. Tube ice is comparatively solid and less prone to ice lumps, so it is more suitable for long distance delivery.
Technical Parameters
* The technical data based on 30°Cambient temp.20°Cwater inlet temp.
* The evaporating / condensing temp.:-15C/40°C(Air-coole) 38°C(Water cooled)
* Power supply: 3P/380V/50HZ(3P/220/60HZ,3P/380V/60HZ,3P/460V/60HZ Optional)
* Refrigerant: R404A(R22 R17 R507 is optional)
* Ice tube diameter: Φ22,Φ29,Φ35,Φ42 is optional
1t，2t，3t，5t/24h
| Model | IT1T-R2/4A | IT2T-R2/4A | IT3T-R2/4A | IT5T-R2/4A |
| Ice output | 1t/24hrs | 2t/24hrs | 3t/24hrs | 5t/24hrs |
| Ice tube diameter | Φ29 | Φ29 | Φ29 | Φ29 |
| Cooling Capacity | 7.37kw | 18kw | 24.9kw | 45kw |
| Input power | 4.81kw | 8.56kw | 11.89kw | 20.95kw |
| Compressor input power | 3.66kw | 7.04kw | 9.77kw | 17.3kw |
| Ice cut reducer input power | 0.18kw | 0.37kw | 0.37kw | 0.75kw |
| Water pump input | 0.37kw | 0.55kw | 0.55kw | 1.1kw |
| Ice machine weight | 950KG | 1150KG | 1280KG | 1600KG |
| Ice Machine Diameter | 1600X1100X1970mm | 1700X1200X2200mm | 1800X1200X2220mm | 2000X1400X2500mm |
Application Industry
ICESTA is providing the world Excellent Tube ice solutions with high ice output, reliable performance and humanization design.
Show Details
All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.
01: Water tank above
02: Water inlet
03: Distributive pipe
04: Shell
05: Inside heat exchange pipe
06: Heat exchange
07:Reducer
08: lce cutting framework
09: Water outlet
10: Ice water separation plate
11: Water outlet
12: Ice outlet
13: Water tank below
Show Details
All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.
Drawing Display
The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.
Advantage
ADVANTAGES OF ICESTA TUBE ICE PLANTINNOVATIVE DESIGN FOR GENERATOR
1. Innovative manufacturing artwork has been adopted.The lce stripping surface is smooth as a mirror. That has tremendouslyincreased ice stripping efficiency and energy-efficiency ratio.
2. The ice cutter can be easily dismantled and replaced as a whole.
3. Compared with peers,ICESTA evaporator can form even water membrane more effectively.That makes more even and crystal ice tubes
4. The upper and lower freezing water reservoir is openly structured, which helps a lot withcleaning and disinfection.
5. ICESTA ice plant adopts an optimized driving structural design, which ensures both simplestructure and high reliability.
6. ICESTA customizes a reasonable design of ice plant suitable for convenient containertransportation for oversea clients.
7. Deice just need 130-200s.
PATENTED H-M INTERACTIVE INTELLIGENTCONTROL SYSTEM WITH TOUCH-SCREEN:
1.The working status of the ice system display alive in screen.
2.Setting stop-time at will.
3. All possible failure and trouble-shooting is programmed in.
4.Local time could be set.
3D diagram display of tube ice machine and office building layout plan
Auxiliary Equipment
Optimal industrial application: lce packing
Components:
1.Buffer Storage Bin (ranging from 50OKG to 2000KG)
2.Built-in delivery screw
2.Built-in delivery screw
3.Dual control system (Manual and foot pedal); Foot pedal can start and stop at will, which is nearly a semi automatic packing machine.
PACKAGE UNIT OF TUBE ICE MAKING, DELIVERING, PACKING,ICE BAGS CONVEYING.
Customer-Oriented design.Our consideration and,innovation reach everywhere.
Engineering Case
30ton ice tube machine with ice dispenser (semi-automatic ice packing machine.)/ Philippines.
Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions.
About ICESTA
20 years dedication in ice making technology to create excellence.
Shenzhen Brother Ice System Co., Ltd. ( ICESTA Brand), a well-known ice machine manufacturer and industry leader and pioneer in China.The product covers flake ice /Block ice machine, Tube ice /slurry ice/plate ice/cube ice machines, water
chillers,Plate/spiral/blast freezers, Automatic ice storing & delivery system with integrated container ice system,artificial snow making machine.etc
Experiences & History:
20-Years Team focus on innovative solution in Ice & Cooling technology.
16-Years Professional Manufacturer, Supplier of Excellent Turnkey ice & cooling projects.
Industry status& Reputation:
* TOP 3 of China industrial ice machine Brand with strong capability of R&D
* 20000㎡ Factory
* ISO 9001 , CE, PED, ASME (U.S ) Certificates etc
Technology & Management capability:
* 80+ patents Certificates
* High Technology enterprise Certificate
Services & Global Net:
* Export to 80+ countries
* Local service in 50+ countries with networks all over the world.
* 1-2 years warranty covers each component.
