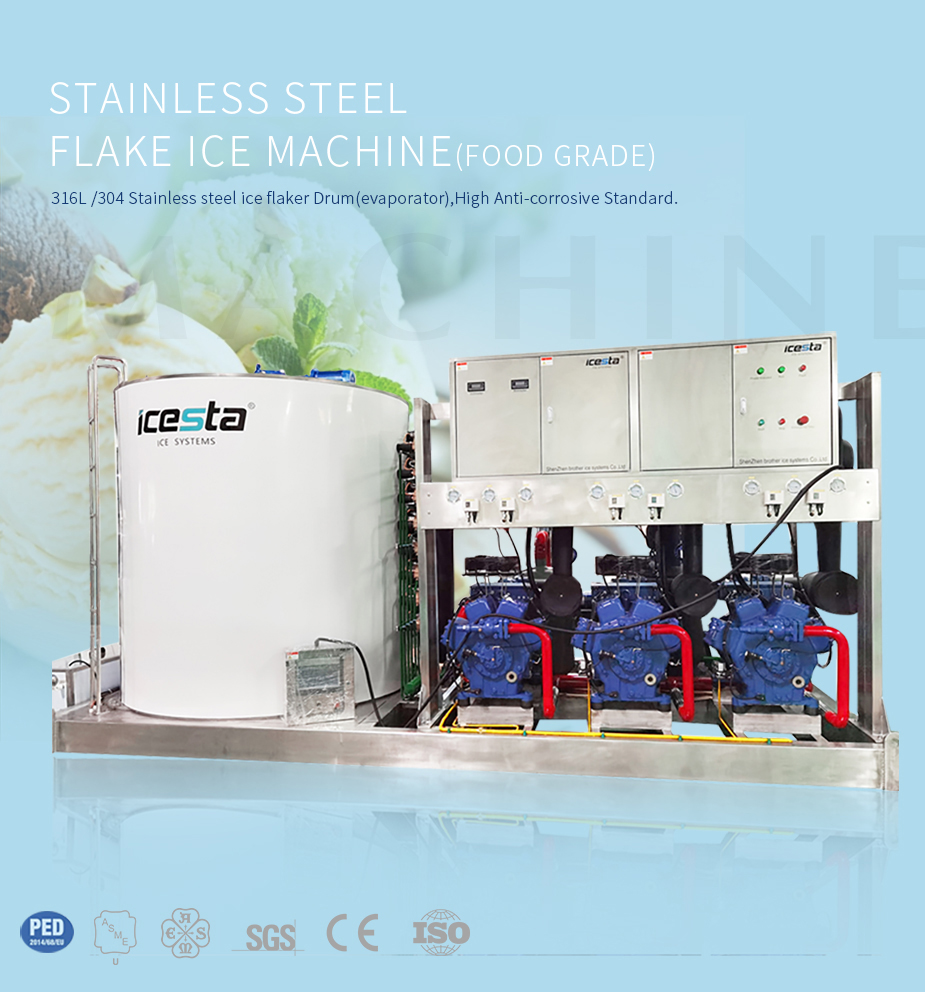

Stainless Steel Flake ice machine, whose freezing surface (in contact with water) of ice making evaporator is made of Stainless Steel Material (SS316L or SS304), is characteristic of high anti-corrosion and anti-rust performance. This feature makes ICESTA ice plant a superb companion for food processing industry which requires high level of hygiene and deep-sea fishing boat etc where only seawater is available for ice making.
· PRODUCT INTRODUCTION

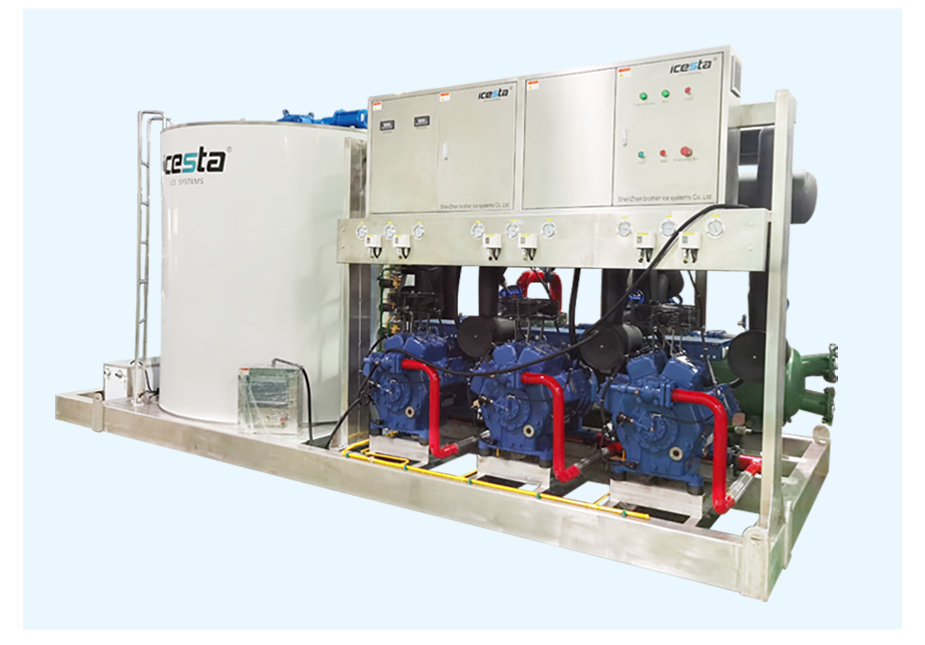

Stainless steel flake ice machines, whose ice making evaporator's freezing surface (in contact with water) is made of stainless steel (SS316L or SS304), are characterized by high corrosion and rust resistance properties. This feature makes ICESTA ice machines the perfect companion for the food processing industry, where high levels of hygiene are required, and for deep-sea fishing vessels, where only seawater can be used for ice production, etc.
· APPLICATION INDUSTRY
More and more Cooling or temp.Reduction industry used the ice machines to meet their higher technic request due to their deeper knowledge about this equpment.
· TECHNICAL PARAMETERS
*The technical data based on 25°C ambient temp.20°C water inlet temp
* Power supply：3P/380V/50HZ，3P/220V/60HZ，3P/380V/60HZ，3P/460V/60HZ Optional
* The ice thickness：1.6-2.3mm
* Refrigerant: R404A(R22 R17 R507 is optional)
15t，20t，25t，30t/24h
| Model | IFF/A15T-R4A | IFF/A20T-R4A | IFF/A25T-R4A | IFF/A30T-R4A |
| Ice production | 15t/24h | 20t/24hrs | 25t/24hrs | 30t/24hrs |
| Cooling capacity | 94.4kw | 143.1kw | 160kw | 188.8kw |
| Evaporation temperature | -25°C | -25°C | -25°C | -25°C |
| Condensing temperature | 40°C | 40°C | 40°C | 40°C |
| Input total power | 64.77kw | 96.96kw | 110.6kw | 129.8kw |
| Compressor power | 55.4kw | 83.1kw | 93.6kw | 110.8kw |
| Pump power | 0.75kw | 0.75kw | 1.5kw | 1.5kw |
| Reducer power | 0.37kw | 0.75kw | 1.1kw | 1.1kw |
| Condenser fan power | 8.25kw | 12.36kw | 14.4kw | 16.48kw |
| Unit size | 3100*1950*2410mm | 4000*2100*2200mm | 4600*2100*2450mm | 5600*2100*2450mm |
| Weight | 3480KG | 4450KG | 5200kg | 6300KG |
· SHOW DETAILS
ADVANTAGES / SPECIAL DESIGN FOR ice flaker on board use
Material of evaporator:
External surface: Glass fiber steel (never getting rust)
Inner surface : 316L Stainless steel
(High reliability for anti-corrosion even feeding seawater for ice making)
Supporting base: 304 Stainless steel
Top/bottom cover of ice flake evaporator : 304 Stainless steel
· Material of Stainless Steel ice flake machine
All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.
· DRAWING DISPLAY
The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.
3D drawings
· ADVANTAGE
Advantages of ICESTA flake ice machine
1.Rigorous pick-up of raw material. Not every kind of Stainless Steel is the same in terms quality on the market. When we choose stainless steel, we use the material of high quality with Qualified Material Certificate only.
2.Compared to Carbon Steel, stainless steel evaporator and top/bottom covers requires a high criterion in the processes of welding, machining and Annealing. Coarse machining may make the machine prone to deformation and short life time. ICESTA fine and meticulous craftsmanship and innovative design makes our stainless steel evaporator endure.
3.Diversified choice. ICESTA provides customer oriented designs in accordance with machining artwork, working conditions and water quality, in an attempt to offer performance stability and ice use satisfaction as well as cost effectiveness.
Intellectualized PLC controller with touch-screen
· All failure record & instant solution available
· Stop-time setting at will.
· different languages version
Elaborate details design gives all-sided convenience
· Prominent Heat treatment to avoid any SRINKAG
· TOP welding testing technics with X-RAY——Never leak
· Sufficient ice output
PICTURE DISPLAY
Technology, change the world, innovate, and subvert tradition. We are committed to making people's production and life more convenient, efficient and beautiful
Engineering case
30T flake Ice Plant & 50T Auto Storage,
Humpty Doo Baramundi Australia
