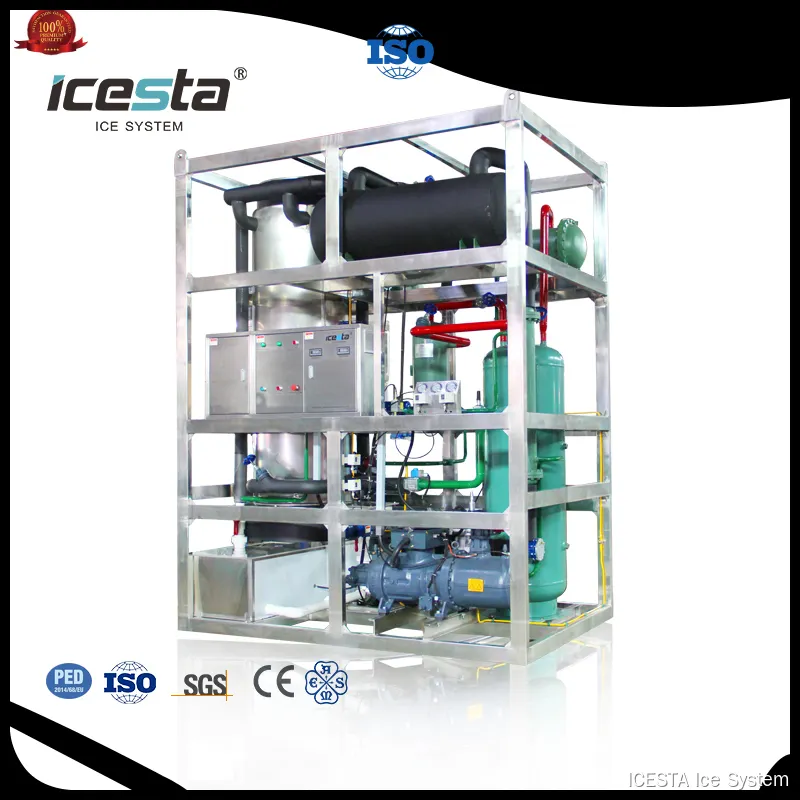

High Output Tube Ice Making Machine - Customizable Sizes, Excellent Performance

Product Introduction

ICESTA is providing the world Excellent Tube ice solutions with high ice output, reliable performance and humanization design.

Tube ice is in the shape of crystal and powderless tubes. Comprared with flake ice, the melting time of tube ice is longer, and it is more suitable for cooling in an unisulated environment. Tube ice is comparatively solid and less prone to ice lumps, so it is more suitable for long distance delivery.

Application Industry

The main material of Brother Ice System  is an elastomer. The elastomer material has been strictly selected before it goes into the factory.

Technical Parameters

* The technical data based on 30°Cambient temp.20°Cwater inlet temp.
* The evaporating / condensing temp.:-15C/40°C(Air-coole) 38°C(Water cooled)
* Power supply: 3P/380V/50HZ(3P/220/60HZ,3P/380V/60HZ,3P/460V/60HZ Optional)
* Refrigerant: R404A(R22 R17 R507 is optional)
* Ice tube diameter: Φ22,Φ29,Φ35,Φ42 is optional

Drawing Display

The ICESTA team has used more than 20 years of experience in refrigeration and ice making to continuously innovate products to achieve higher efficiency, more stable operation, smoother ice removal and ice production.

3D diagram display of tube ice machine and office building layout plan

Advantage

ADVANTAGES OF ICESTA TUBE ICE PLANTINNOVATIVE DESIGN FOR GENERATOR

1. Innovative manufacturing artwork has been adopted.The lce stripping surface is smooth as a mirror. That has
   tremendously increased ice stripping efficiency and energy-efficiency ratio.
   2. The ice cutter can be easily dismantled and replaced as a whole.
   3. Compared with peers,ICESTA evaporator can form even water membrane more effectively.That makes more even and crystal ice tubes
   4. The upper and lower freezing water reservoir is openly structured, which helps a lot with cleaning and disinfection.
   5. ICESTA ice plant adopts an optimized driving structural design, which ensures both simple structure and high reliability.
   6. ICESTA customizes a reasonable design of ice plant suitable for convenient container transportation for oversea clients.
   7. Deice just need 120-200s.

2.

PATENTED H-M INTERACTIVE INTELLIGENTCONTROL SYSTEM WITH TOUCH-SCREEN:

1. The working status of the ice system display alive in screen.
   2.Setting stop-time at will.
   3. All possible failure and trouble-shooting is programmed in.
   4.Local time could be set.

2.


Show Details

All great works are moving in countless details, and every high-quality ice machine is precisely carved out of the details.

Picture Display

Technology, change the world, innovate, and subvert tradition. We are committed to makingpeople's productjon and life more corenient, efficient and beautiful

Auxiliary Equipment

Optimal industrial application: lce packing
Components:
1.Buffer Storage Bin (ranging from 50OKG to 2000KG)
2.Built-in delivery screw
3.Dual control system (Manual and foot pedal); Foot pedal can start and stop at will, which is nearly a semi automatic packing machine.

PACKAGE UNIT OF TUBE ICE MAKING, DELIVERING, PACKING,ICE BAGS CONVEYING.

Customer-Oriented design.Our consideration and,innovation reach everywhere.

Engineering Case

Since 2007, ICESTA products have been sold to more than 80 countries around the world, and provide distributor services in many regions.
